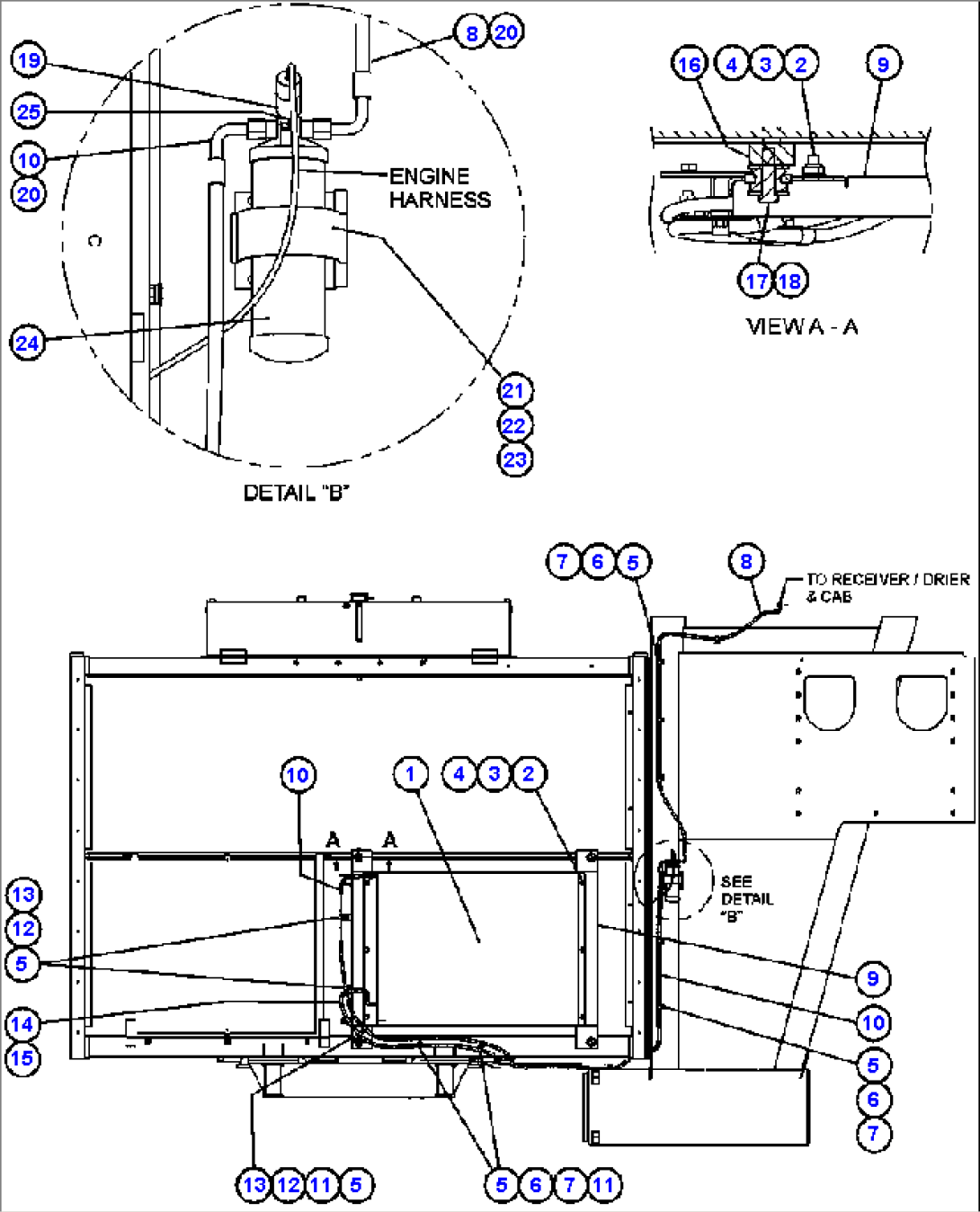

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB9510 | CONDENSER | ||
| 2 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 3 | WA4728 | FLAT WASHER - 1/2" | ||
| 4 | DF3500 | NUT, LOCK - 1/2" - 13NC | ||
| 5 | VN9907 | CLAMP | ||
| 6 | MM0461 | FLAT WASHER - M10 | ||
| 7 | MM0178 | NUT - M10 X 1.50 | ||
| 8 | HA7876 | HOSE - TO CAB OUTLET | ||
| 9 | EH7701 | MOUNT, CONDENSER | ||
| 10 | HA7877 | HOSE - FROM CONDENSER | ||
| 11 | TF6925 | CLAMP | ||
| 12 | DC7524 | CAPSCREW - 3/8" - 16NC X 7/8" | ||
| 13 | TR4436 | FLAT WASHER - 3/8" | ||
| 14 | HA7675 | HOSE | ||
| 15 | WA1732 | O-RING | ||
| 16 | VY9850 | MOUNT, RUBBER | ||
| 17 | C1616 | CAPSCREW - 1/2" - 13NC X 2" | ||
| 18 | DA0557 | WASHER | ||
| 19 | PB7620 | SWITCH, PRESSURE | ||
| 20 | WA1731 | O-RING | ||
| 21 | PC1341 | BRACKET, DRIER | ||
| 22 | MM0027 | CAPSCREW - M6 X 1.00 X 25 | ||
| 23 | MM0459 | FLAT WASHER - M6 | ||
| 24 | PB8689 | DRIER, RECEIVER | ||
| 25 | PB7619 | ADAPTOR |
