| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6205-11-4260 | CONNECTOR, AIR | 502066- | |
| 2 | 6732-11-1930 | PLUG | 502066- | |
| 3 | 6204-11-4850 | GASKET | 502066- | |
| 4 | 01435-01070 | BOLT | 502066- | |
| 5 | 6131-11-4370 | HOSE | 502066- | |
| 6 | 07281-00709 | CLAMP | 502066- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa80 6 s/n h60051 up
- Y0 service kit and component parts
- Air crossover connection
Поиск по каталогу

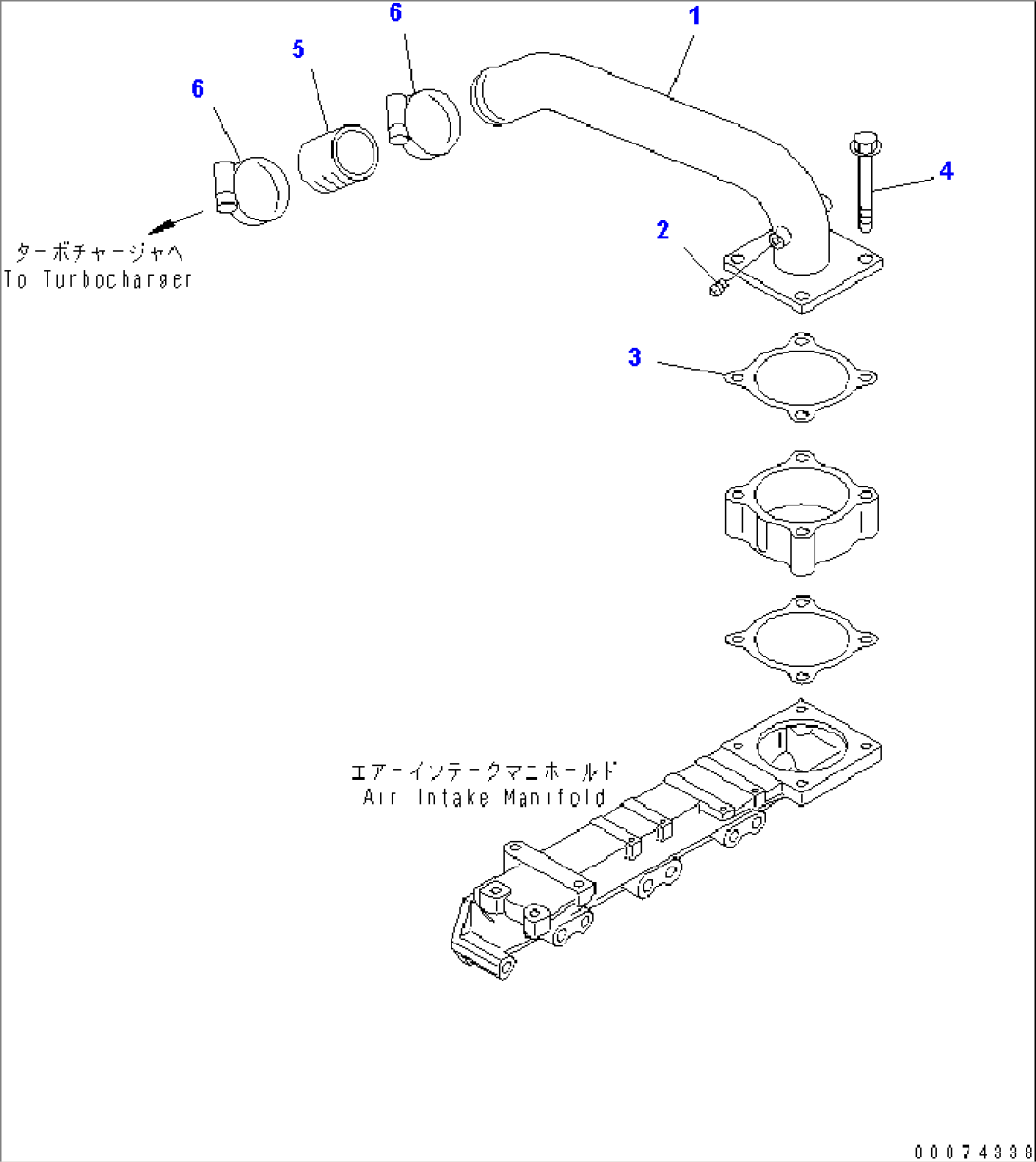

AIR CROSSOVER CONNECTION
