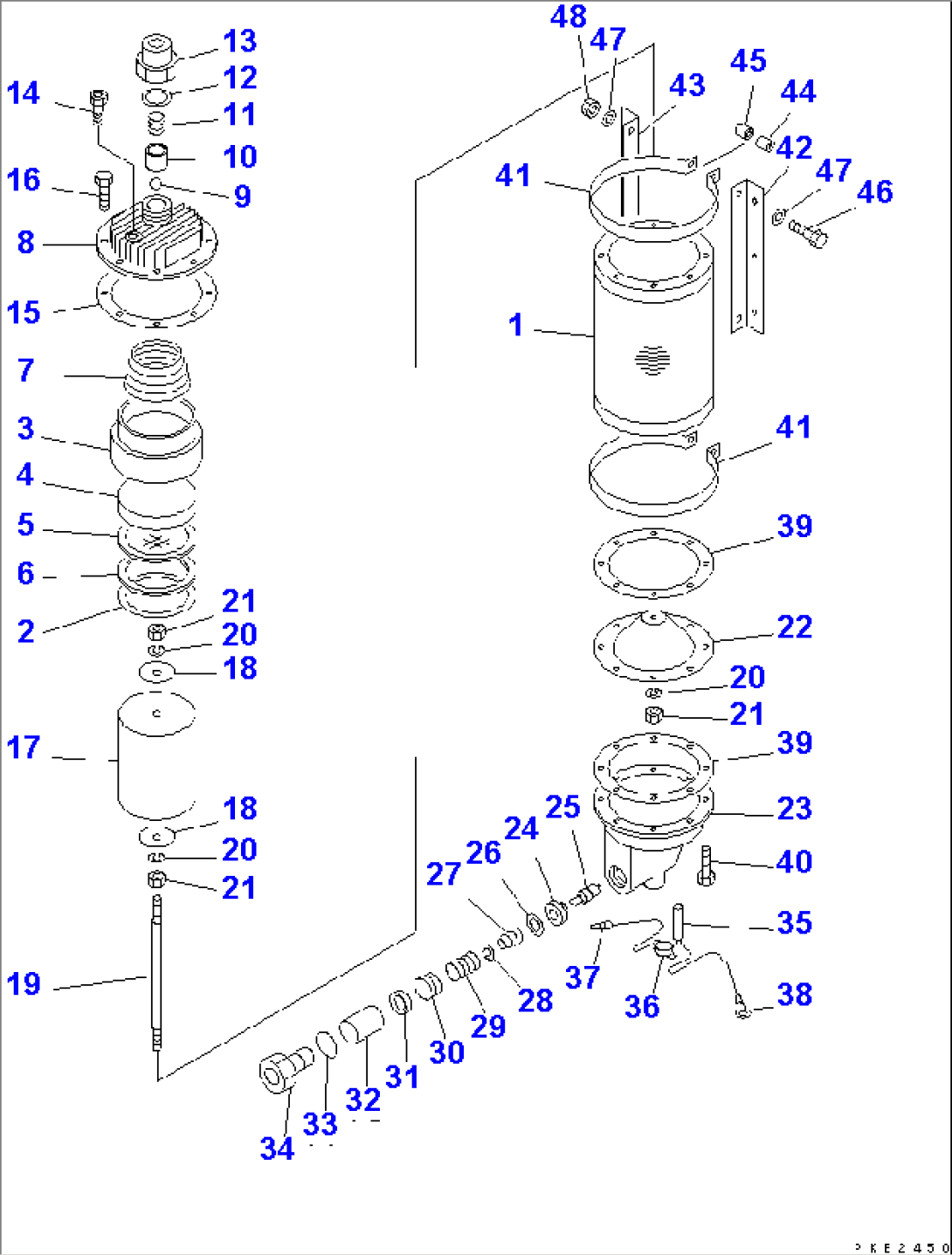

| Item | Part No. | Part Name | Qty | Serial No. |
| 41E-35-11680 | AIR DRYER ASS'Y | 10001- | ||
| 1 | 41E-35-11990 | BODY | 10001- | |
| 2 | 581-35-19520 | RING,PACKING (K12) | 10001- | |
| 581-35-09940 | SERVICE KIT,FILTER CAP | 10001- | ||
| 3 | \6\ | CUP,FILTER | 10001- | |
| 4 | \6\ | FILLER,STAINLESS STEEL | 10001- | |
| 5 | \6\ | STRAINER | 10001- | |
| 6 | \6\ | SPRING | 10001- | |
| 7 | 41E-35-11940 | SPRING | 10001- | |
| 8 | 41E-35-11930 | CAP,TOP | 10001- | |
| 9 | 41E-35-11950 | BALL | 10001- | |
| 10 | 41E-35-11960 | SPINDLE | 10001- | |
| 11 | 41E-35-11970 | SPRING | 10001- | |
| 12 | 41E-35-11920 | GASKET | 10001- | |
| 13 | 41E-35-11910 | NUT | 10001- | |
| 14 | 581-35-19830 | VALVE,SAFETY | 10001- | |
| 15 | 581-35-19510 | GASKET (K12) | 10001- | |
| 16 | 02010-70625 | BOLT | 10001- | |
| 41E-35-09910 | DEFLECTOR ASS'Y | 10001- | ||
| 17 | 41E-35-11770 | DEFLECTOR | 10001- | |
| 18 | 581-35-19890 | WASHER | 10001- | |
| 19 | 41E-35-11760 | ROD,SUPPORT | 10001- | |
| 20 | 01602-20929 | WASHER,SPRING | 10001- | |
| 21 | 02205-10609 | NUT | 10001- | |
| 22 | 581-35-19670 | PLATE,SUPPORT | 10001- | |
| 23 | 41E-35-11980 | CAP,BOTTOM | 10001- | |
| 581-35-09910 | SERVICE KIT,VALVE | 10001- | ||
| 24 | 581-35-19610 | RING,SEAT (K12) | 10001- | |
| 25 | 581-35-19620 | SPINDLE (K12) | 10001- | |
| 26 | 581-35-19630 | GASKET (K12) | 10001- | |
| 27 | 581-35-19590 | SPRING (K12) | 10001- | |
| 28 | 581-35-19580 | RING,RETAINING (K12) | 10001- | |
| 29 | 581-35-19570 | SPRING (K12) | 10001- | |
| 30 | 581-35-19540 | PISTON (K12) | 10001- | |
| 31 | 581-35-19560 | U-CUP (K12) | 10001- | |
| 32 | 581-35-19530 | SLEEVE (K12) | 10001- | |
| 33 | 581-35-19550 | O-RING (K12) | 10001- | |
| 34 | \6\ | NUT | 10001- | |
| 581-35-09920 | SERVICE KIT,HEATER | 10001- | ||
| 35 | 581-35-19820 | HEATER | 10001- | |
| 36 | 581-35-19810 | THERMOSTAT | 10001- | |
| 37 | 08021-00400 | CONNECTOR | 10001- | |
| 38 | 08031-10210 | TERMINAL | 10001- | |
| 39 | 581-35-19510 | GASKET (K12) | 10001- | |
| 40 | 02100-10632 | BOLT | 10001- | |
| 41 | 41E-35-11870 | STRAP | 10001- | |
| 42 | 41E-35-11880 | ANGLE | 10001- | |
| 43 | 41E-35-11890 | ANGLE | 10001- | |
| 44 | 195-01-14540 | COLLAR | 10001- | |
| 45 | 175-79-83760 | SPACER | 10001- | |
| 46 | 01010-81075 | BOLT | 10001- | |
| 47 | 01643-31032 | WASHER | 10001- | |
| 48 | 01580-11008 | NUT | 10001- |
