| Item | Part No. | Part Name | Qty | Serial No. |

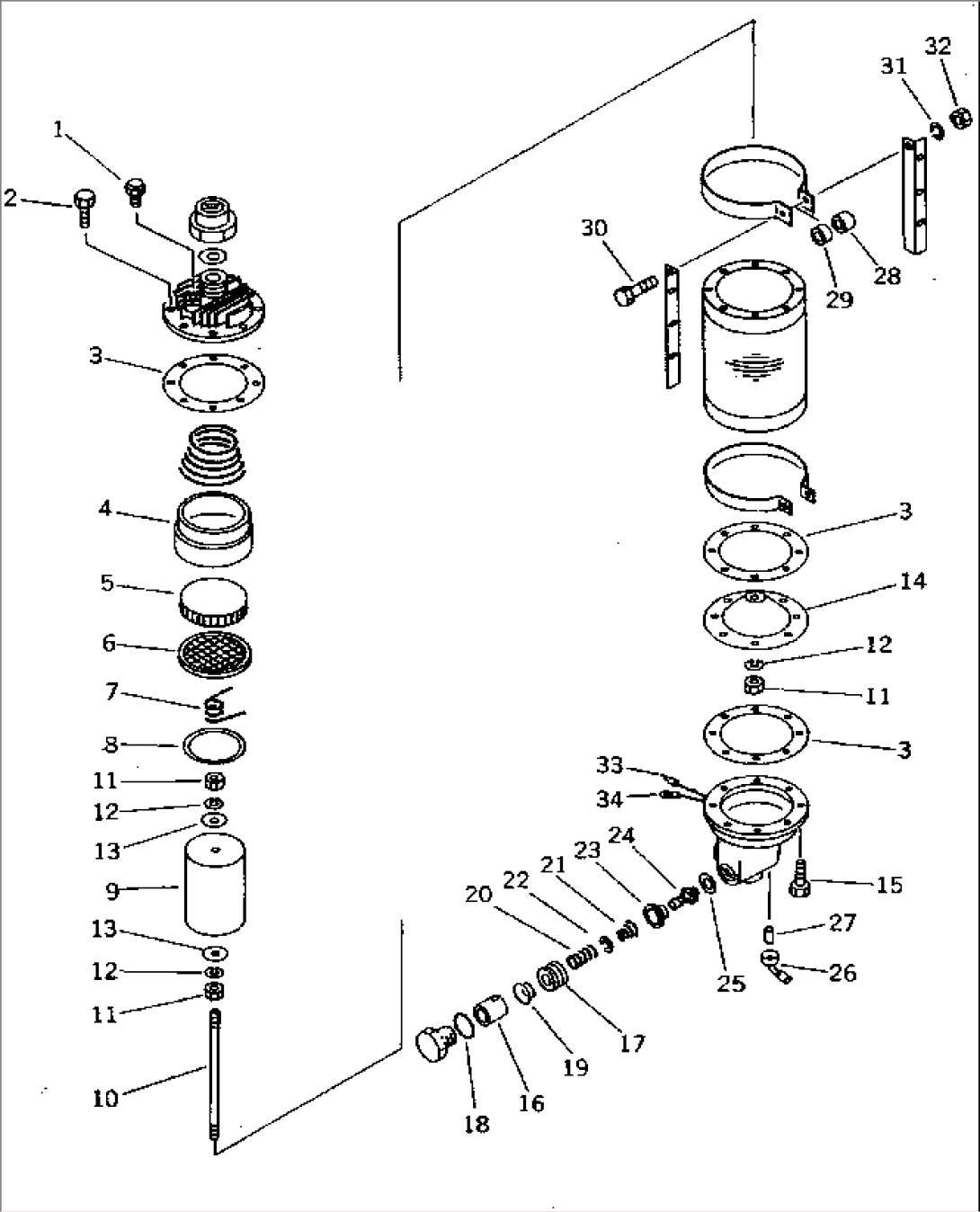

| 41E-35-11680 | AIR DRYER ASS'Y | 1001-1200 | ||
| 1 | 581-35-19830 | VALVE,SAFETY | 1001-1200 | |
| 2 | 02010-70625 | BOLT | 1001-1200 | |
| 3 | 581-35-19510 | GASKET | 1001-1200 | |
| 4 | \6\ | CUP,FILTER | 1001-1200 | |
| 5 | \6\ | FILLER,STEEL | 1001-1200 | |
| 6 | \6\ | STRAINER | 1001-1200 | |
| 7 | \6\ | SPRING | 1001-1200 | |
| 8 | 581-35-19520 | RING,SEAL | 1001-1200 | |
| 9 | \6\ | DEFLECTOR | 1001-1200 | |
| 10 | \6\ | ROD,SUPPORT | 1001-1200 | |
| 11 | 02205-10609 | NUT | 1001-1200 | |
| 12 | 01602-20929 | WASHER,SPRING | 1001-1200 | |
| 13 | \6\ | WASHER | 1001-1200 | |
| 14 | \6\ | PLATE,SUPPORT | 1001-1200 | |
| 15 | 02100-10632 | BOLT | 1001-1200 | |
| 16 | \6\ | SLEEVE | 1001-1200 | |
| 17 | \6\ | PISTON | 1001-1200 | |
| 18 | \6\ | O-RING | 1001-1200 | |
| 19 | \6\ | U-CUP | 1001-1200 | |
| 20 | \6\ | SPRING | 1001-1200 | |
| 21 | \6\ | SPRING | 1001-1200 | |
| 22 | \6\ | RING,RETAINER | 1001-1200 | |
| 23 | \6\ | RING,SEAT | 1001-1200 | |
| 24 | \6\ | SPINDLE | 1001-1200 | |
| 25 | \6\ | GASKET | 1001-1200 | |
| 26 | \6\ | THERMOSTAT | 1001-1200 | |
| 27 | \6\ | HEATER | 1001-1200 | |
| 28 | \6\ | SPACER | 1001-1200 | |
| 29 | \6\ | COLLAR | 1001-1200 | |
| 30 | 01010-51075 | BOLT | 1001-1200 | |
| 31 | 01643-31032 | WASHER | 1001-1200 | |
| 32 | 01580-11008 | NUT | 1001-1200 | |
| 33 | 08021-00400 | CONNECTOR | 1001-1200 | |
| 34 | 08031-10210 | TERMINAL | 1001-1200 |
