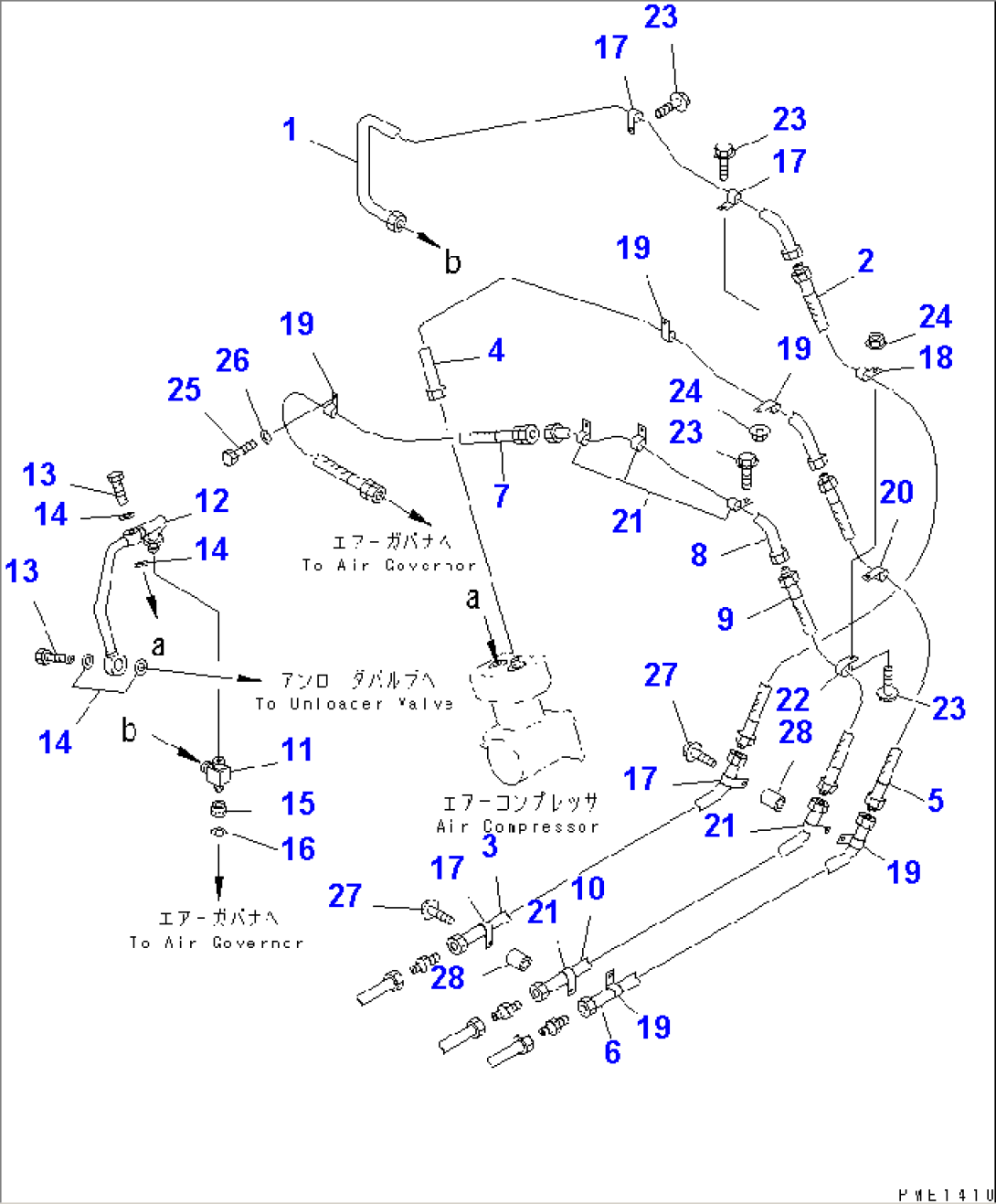

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-W90-1110 | TUBE | 10001-10059 | |
| 2 | 421-35-14330 | HOSE | 10001-@ | |
| 3 | 428-W90-1121 | TUBE | 10001-@ | |
| 4 | 428-35-11112 | TUBE | 10001-@ | |
| 5 | 421-35-14110 | HOSE | 10001-@ | |
| 6 | 428-35-11830 | TUBE | 10001-@ | |
| 7 | 07102-20206 | HOSE | 10001-10059 | |
| 8 | 428-35-11163 | TUBE | 10001-@ | |
| 9 | 421-35-14120 | HOSE | 10001-@ | |
| 10 | 428-35-11840 | TUBE | 10001-@ | |
| 11 | 426-W90-1220 | TEE | 10001-10059 | |
| 12 | 41E-W90-1121 | TUBE | 10001-10059 | |
| 13 | 07206-31014 | BOLT | 10001-10059 | |
| 14 | 07005-01412 | GASKET | 10001-10059 | |
| 15 | 426-W90-1210 | NUT | 10001-10059 | |
| 16 | 07003-11217 | GASKET | 10001-10059 | |
| 17 | 04434-51010 | CLIP | 10001-@ | |
| 18 | 04434-51708 | CLIP | 10001-@ | |
| 19 | 04434-51510 | CLIP | 10001-@ | |
| 20 | 424-06-12760 | CLIP | 10001-@ | |
| 21 | 04434-50610 | CLIP | 10001-@ | |
| 22 | 424-06-12730 | CLIP | 10001-@ | |
| 23 | 01435-01020 | BOLT | 10001-@ | |
| 24 | 01584-01008 | NUT | 10001-@ | |
| 25 | 01010-81016 | BOLT | 10001-@ | |
| 26 | 01643-31032 | WASHER | 10001-@ | |
| 27 | 01435-01045 | BOLT | 10001-@ | |
| 28 | 419-15-17541 | SPACER | 10001-@ |
