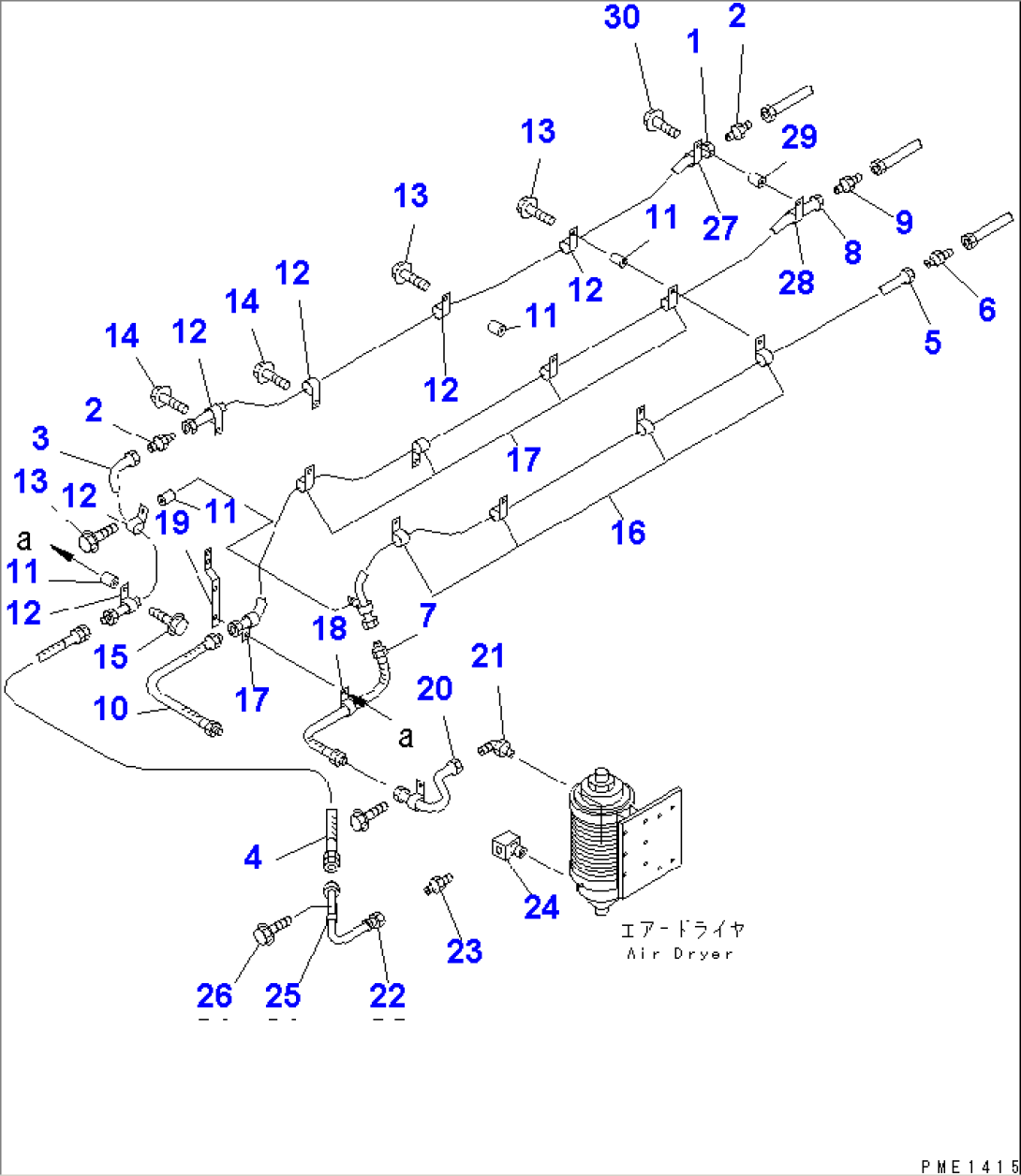

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-W90-1132 | TUBE | 10112- | |
| 2 | 421-09-12420 | UNION | 10001- | |
| 3 | 428-W90-1180 | TUBE | 10001- | |
| 4 | 07102-20203 | HOSE | 10001- | |
| 5 | 428-35-11142 | TUBE | 10001- | |
| 6 | 421-09-12830 | CONNECTOR | 10001- | |
| 7 | 421-35-14110 | HOSE | 10001- | |
| 8 | 428-35-11184 | TUBE | 10112- | |
| 9 | 23S-44-25470 | JOINT | 10001- | |
| 10 | 428-35-11760 | HOSE | 10001- | |
| 11 | 419-15-17541 | SPACER | 10001- | |
| 12 | 04434-51010 | CLIP | 10001- | |
| 13 | 01435-01045 | BOLT | 10001- | |
| 14 | 01435-01020 | BOLT | 10001- | |
| 15 | 01435-01050 | BOLT | 10001- | |
| 16 | 04434-51510 | CLIP | 10001- | |
| 17 | 04434-50610 | CLIP | 10001- | |
| 18 | 04434-52210 | CLIP | 10001- | |
| 19 | 428-35-11152 | BRACKET | 10001- | |
| 20 | 428-W90-1140 | TUBE | 10001- | |
| 21 | 281-01-17480 | ELBOW | 10001- | |
| 22 | 428-W90-1150 | TUBE | 10001- | |
| 23 | 418-878-1480 | NIPPLE | 10001- | |
| 24 | 565-43-14640 | NIPPLE | 10001- | |
| 25 | 04434-51010 | CLIP | 10001- | |
| 26 | 01435-01016 | BOLT | 10001- | |
| 27 | 04434-51010 | CLIP | 10112- | |
| 28 | 04434-50610 | CLIP | 10112- | |
| 29 | 419-15-17541 | SPACER | 10112- | |
| 30 | 01435-01045 | BOLT | 10112- |
