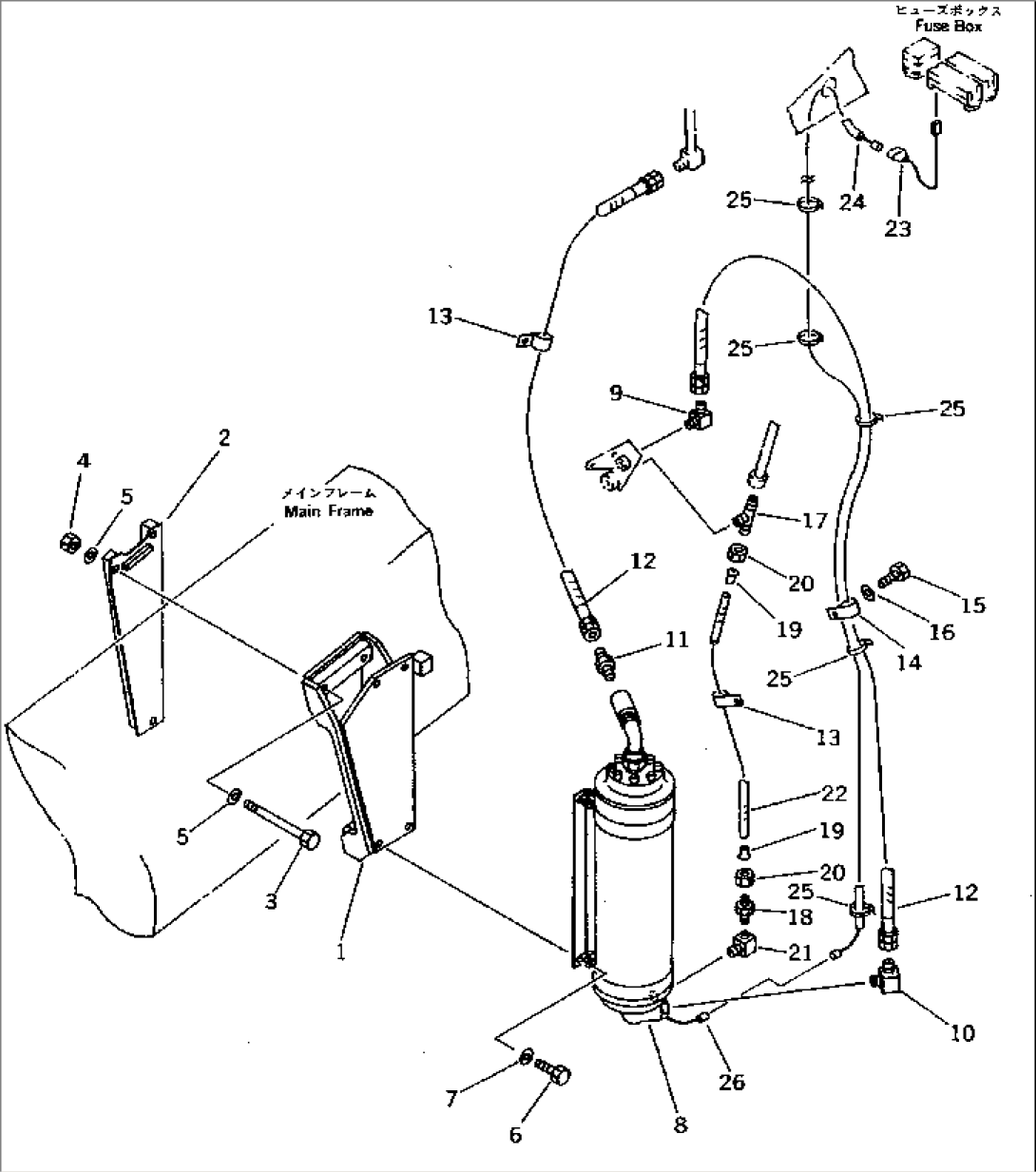

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-87-64110 | BRACKET | 1001- | |
| 2 | 561-87-64120 | BRACKET | 1001- | |
| 3 | 17M-49-11320 | BOLT | 1001- | |
| 4 | 01580-11210 | NUT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 01010-51025 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | (581-35-19902) | AIR DRYER ASS'Y,(SEE FIG.4881) | 1001- | |
| 9 | 568-87-12140 | ELBOW | 1001- | |
| 10 | 581-35-14430 | ELBOW | 1001- | |
| 11 | 281-35-13190 | NIPPLE | 1001- | |
| 12 | 561-87-64130 | HOSE ASS'Y | 1001- | |
| 13 | 08035-02510 | CLIP | 1001- | |
| 14 | 08036-20814 | CLIP | 1001- | |
| 15 | 01010-51020 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 07835-00413 | TEE | 1001- | |
| 18 | 07836-00413 | CONNECTOR | 1001- | |
| 19 | 07831-00411 | SLEEVE | 1001- | |
| 20 | 07832-00410 | NUT | 1001- | |
| 21 | 565-43-14640 | NIPPLE | 1001- | |
| 22 | 07822-00414 | TUBE | 1001- | |
| 23 | 561-87-64150 | CABLE,(EXCEPT JAPAN) | 1001- | |
| 24 | 283-86-11120 | CABLE | 1001- | |
| 25 | 08034-00519 | BAND | 1001- | |
| 26 | 08021-00400 | CONNECTOR | 1001- |
