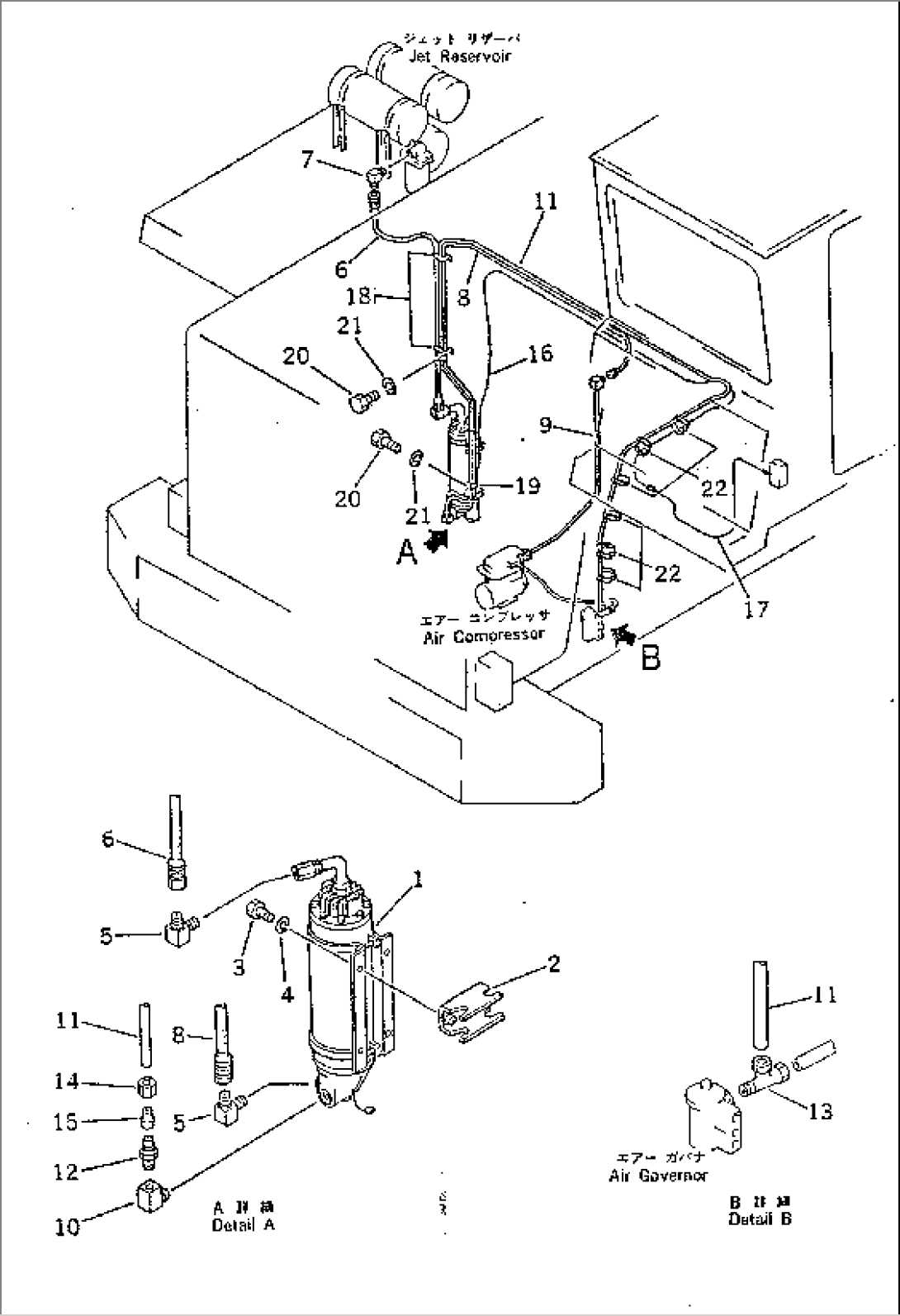

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-87-12150 | COOLER ASS'Y | 1109- | |
| 2 | 581-35-16271 | BRACKET | 1109- | |
| 3 | 01010-51025 | BOLT | 1109- | |
| 4 | 01602-21030 | WASHER | 1109- | |
| 5 | 581-35-16290 | ELBOW | 1109- | |
| 6 | 582-35-19310 | HOSE | 1109- | |
| 7 | 568-87-12140 | ELBOW | 1109- | |
| 8 | 568-87-12120 | HOSE | 1109- | |
| 9 | 568-87-12110 | TUBE | 1109- | |
| 10 | 565-43-14640 | NIPPLE | 1109- | |
| 11 | 07822-00453 | TUBE | 1109- | |
| 12 | 07836-00413 | CONNECTOR | 1109- | |
| 13 | 281-35-19530 | TEE | 1109- | |
| 14 | 07832-00410 | NUT | 1109- | |
| 15 | 07831-00411 | SLEEVE | 1109- | |
| 16 | 568-87-12130 | CABLE | 1109- | |
| 17 | 581-06-11840 | CABLE | 1109- | |
| 18 | 502-06-92710 | CLIP | 1109- | |
| 19 | 560-14-19720 | CLIP | 1109- | |
| 20 | 01010-51020 | BOLT | 1109- | |
| 21 | 01602-21030 | WASHER | 1109- | |
| 22 | 08034-00519 | BAND | 1109- |
