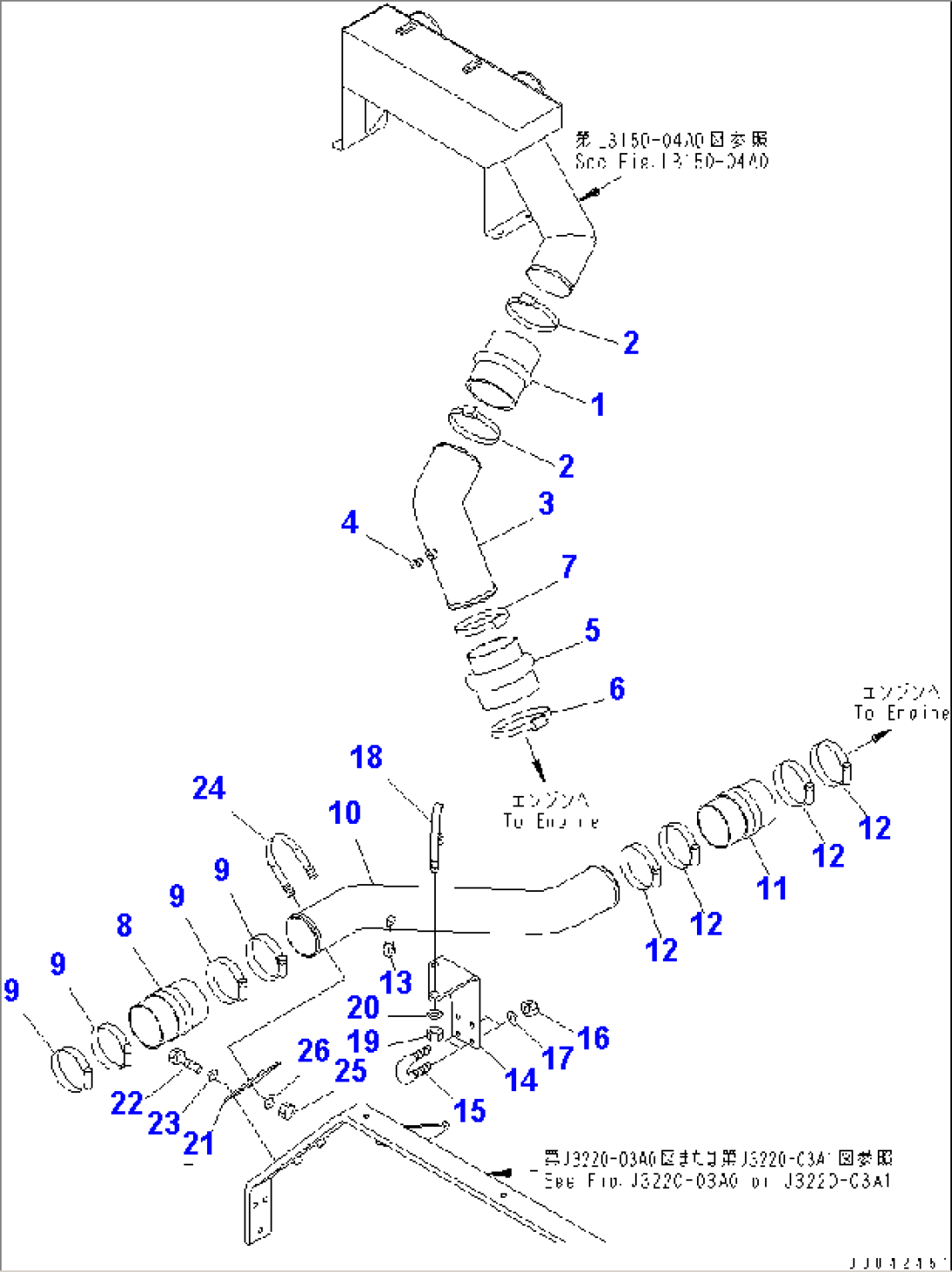

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 431-02-11420 | HOSE | 11001- | |
| 2 | 07289-00145 | CLAMP | 11001- | |
| 3 | 566-02-85121 | TUBE | 11001- | |
| 4 | 07042-20108 | PLUG | 11001- | |
| 5 | 566-02-85130 | HOSE | 11001- | |
| 6 | 07289-00160 | CLAMP | 11001- | |
| 7 | 07289-00145 | CLAMP | 11001- | |
| 8 | 6162-14-4810 | HOSE | 11001- | |
| 9 | 569-02-82180 | CLAMP | 11001- | |
| 10 | 566-02-85141 | TUBE | 11001- | |
| 11 | 6162-14-4810 | HOSE | 11001- | |
| 12 | 569-02-82180 | CLAMP | 11001- | |
| 13 | 07042-20108 | PLUG | 11001- | |
| 14 | 566-02-85152 | BRACKET | 11001- | |
| 15 | 07283-34346 | CLIP | 11001- | |
| 16 | 01597-01009 | NUT | 11001- | |
| 17 | 01643-31032 | WASHER | 11001- | |
| 18 | 07283-31185 | CLIP | 11001- | |
| 19 | 01597-01211 | NUT | 11001- | |
| 20 | 01643-31232 | WASHER | 11001- | |
| 21 | 566-02-85160 | PLATE | 11001- | |
| 22 | 01010-81245 | BOLT | 11001- | |
| 23 | 01643-31232 | WASHER | 11001- | |
| 24 | 07283-31185 | CLIP | 11001- | |
| 25 | 01597-01211 | NUT | 11001- | |
| 26 | 01643-31232 | WASHER | 11001- |
