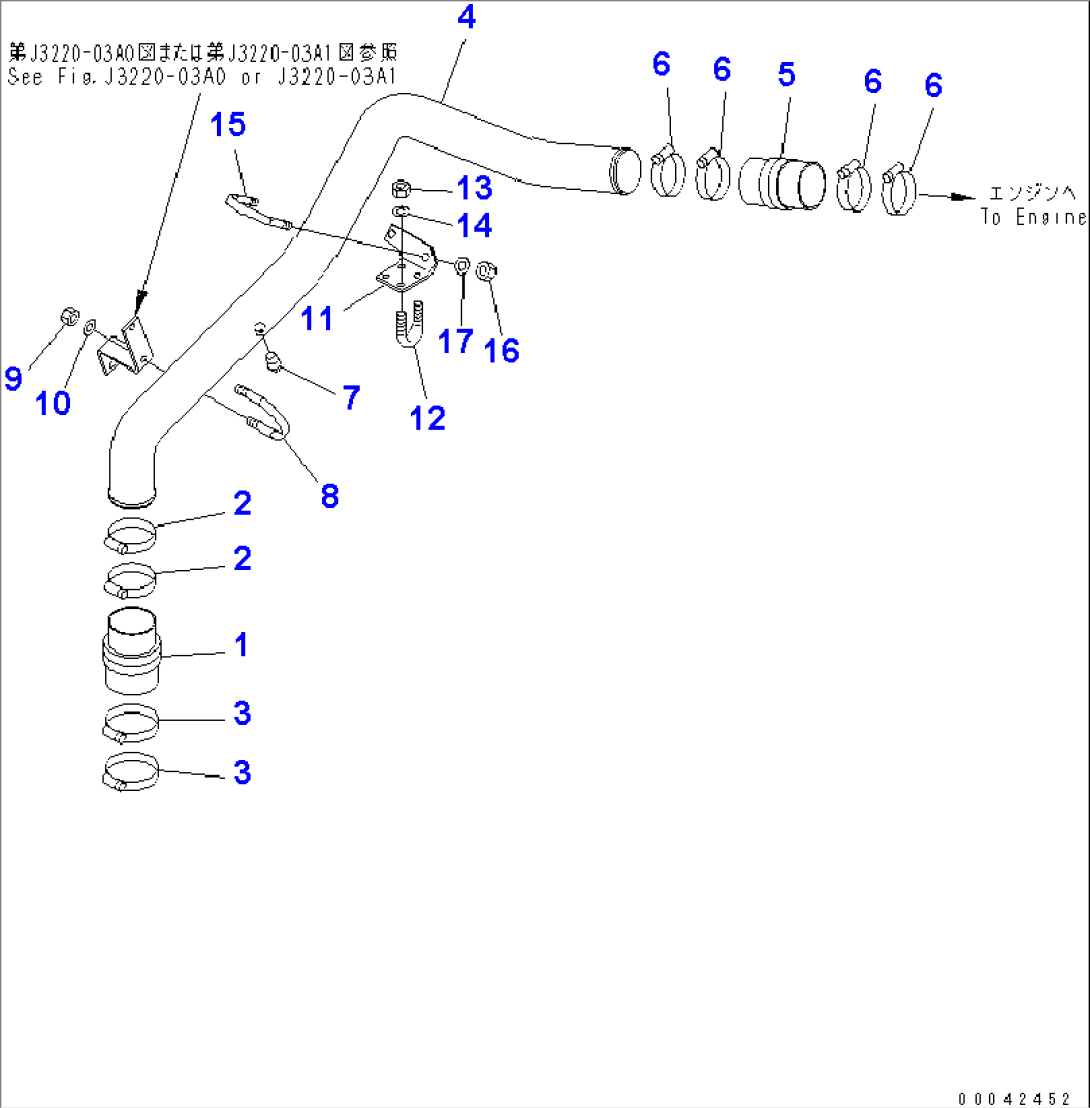

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6212-11-4420 | HOSE | 11001- | |
| 2 | 569-02-82190 | CLAMP | 11001- | |
| 3 | 569-02-82180 | CLAMP | 11001- | |
| 4 | 566-02-85172 | TUBE | 11003- | |
| 4 | \0\566-02-85171 | TUBE | 11001-11002 | |
| 5 | 6212-11-4880 | HOSE | 11001- | |
| 6 | 569-02-82190 | CLAMP | 11001- | |
| 7 | 07042-20108 | PLUG | 11001- | |
| 8 | 07283-31079 | CLIP | 11001- | |
| 9 | 01597-01211 | NUT | 11001- | |
| 10 | 01643-31232 | WASHER | 11001- | |
| 11 | 566-02-85181 | BRACKET | 11001- | |
| 12 | 07283-34346 | CLIP | 11001- | |
| 13 | 01597-01009 | NUT | 11001- | |
| 14 | 01643-31032 | WASHER | 11001- | |
| 15 | 07283-31079 | CLIP | 11001- | |
| 16 | 01597-01211 | NUT | 11001- | |
| 17 | 01643-31232 | WASHER | 11001- |
