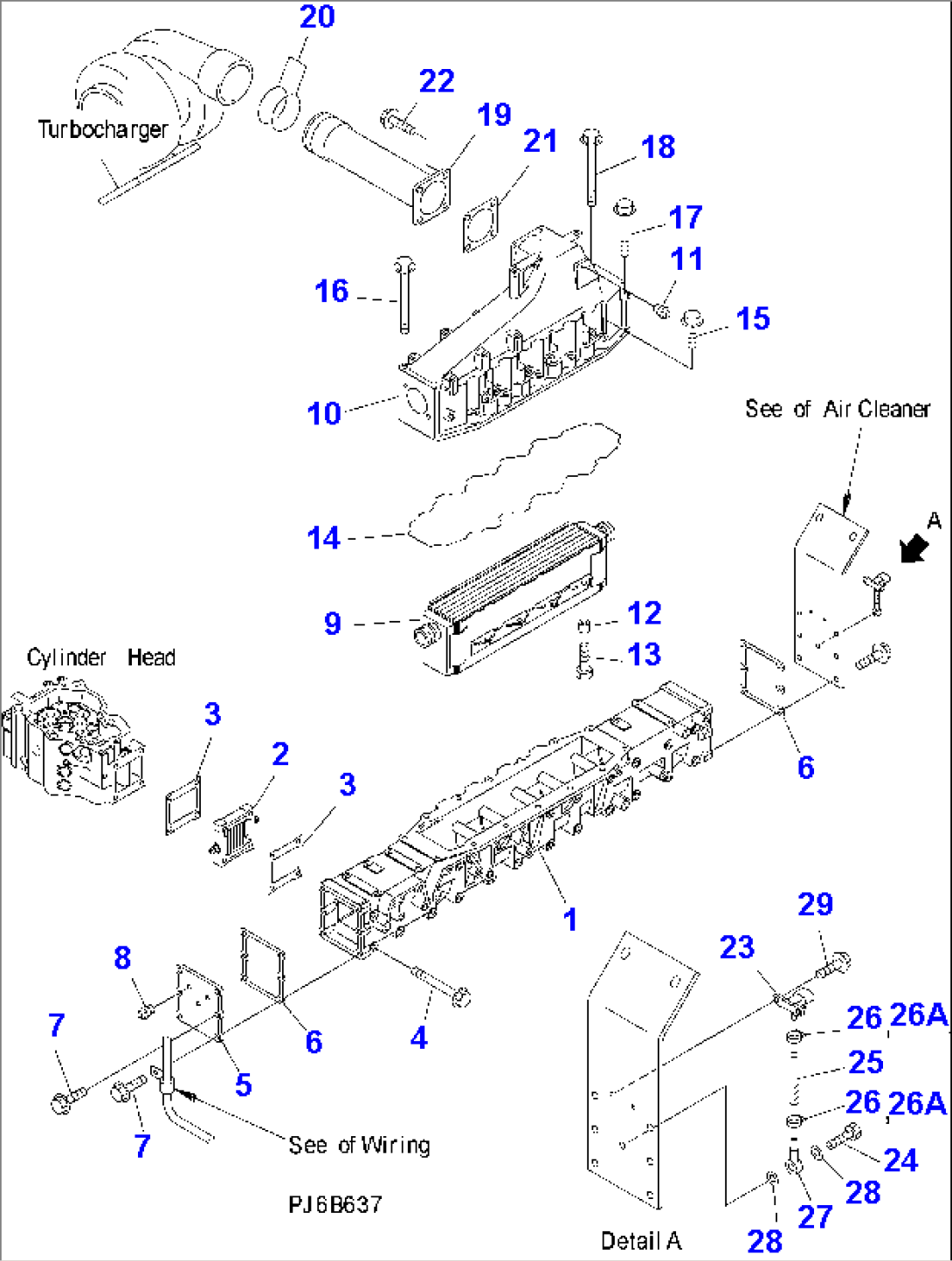

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6217-11-4110 | MANIFOLD | 110001- | |
| 2 | 600-815-4291 | HEATER | 110001- | |
| 3 | 6210-11-4811 | GASKET | 110001- | |
| 4 | 01436-01070 | BOLT | 110001- | |
| 5 | 6218-11-4250 | PLATE | 110001- | |
| 6 | 6217-11-4820 | GASKET | 110001- | |
| 7 | 01435-01025 | BOLT | 110001- | |
| 8 | 07042-A0108 | PLUG | 110001- | |
| 9 | 6217-61-6120 | CORE | 110001- | |
| 10 | 6217-11-4210 | COVER | 110001- | |
| 11 | 07042-A0108 | PLUG | 110001- | |
| 12 | 175-79-83760 | SPACER | 110001- | |
| 13 | 01010-81045 | BOLT | 110001- | |
| 14 | 6217-11-4710 | O-RING | 110001- | |
| 15 | 01435-01045 | BOLT | 110001- | |
| 16 | 01436-01045 | BOLT | 110001- | |
| 17 | 01436-01000 | BOLT | 110001- | |
| 18 | 01436-01025 | BOLT | 110001- | |
| 19 | 6217-11-4320 | CONNECTOR | 110001- | |
| 20 | 02895-77075 | O-RING | 110001- | |
| 21 | 6217-11-4330 | GASKET | 110001- | |
| 22 | 01435-01030 | BOLT | 110001- | |
| 23 | 6217-81-9240 | SENSOR | 110001- | |
| 24 | 07206-30710 | BOLT, JOINT | 110001- | |
| 25 | 6217-11-4430 | HOSE | 110001- | |
| 26 | 07281-00137 | CLAMP | 110001-110331 | |
| 26A | 07285-00115 | CLIP | 110332- | |
| 27 | 6206-71-1770 | JOINT | 110001- | |
| 28 | 07005-01012 | GASKET | 110001- | |
| 29 | 01435-00612 | BOLT | 110001- |
