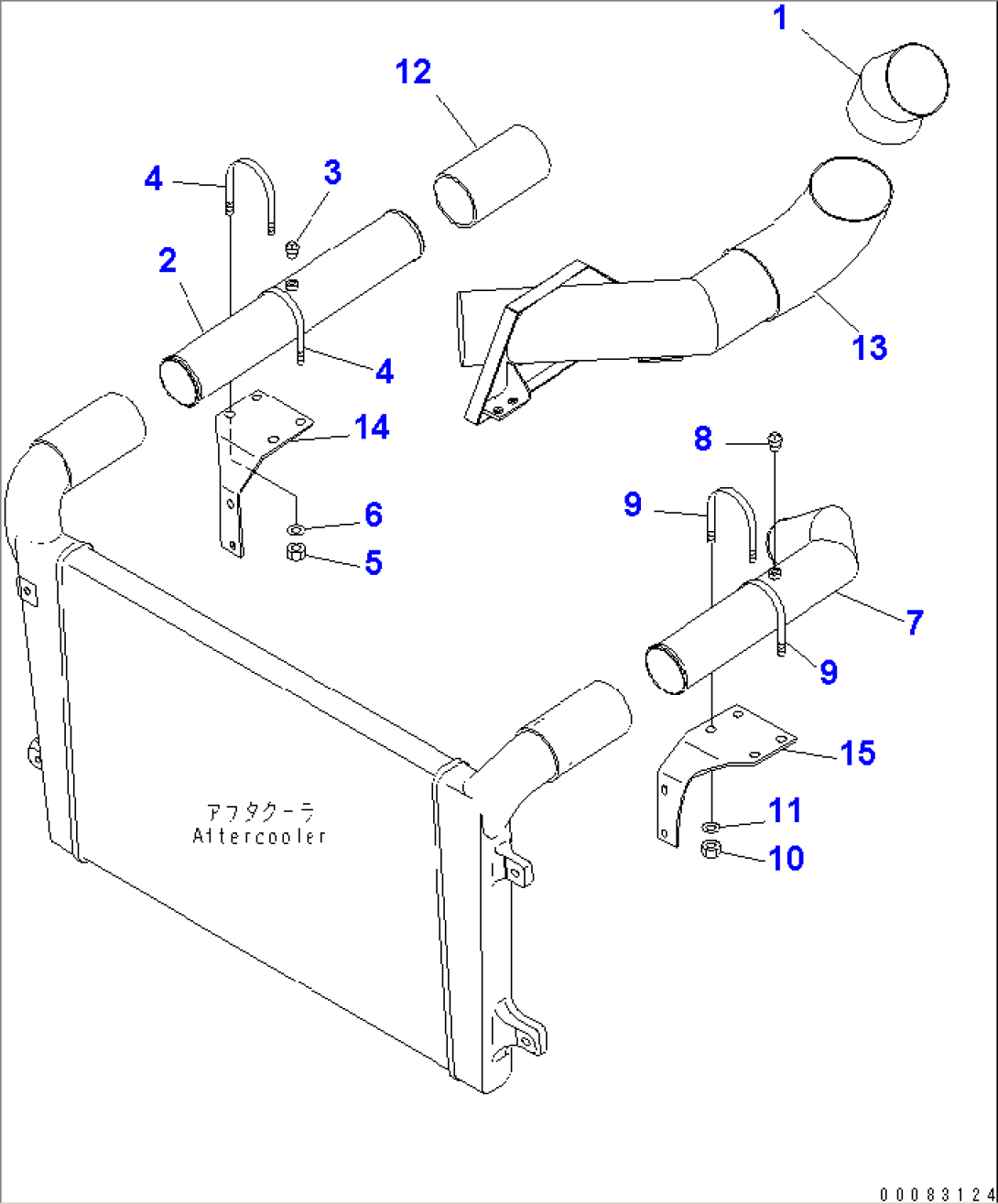

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-12141 | TUBE | A10001- | |
| 2 | 56B-02-12211 | TUBE | A10001- | |
| 3 | 07042-20108 | PLUG | A10001- | |
| 4 | 07283-31079 | CLIP | A10001- | |
| 5 | 01597-01211 | NUT | A10001- | |
| 6 | 01643-31232 | WASHER | A10001- | |
| 7 | 56B-02-12221 | TUBE | A10001- | |
| 8 | 07042-20108 | PLUG | A10001- | |
| 9 | 07283-31079 | CLIP | A10001- | |
| 10 | 01597-01211 | NUT | A10001- | |
| 11 | 01643-31232 | WASHER | A10001- | |
| 12 | HOSE,(SEE FIG. B0130-01A0) | A10001- | ||
| HOSE,(SEE FIG. B0130-01A1) | A10001- | |||
| 13 | ELBOW,(SEE FIG. B0130-02A0) | A10001- | ||
| ELBOW,(SEE FIG. B0130-02A1) | A10001- | |||
| 14 | BRACKET,(SEE FIG. C0110-05A0) | A10001- | ||
| 15 | BRACKET,(SEE FIG. C0110-05A0) | A10001- |
