| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-181-3860 | CAP | B15001-B15120 | |
| \6\ | CAP | B15001-B15120 | ||
| 2 | 23B-02-31610 | BRACKET | B15001-@ | |
| 3 | 01010-81025 | BOLT | B15001-@ | |
| 4 | 424-09-12650 | WASHER | B15001-@ | |
| 5 | 600-181-0670 | HOSE | B15001-@ | |
| 6 | 07289-00170 | CLAMP {HOSE} | B15001-@ |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd655 3c s/n b15001 up
- Engine related parts
- Air intake (rain cap) (with intake extension) (#b15001 b15120)
Поиск по каталогу

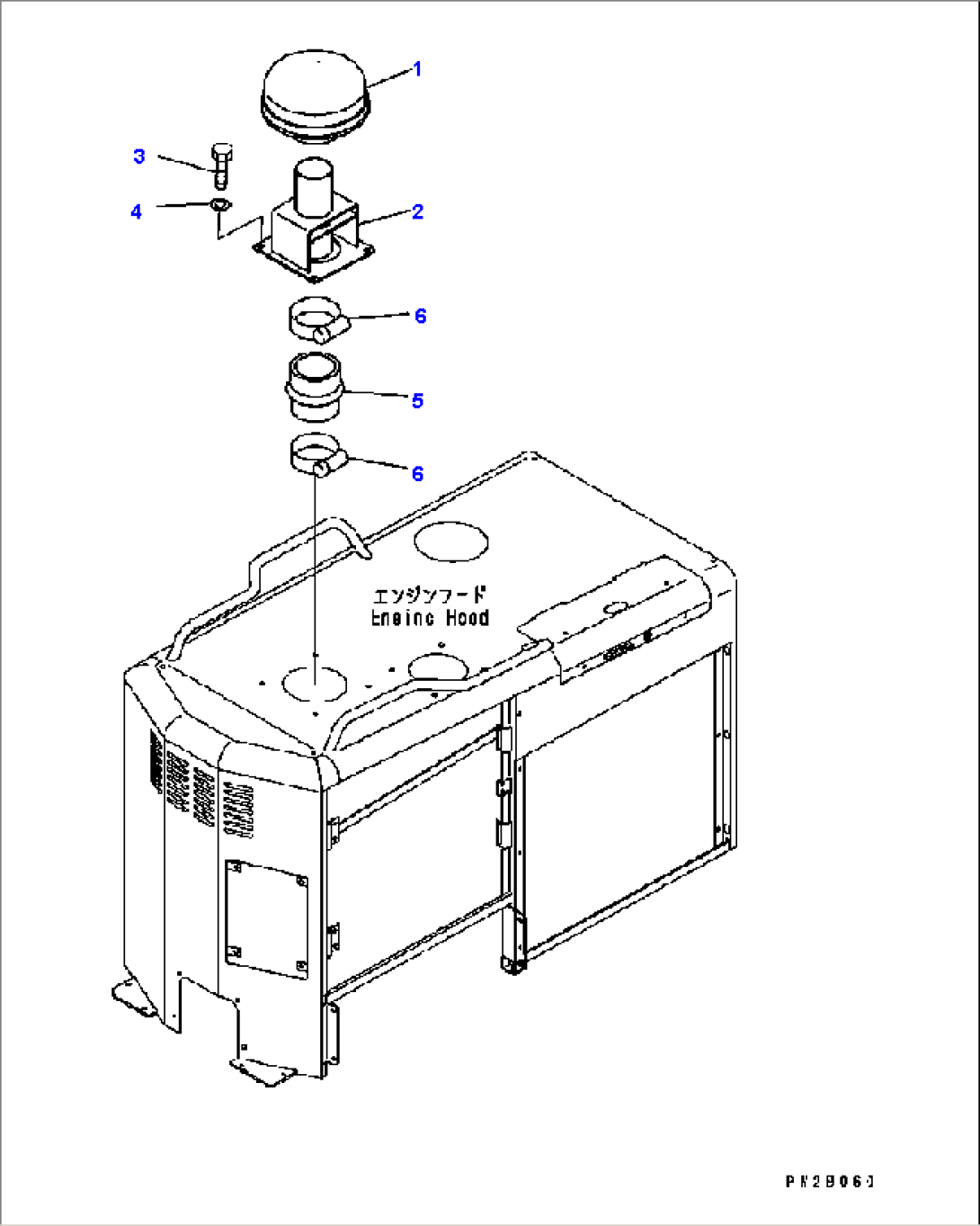

AIR INTAKE (RAIN CAP) (WITH INTAKE EXTENSION) (#B15001-B15120)
