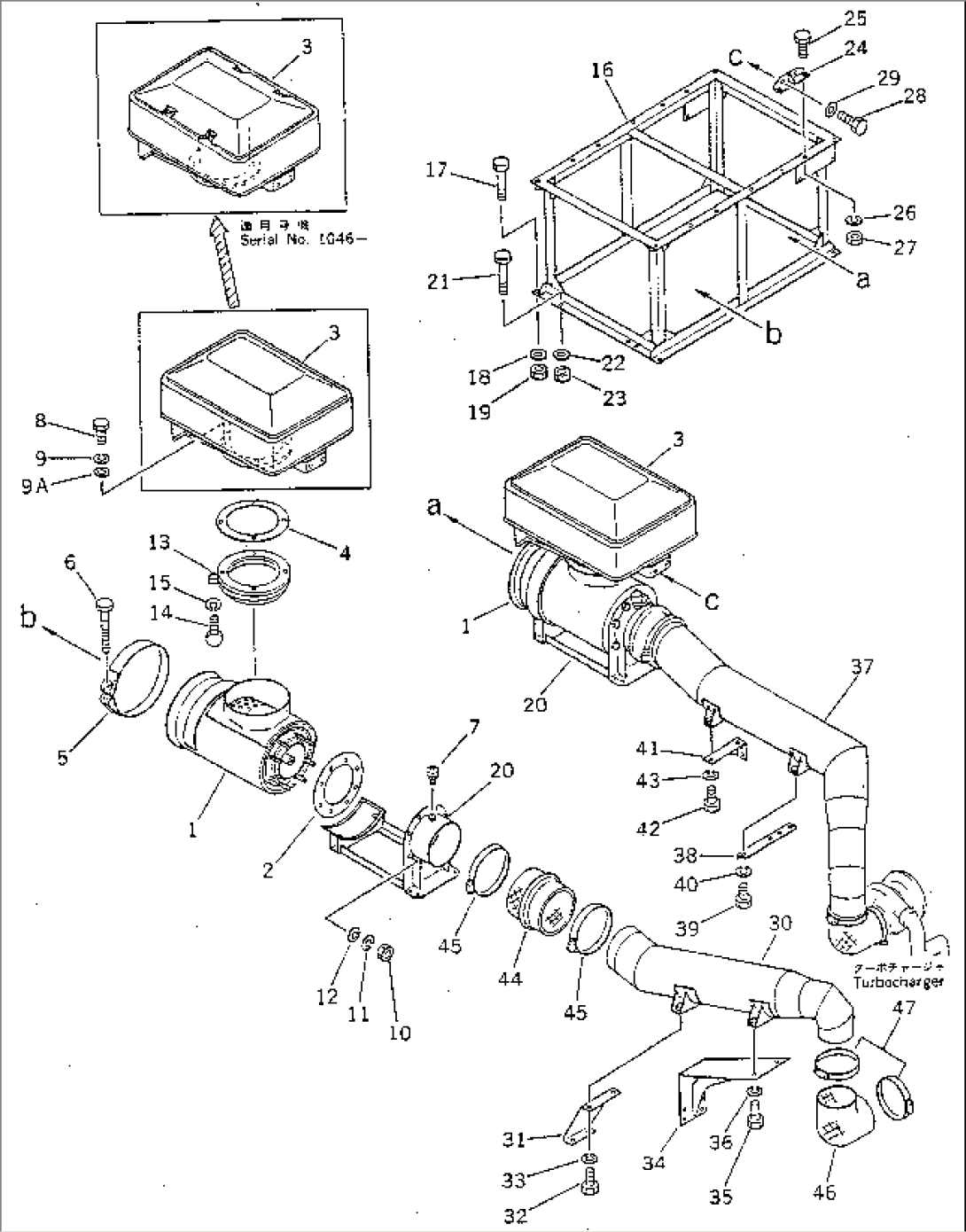

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6128-81-7104) | AIR CLEANER ASS'Y | 1055- | |
| \0\6128-81-7103 | AIR CLEANER ASS'Y | 1002-1054 | ||
| 2 | 6127-81-4820 | GASKET | 1002- | |
| 3 | 568-02-22400 | PRECLEANER ASS'Y | 1046- | |
| \0\6710-81-7300 | PRECLEANER ASS'Y | 1002-1045 | ||
| 4 | 600-181-4561 | GASKET | 1055- | |
| 600-181-4560 | GASKET | 1002-1054 | ||
| 5 | 6127-11-4360 | BAND ASS'Y | 1002- | |
| 6 | 6643-11-4641 | BOLT | 1002- | |
| 7 | 08670-00635 | INDICATOR | 1109- | |
| 08670-30640 | INDICATOR | 1106-1108 | ||
| 08670-00635 | INDICATOR | 1058-1105 | ||
| 08670-30640 | INDICATOR | 1055-1057 | ||
| 08670-00635 | INDICATOR | 1002-1054 | ||
| 8 | 01010-51025 | BOLT | 1055- | |
| 01010-51025 | BOLT | 1002-1054 | ||
| 9 | 01602-21030 | WASHER | 1055- | |
| 01602-21030 | WASHER | 1002-1054 | ||
| 9A | 01643-31032 | WASHER | 1055- | |
| 10 | 01580-11008 | NUT | 1002- | |
| 11 | 01602-21030 | WASHER | 1002- | |
| 12 | 01643-31032 | WASHER | 1002- | |
| 13 | 568-02-22130 | TUBE | 1002- | |
| 14 | 01010-51045 | BOLT | 1002- | |
| 15 | 01602-21030 | WASHER | 1002- | |
| 16 | 568-02-22111 | BRACKET | 1002- | |
| 17 | 01010-51225 | BOLT | 1055- | |
| 01010-51275 | BOLT | 1002-1054 | ||
| 18 | 01605-11226 | WASHER | 1002- | |
| 19 | 01580-11210 | NUT | 1002-1054 | |
| 20 | 568-02-22120 | BRACKET | 1002- | |
| 21 | 01010-51225 | BOLT | 1055- | |
| 01010-51280 | BOLT | 1002-1054 | ||
| 22 | 01605-11220 | WASHER | 1002- | |
| 23 | 01580-11210 | NUT | 1002-1054 | |
| 24 | 568-02-22150 | BRACKET | 1002- | |
| 25 | 01010-51225 | BOLT | 1002- | |
| 26 | 01602-21236 | WASHER | 1002- | |
| 27 | 01580-11210 | NUT | 1002- | |
| 28 | 01050-51020 | BOLT | 1002- | |
| 29 | 01605-11023 | WASHER | 1002- | |
| 30 | 568-02-22161 | TUBE | 1088- | |
| 568-02-22160 | TUBE | 1002-1087 | ||
| 31 | 568-02-22210 | BRACKET | 1002- | |
| 32 | 01010-51225 | BOLT | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 568-02-22221 | BRACKET | 1088- | |
| 568-02-22220 | BRACKET | 1002-1087 | ||
| 35 | 01010-51225 | BOLT | 1002- | |
| 36 | 01602-21236 | WASHER | 1002- | |
| 37 | 568-02-22172 | TUBE | 1088- | |
| 568-02-22171 | TUBE | 1002-1087 | ||
| 38 | 568-02-22181 | BRACKET | 1002- | |
| 39 | 01010-51225 | BOLT | 1002- | |
| 40 | 01602-21236 | WASHER | 1002- | |
| 41 | 568-02-22191 | BRACKET | 1002- | |
| 42 | 01010-51225 | BOLT | 1002- | |
| 43 | 01602-21236 | WASHER | 1002- | |
| 44 | 568-02-22230 | HOSE | 1002- | |
| 45 | 07281-12039 | CLAMP | 1055- | |
| \0\07281-02039 | CLAMP | 1002-1054 | ||
| 46 | 568-02-22240 | ELBOW | 1002- | |
| 47 | 07281-11659 | CLAMP | 1002- | |
| 47 | 07281-01659 | CLAMP | 1002-1054 |
