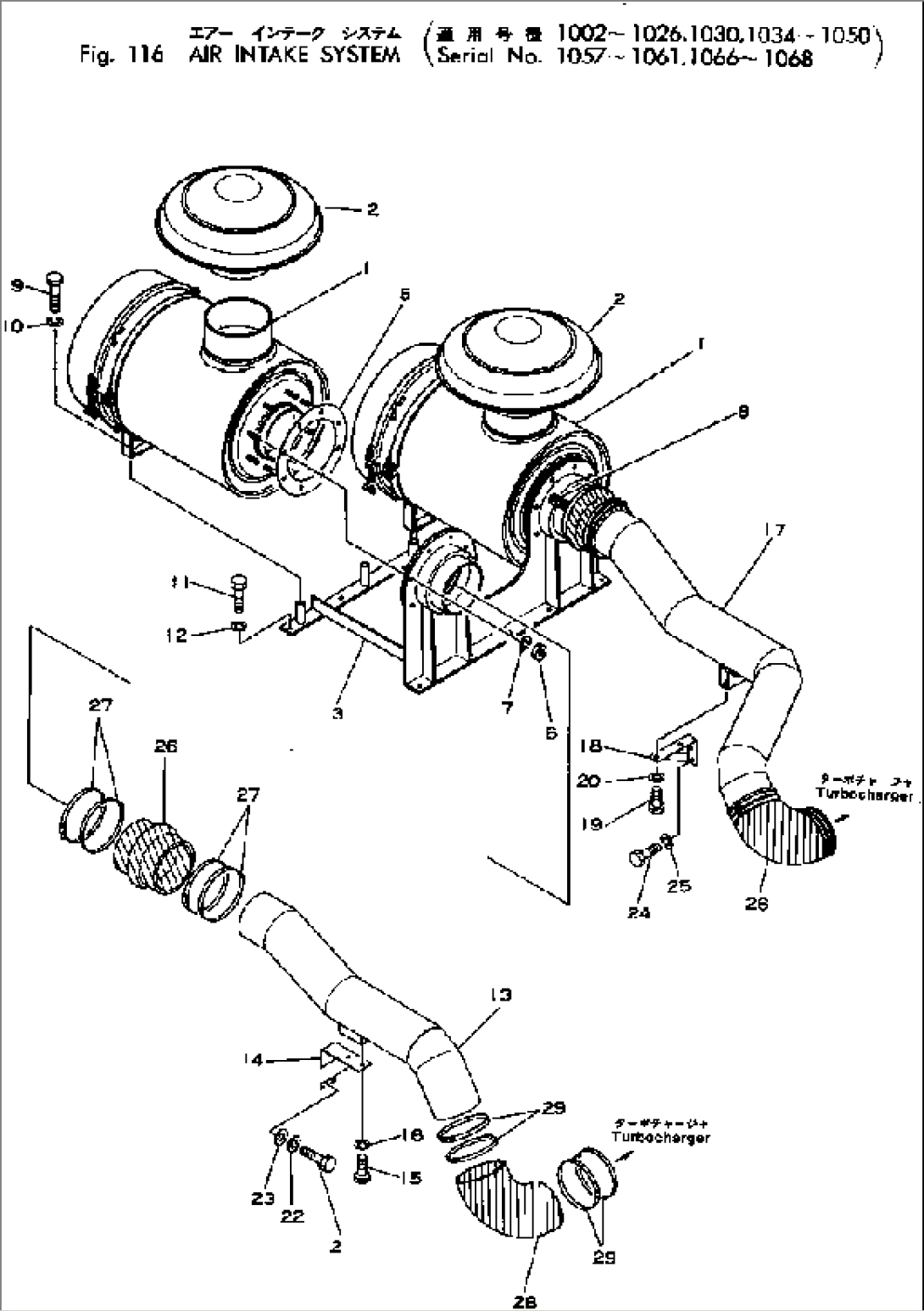

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6128-81-7401 | AIR CLEANER ASS'Y | .-@ | |
| 1 | \0\6128-81-7400 | AIR CLEANER ASS'Y | 1002-. | |
| 2 | 600-181-4980 | CAP | 1002-@ | |
| 3 | 569-02-12111 | BRACKET | 1002-. | |
| 4 | 569-02-12121 | BAND | 1002-@ | |
| 5 | 6127-81-4820 | GASKET | 1002-@ | |
| 6 | 01580-11008 | NUT | 1002-@ | |
| 7 | 01602-21030 | WASHER | 1002-@ | |
| 8 | 08670-00635 | INDICATOR | 1002-. | |
| 9 | 01010-51020 | BOLT | 1002-@ | |
| 10 | 01602-21030 | WASHER | 1002-@ | |
| 11 | 01010-51225 | BOLT | 1002-@ | |
| 12 | 01602-21236 | WASHER | 1002-@ | |
| 13 | 569-02-12211 | TUBE | 1002-. | |
| 14 | 569-02-12310 | BRACKET | 1002-. | |
| 15 | 01010-51225 | BOLT | 1002-. | |
| 16 | 01602-21236 | WASHER | 1002-. | |
| 17 | 569-02-12221 | TUBE | 1002-. | |
| 18 | 569-02-12320 | BRACKET | 1002-. | |
| 19 | 01010-51225 | BOLT | 1002-. | |
| 20 | 01602-21236 | WASHER | 1002-. | |
| 21 | 01010-51025 | BOLT | 1002-. | |
| 22 | 01602-21030 | WASHER | 1002-. | |
| 23 | 01643-31032 | WASHER | 1002-. | |
| 24 | 01010-51225 | BOLT | 1002-. | |
| 25 | 01602-21236 | WASHER | 1002-. | |
| 26 | 569-02-12230 | HOSE | 1002-. | |
| 27 | 07281-11789 | CLAMP | 1002-. | |
| 28 | 568-02-22240 | ELBOW | 1002-@ | |
| 29 | 07281-11789 | CLAMP | 1002-. |
