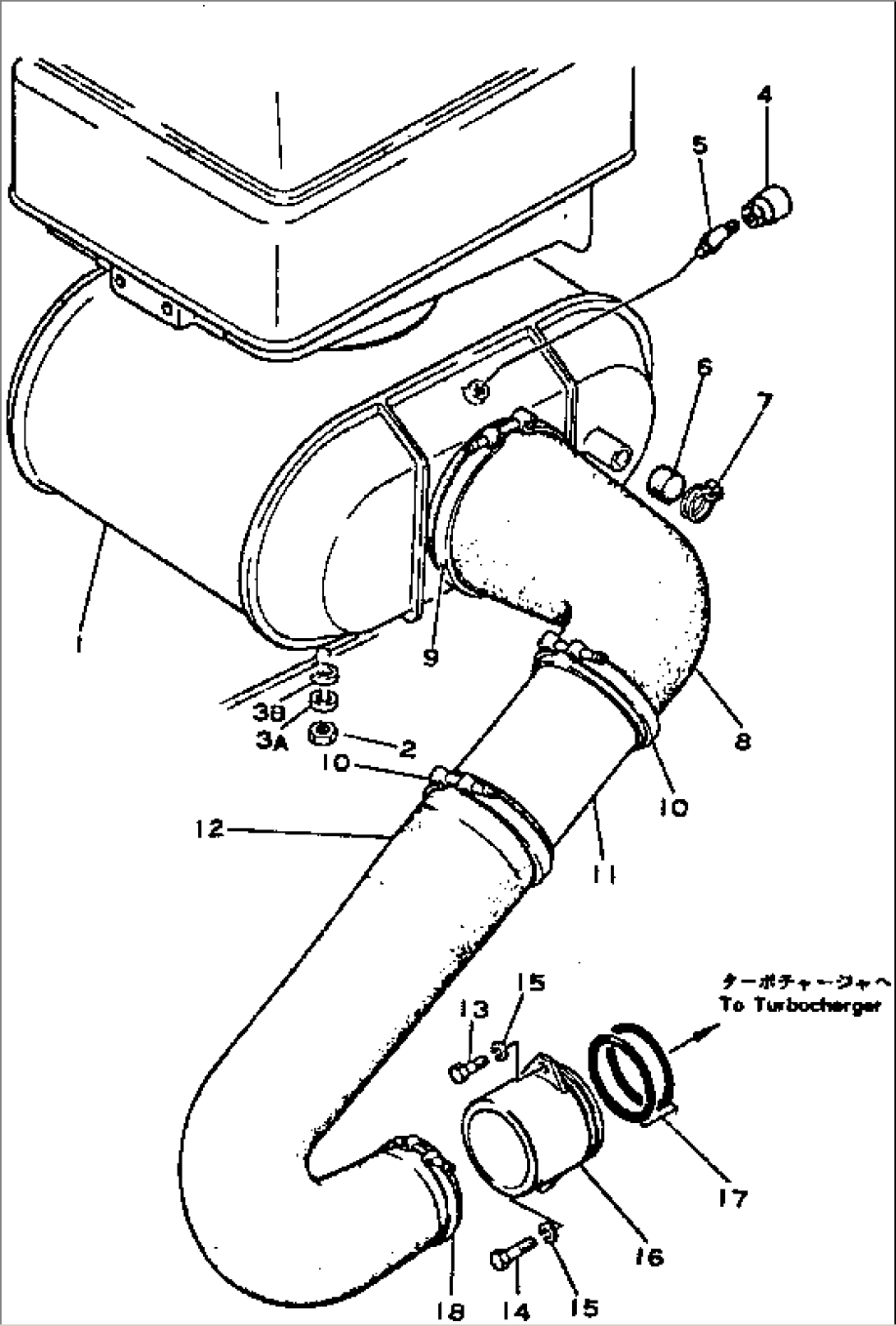

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6710-81-7103 | AIR CLEANER ASS'Y | 1031-@ | |
| 1 | 6710-81-7101 | AIR CLEANER ASS'Y | 1005-1030 | |
| 2 | 01580-01210 | NUT | 1005-@ | |
| 3A | 01602-01236 | WASHER | 1005-@ | |
| 3B | 01643-21232 | WASHER | 1005-@ | |
| 4 | 08670-00635 | INDICATOR | 1005-@ | |
| 5 | 566-02-12610 | ELBOW | 1005-@ | |
| 6 | 566-02-12580 | CAP | 1005-1030 | |
| 7 | 07280-03826 | CLAMP | 1005-1030 | |
| 8 | 566-02-12510 | HOSE | 1005-1156 | |
| 9 | 07281-12299 | CLAMP | 1031-1156 | |
| 9 | \0\281-09-11580 | BAND ASS'Y | 1031-1156 | |
| 9 | 07281-12299 | CLAMP | 1005-1030 | |
| 9 | \0\281-09-11580 | BAND ASS'Y | 1005-1030 | |
| 10 | 07281-12039 | CLAMP | 1031-1156 | |
| 10 | \0\566-02-12570 | BAND ASS'Y | 1031-1156 | |
| 10 | 07281-12039 | CLAMP | 1005-1030 | |
| 10 | \0\566-02-12570 | BAND ASS'Y | 1005-1030 | |
| 11 | 566-02-12530 | TUBE | 1005-1156 | |
| 12 | 566-02-12521 | HOSE | 1005-1156 | |
| 13 | 01010-30825 | BOLT | 1005-1156 | |
| 14 | 01010-30845 | BOLT | 1005-1156 | |
| 15 | 01602-00825 | WASHER | 1005-1156 | |
| 16 | 566-02-12561 | RETAINER | 1005-1156 | |
| 17 | 07000-65120 | O-RING | 1005-@ | |
| 18 | 07281-11659 | CLAMP | 1031-1156 | |
| 18 | \0\566-02-12450 | BAND | 1031-1156 | |
| 18 | 07281-11659 | CLAMP | 1005-1030 | |
| 18 | \0\566-02-12450 | BAND | 1005-1030 |
