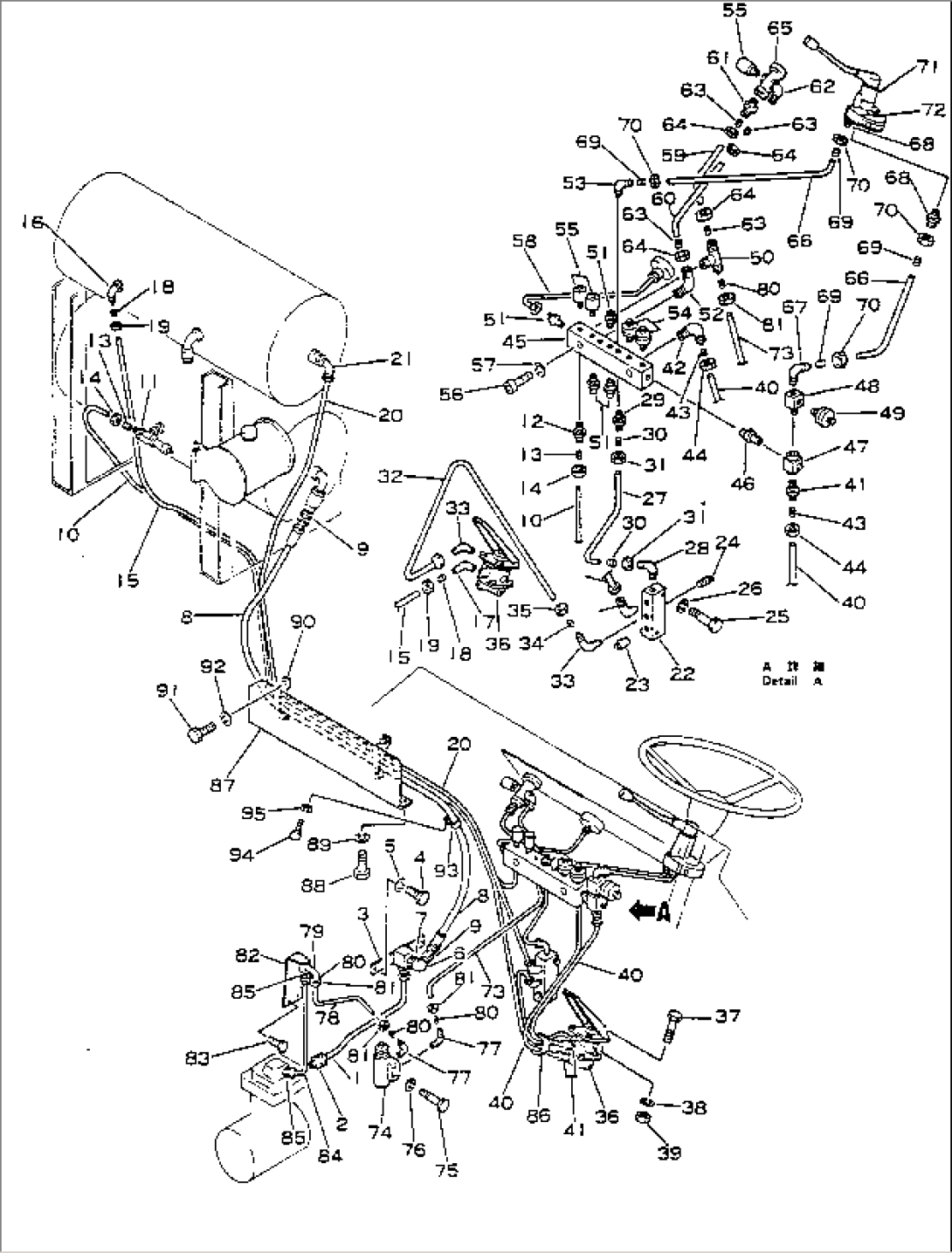

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-35-14311 | TUBE | 1304- | |
| 1 | 566-35-34311 | TUBE | 1000-1000 | |
| 2 | 07213-51521 | CONNECTOR | 1061- | |
| 3 | 566-35-14330 | JOINT | 1061- | |
| 3 | 566-35-32120 | BLOCK | 1000-1000 | |
| 4 | 02030-70929 | BOLT | 1061- | |
| 4 | 02010-70676 | BOLT | 1000-1000 | |
| 5 | 02310-11836 | WASHER | 1061- | |
| 5 | 01602-20929 | WASHER | 1000-1000 | |
| 6 | 07323-50400 | ELBOW | 1410- | |
| 7 | 07325-10400 | NIPPLE | 1410- | |
| 8 | 566-35-13323 | HOSE | 1338- | |
| 9 | 566-35-14210 | NIPPLE | 1005- | |
| 10 | 07822-00441 | TUBE | 1157- | |
| 11 | 07836-00410 | CONNECTOR | 2001- | |
| 12 | 07836-00413 | CONNECTOR | 2001- | |
| 13 | 07831-00411 | SLEEVE | 2001- | |
| 14 | 07832-00410 | NUT | 2001- | |
| 15 | 07822-00643 | TUBE | 1157- | |
| 16 | 07834-00613 | ELBOW | 2001- | |
| 17 | 07834-00617 | ELBOW | 2001- | |
| 18 | 07831-00612 | SLEEVE | 2001- | |
| 19 | 07832-00614 | NUT | 2001- | |
| 20 | 566-35-13810 | TUBE | 1097- | |
| 21 | 411-44-11570 | ELBOW | 1005- | |
| 22 | 566-35-11930 | JOINT | 1005- | |
| 23 | 07042-20211 | PLUG | 2001- | |
| 24 | 07042-20312 | PLUG | 2001- | |
| 25 | 01010-50850 | BOLT | 1005- | |
| 26 | 01602-20825 | WASHER | 1005- | |
| 27 | 07822-00617 | TUBE | 1157- | |
| 28 | 07834-00613 | ELBOW | 2001- | |
| 29 | 07836-00613 | CONNECTOR | 2001- | |
| 30 | 07831-00612 | SLEEVE | 2001- | |
| 31 | 07832-00614 | NUT | 2001- | |
| 32 | 07822-00820 | TUBE | 1097- | |
| 33 | 07834-00617 | ELBOW | 2001- | |
| 34 | 07831-00612 | SLEEVE | 2001- | |
| 35 | 07832-00614 | NUT | 2001- | |
| 36 | (565-44-11100) | VALVE ASS'Y | 1005- | |
| 37 | 01010-50820 | BOLT | 1005- | |
| 38 | 01602-20825 | WASHER | 1005- | |
| 39 | 01580-10806 | NUT | 1005- | |
| 40 | 07822-00607 | TUBE | 1157- | |
| 41 | 07836-00617 | CONNECTOR | 2001- | |
| 42 | 07834-00613 | ELBOW | 2001- | |
| 43 | 07831-00612 | SLEEVE | 2001- | |
| 44 | 07832-00614 | NUT | 2001- | |
| 45 | 566-35-11290 | JOINT | 1097- | |
| 46 | 07325-10300 | NIPPLE | 1097- | |
| 47 | 281-34-12300 | VALVE ASS'Y,CHECK | 1005- | |
| 48 | 411-44-13341 | JOINT | 2001- | |
| 49 | 567-35-11610 | SWITCH | 2001- | |
| 50 | 07835-00413 | TEE | 2001- | |
| 51 | 07213-50510 | CONNECTOR | 2001- | |
| 52 | 07834-00413 | ELBOW | 2001- | |
| 53 | 07834-00613 | ELBOW | 2001- | |
| 54 | 567-35-11610 | SWITCH,STOP LIGHT | 2001- | |
| 55 | 500-44-14160 | SWITCH,LOW PRESSURE | 2001- | |
| 56 | 01252-41240 | BOLT | 1097- | |
| 57 | 01602-21236 | WASHER | 1097- | |
| 58 | 566-06-15270 | TUBE | 1157- | |
| 59 | 07822-00405 | TUBE | 2001- | |
| 60 | 07822-00406 | TUBE | 2001- | |
| 61 | 07836-00413 | CONNECTOR | 2001- | |
| 62 | 07834-00413 | ELBOW | 2001- | |
| 63 | 07831-00411 | SLEEVE | 2001- | |
| 64 | 07832-00410 | NUT | 2001- | |
| 65 | (566-35-11150) | VALVE ASS'Y,PARKING BRAKE | 1005- | |
| 66 | 07822-00609 | TUBE | 2001- | |
| 67 | 07834-00617 | ELBOW | 2001- | |
| 68 | 07836-00613 | CONNECTOR | 2001- | |
| 69 | 07831-00612 | SLEEVE | 2001- | |
| 70 | 07832-00614 | NUT | 2001- | |
| 71 | (566-35-11131) | VALVE ASS'Y,HAND BRAKE | 2001- | |
| 72 | 566-35-11470 | SEAT | 2001- | |
| 73 | 07822-00422 | TUBE | 2001- | |
| 74 | (500-44-14110) | AIR GOVERNOR ASS'Y | 1005- | |
| 75 | 01010-50870 | BOLT | 1005- | |
| 76 | 01602-20825 | WASHER | 1005- | |
| 77 | 07834-00410 | ELBOW | 2001- | |
| 78 | 07822-00403 | TUBE | 2001- | |
| 79 | 07834-00410 | ELBOW | 2001- | |
| 80 | 07831-00411 | SLEEVE | 2001- | |
| 81 | 07832-00410 | NUT | 2001- | |
| 82 | 566-35-12660 | JOINT | 1069- | |
| 82 | 566-35-32110 | BRACKET | 1000-1000 | |
| 83 | 02011-20521 | BOLT | 1069- | |
| 83 | 02011-70621 | BOLT | 1000-1000 | |
| 84 | 566-35-12650 | TUBE | 1069- | |
| 84 | 566-35-34320 | TUBE | 1000-1000 | |
| 85 | 07213-50610 | CONNECTOR | 1069- | |
| 86 | 08037-02512 | GROMMET | 2001- | |
| 87 | 566-35-11351 | COVER | 1157- | |
| 88 | 01010-51016 | BOLT | 1005- | |
| 89 | 01602-21030 | WASHER | 1005- | |
| 90 | 566-35-11710 | CLAMP | 1005- | |
| 91 | 01010-51016 | BOLT | 1005- | |
| 92 | 01602-21030 | WASHER | 1005- | |
| 93 | 08036-02514 | CLIP | 1005- | |
| 94 | 01010-51016 | BOLT | 1005- | |
| 95 | 01602-21030 | WASHER | 1005- |
