| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07822-00604 | TUBE | 1021-@ | |
| 2 | 07822-00601 | TUBE | 1021-@ | |
| 3 | 07822-00407 | TUBE | 1021-@ | |
| 4 | 07822-00408 | TUBE | 1021-@ | |
| 5 | 07822-00409 | TUBE | 1021-@ | |
| 6 | 07822-00601 | TUBE | 1021-@ |
- Главная
- Каталог запчастей
- Самосвалы
- Hd985 5 s/n 1021 up
- Operator's compartment and control system
- Air piping (5/5) (auto suspension and front brake cut and exhaust brake)
Поиск по каталогу

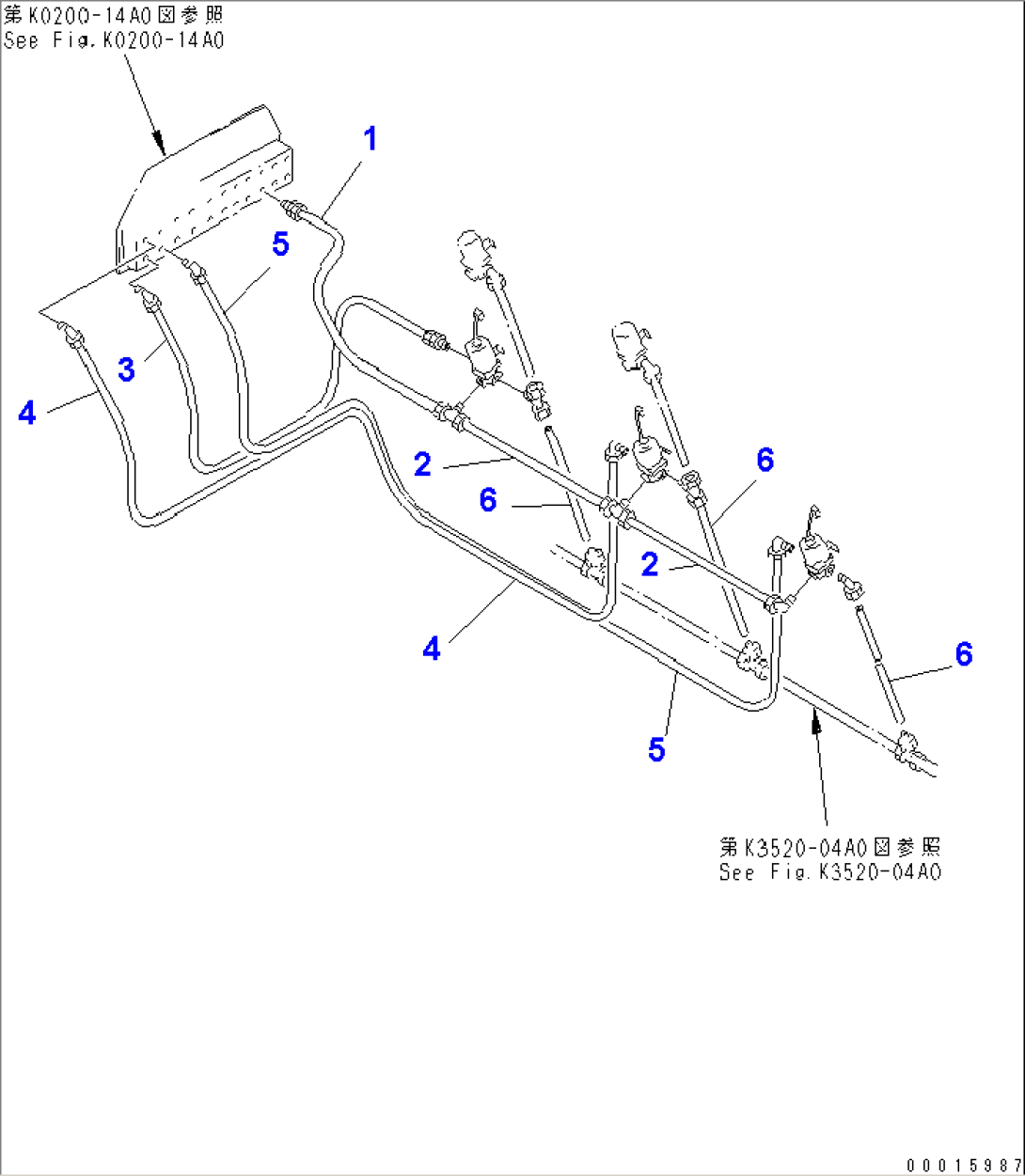

AIR PIPING (5/5) (AUTO SUSPENSION AND FRONT BRAKE CUT AND EXHAUST BRAKE)
