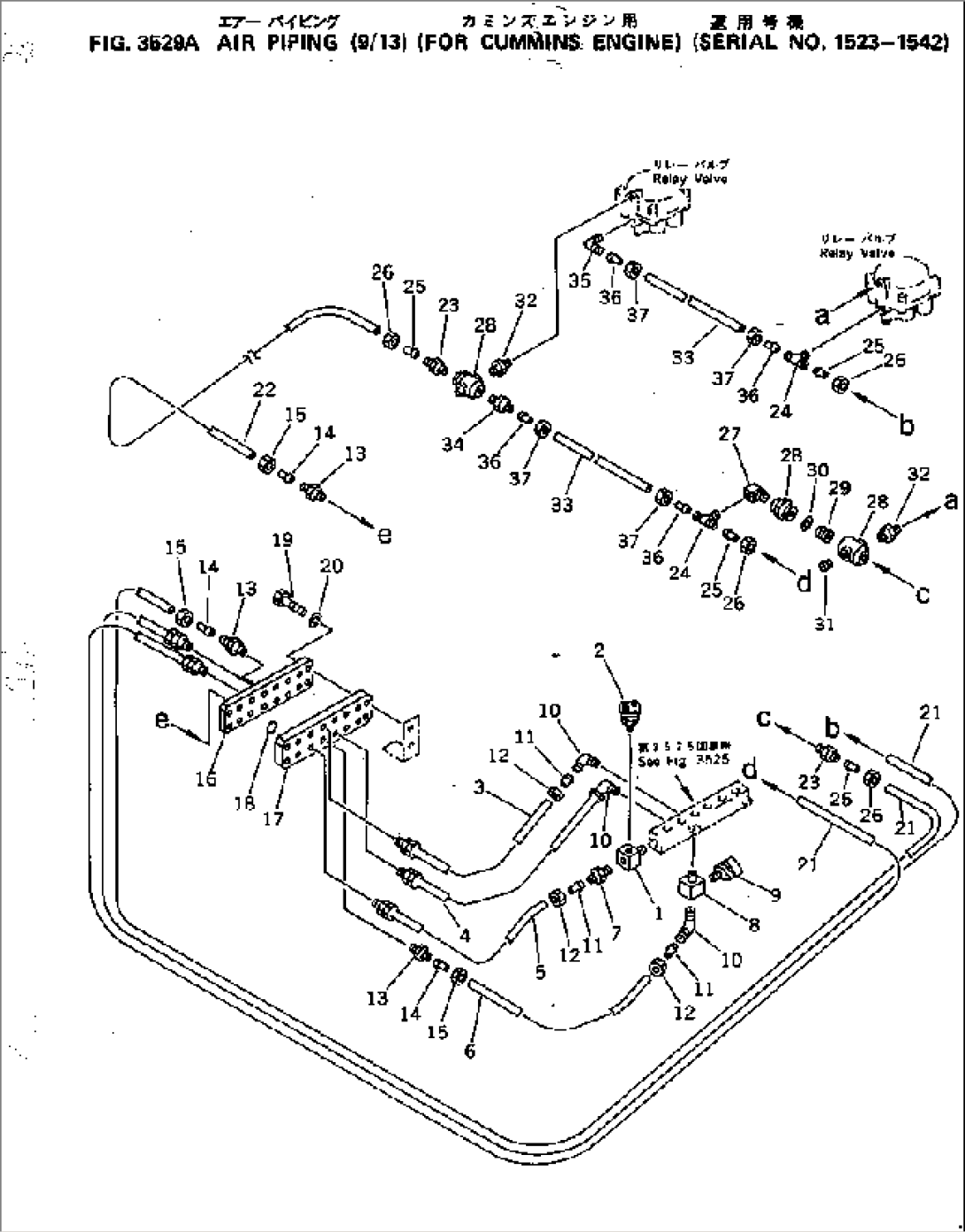

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 411-44-13341 | JOINT | 1501-@ | |
| 2 | 567-35-11610 | SWITCH,CAUTION | 1501-@ | |
| 3 | 07822-00608 | TUBE | 1523-@ | |
| 4 | 07822-00620 | TUBE | 1523-@ | |
| 5 | 07822-00607 | TUBE | 1523-@ | |
| 6 | 07822-00609 | TUBE | 1523-@ | |
| 7 | 07836-00617 | CONNECTOR | 1501-@ | |
| 8 | 411-44-13341 | JOINT | 1507-@ | |
| 9 | 567-35-11610 | SWITCH | 1507-@ | |
| 10 | 07834-00617 | ELBOW | 1501-@ | |
| 11 | 07831-00612 | SLEEVE | 1501-@ | |
| 12 | 07832-00614 | NUT | 1501-@ | |
| 13 | 07836-00613 | CONNECTOR | 1523-1542 | |
| 14 | 07831-00612 | SLEEVE | 1501-1542 | |
| 15 | 07832-00614 | NUT | 1501-1542 | |
| 16 | 561-35-41160 | FLANGE | 1523-@ | |
| 17 | 561-35-41170 | FLANGE | 1523-@ | |
| 18 | 07000-42018 | O-RING | 1523-@ | |
| 19 | 01010-51255 | BOLT | 1523-@ | |
| 20 | 01602-21236 | WASHER | 1523-@ | |
| 21 | 07822-00659 | TUBE | 1523-@ | |
| 22 | 07822-00680 | TUBE | 1501-1542 | |
| 23 | 07836-00617 | CONNECTOR | 1501-1542 | |
| 24 | 07835-00613 | TEE | 1501-@ | |
| 25 | 07831-00612 | SLEEVE | 1501-1542 | |
| 26 | 07832-00614 | NUT | 1501-1542 | |
| 27 | 437-02-21310 | ELBOW | 1501-@ | |
| 28 | 281-34-12300 | VALVE ASS'Y | 1501-@ | |
| 29 | 281-34-12310 | SHUTTLE (KIT) | 1501-@ | |
| 30 | 281-34-12320 | GASKET (KIT) | 1501-@ | |
| 31 | 07043-20617 | PLUG | 1501-@ | |
| 32 | 430-07-27120 | NIPPLE | 1501-@ | |
| 33 | 07822-00604 | TUBE | 1501-@ | |
| 34 | 07836-00617 | CONNECTOR | 1501-@ | |
| 35 | 07834-00613 | ELBOW | 1501-@ | |
| 36 | 07831-00612 | SLEEVE | 1501-@ | |
| 37 | 07832-00614 | NUT | 1501-@ |
