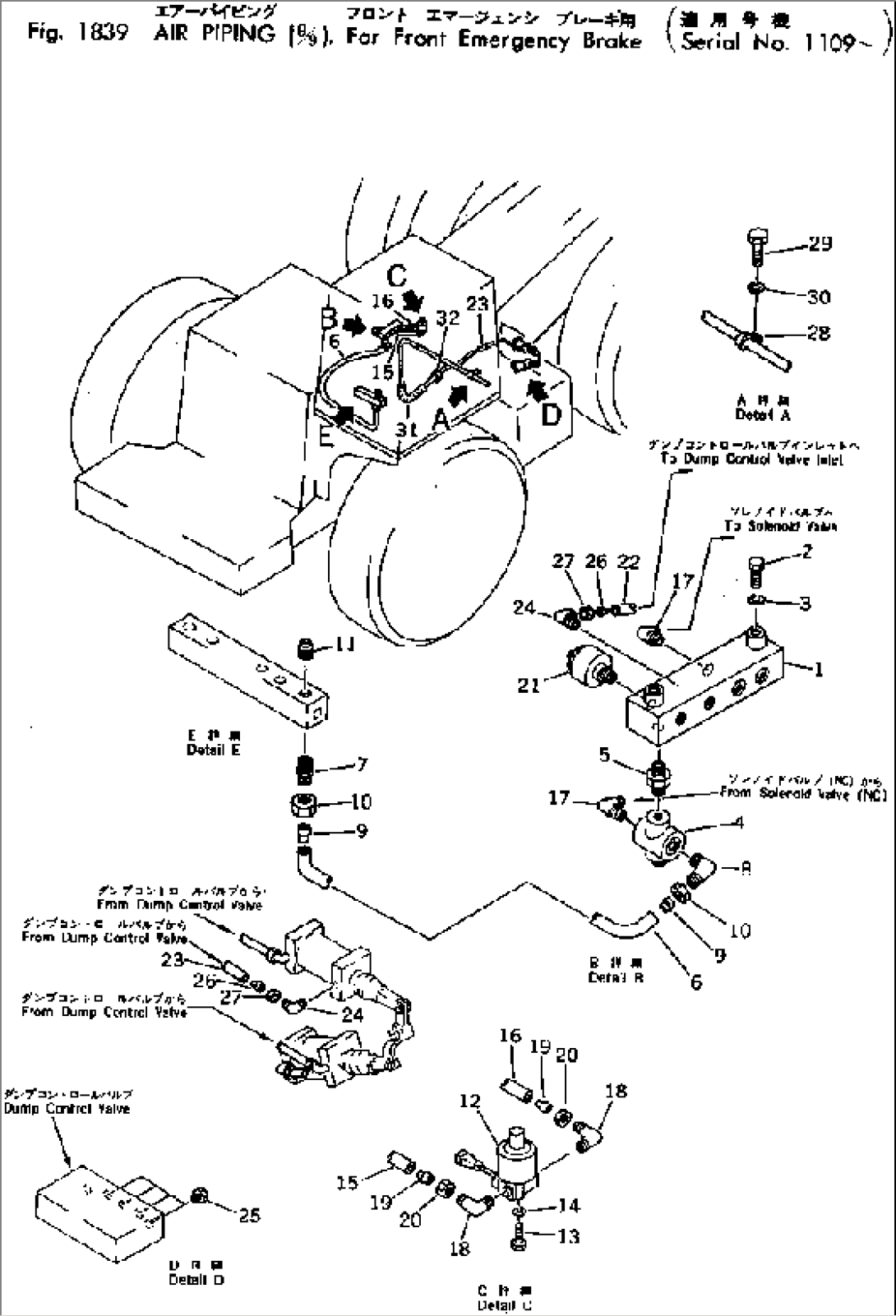

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-35-11930 | JOINT | 1109- | |
| 2 | 01010-51020 | BOLT | 1109- | |
| 3 | 01602-21030 | WASHER | 1109- | |
| 4 | 281-34-12300 | VALVE ASS'Y,CHECK | 1109- | |
| 5 | 07325-10300 | NIPPLE | 1109- | |
| 6 | 07822-00625 | TUBE | 1109- | |
| 7 | 07836-00613 | CONNECTOR | 1109- | |
| 8 | 07834-00617 | ELBOW | 1109- | |
| 9 | 07831-00612 | SLEEVE | 1109- | |
| 10 | 07832-00614 | NUT | 1109- | |
| 11 | 07042-20211 | PLUG | 1109- | |
| 12 | 569-35-11410 | SOLENOID VALVE ASS'Y | 1109- | |
| 13 | 01010-50616 | BOLT | 1109- | |
| 14 | 01602-20619 | WASHER | 1109- | |
| 15 | 07822-00603 | TUBE | 1109- | |
| 16 | 07822-00604 | TUBE | 1109- | |
| 17 | 07834-00617 | ELBOW | 1109- | |
| 18 | 07834-00613 | ELBOW | 1109- | |
| 19 | 07831-00612 | SLEEVE | 1109- | |
| 20 | 07832-00614 | NUT | 1109- | |
| 21 | 567-35-11610 | SWITCH,STOP LIGHT | 1109- | |
| 22 | 07822-00425 | TUBE | 1109- | |
| 23 | 07822-00450 | TUBE | 1109- | |
| 24 | 07834-00413 | ELBOW | 1109- | |
| 25 | 07836-00410 | CONNECTOR | 1109- | |
| 26 | 07831-00411 | SLEEVE | 1109- | |
| 27 | 07832-00410 | NUT | 1109- | |
| 28 | 08036-01814 | CLIP | 1109- | |
| 29 | 01010-51016 | BOLT | 1109- | |
| 30 | 01602-21030 | WASHER | 1109- | |
| 31 | 391-35-11820 | TUBE | 1109- | |
| 32 | 08034-00536 | BAND | 1109- |
