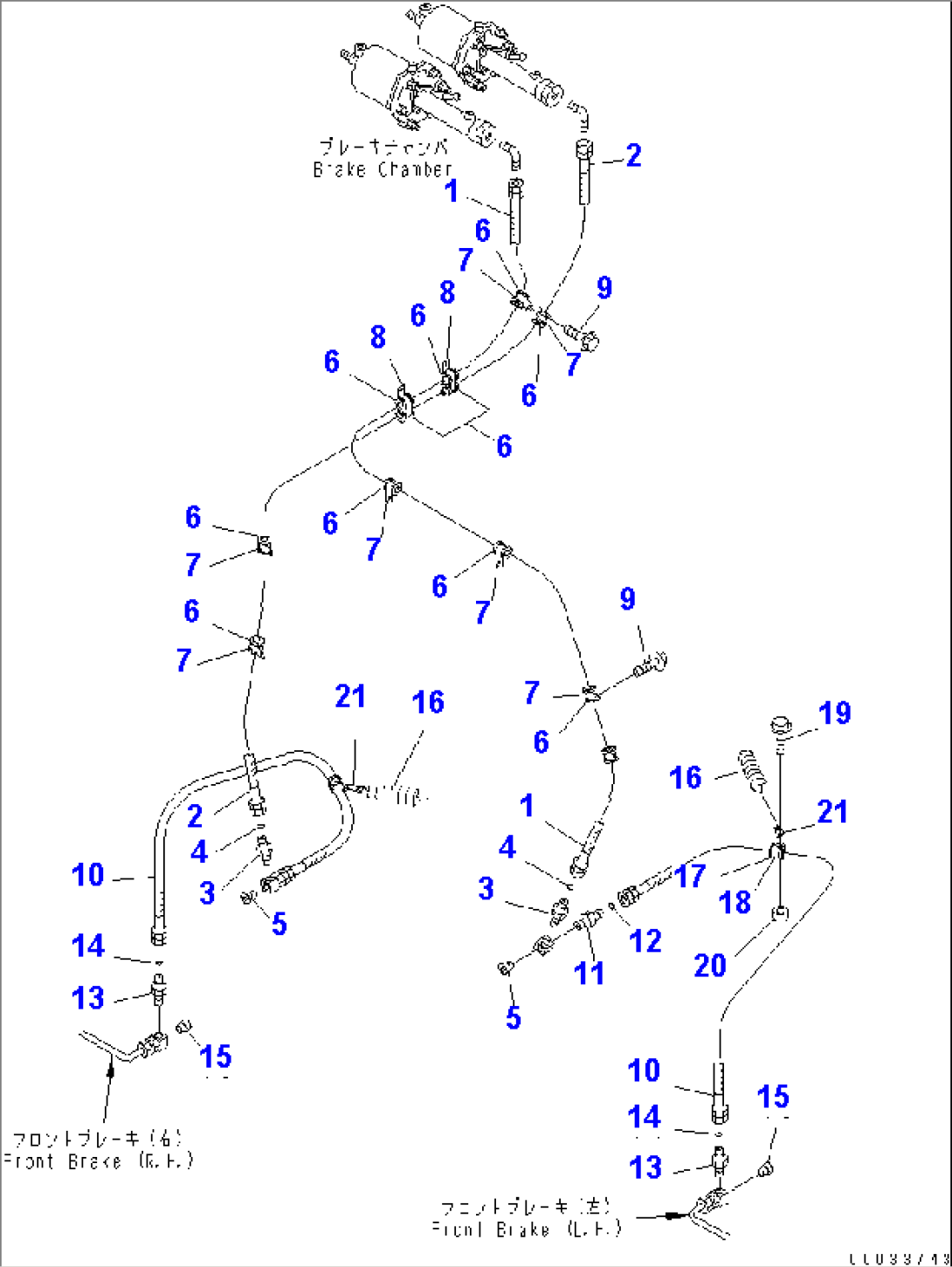

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02753-00330 | HOSE | 1601- | |
| 2 | 02753-00319 | HOSE | 1601- | |
| 3 | 20U-62-42230 | CONNECTOR | 1601- | |
| 4 | 02896-21009 | O-RING | 1601- | |
| 5 | 07043-70211 | PLUG | 1601- | |
| 6 | 566-06-41290 | INSULATOR | 1601- | |
| 7 | 08036-03014 | CLIP | 1601- | |
| 8 | 582-35-11170 | CLIP | 1001- | |
| 9 | 01435-01016 | BOLT | 1601- | |
| 10 | 02765-B0308 | HOSE | 1601- | |
| 11 | 20U-62-42230 | CONNECTOR | 1601- | |
| 12 | 02896-21009 | O-RING | 1601- | |
| 13 | 20U-62-42230 | CONNECTOR | 1601- | |
| 14 | 02896-21009 | O-RING | 1601- | |
| 15 | 07043-70211 | PLUG | 1601- | |
| 16 | 566-43-11290 | SPRING | 1601- | |
| 17 | 566-06-41290 | INSULATOR | 1001- | |
| 18 | 04434-52512 | CLIP | 1605- | |
| 18 | 08036-03014 | CLIP | 1001-1604 | |
| 19 | 01435-01016 | BOLT | 1001- | |
| 20 | 01580-11008 | NUT | 1001- | |
| 21 | 567-35-42330 | PLATE | 1001- |
