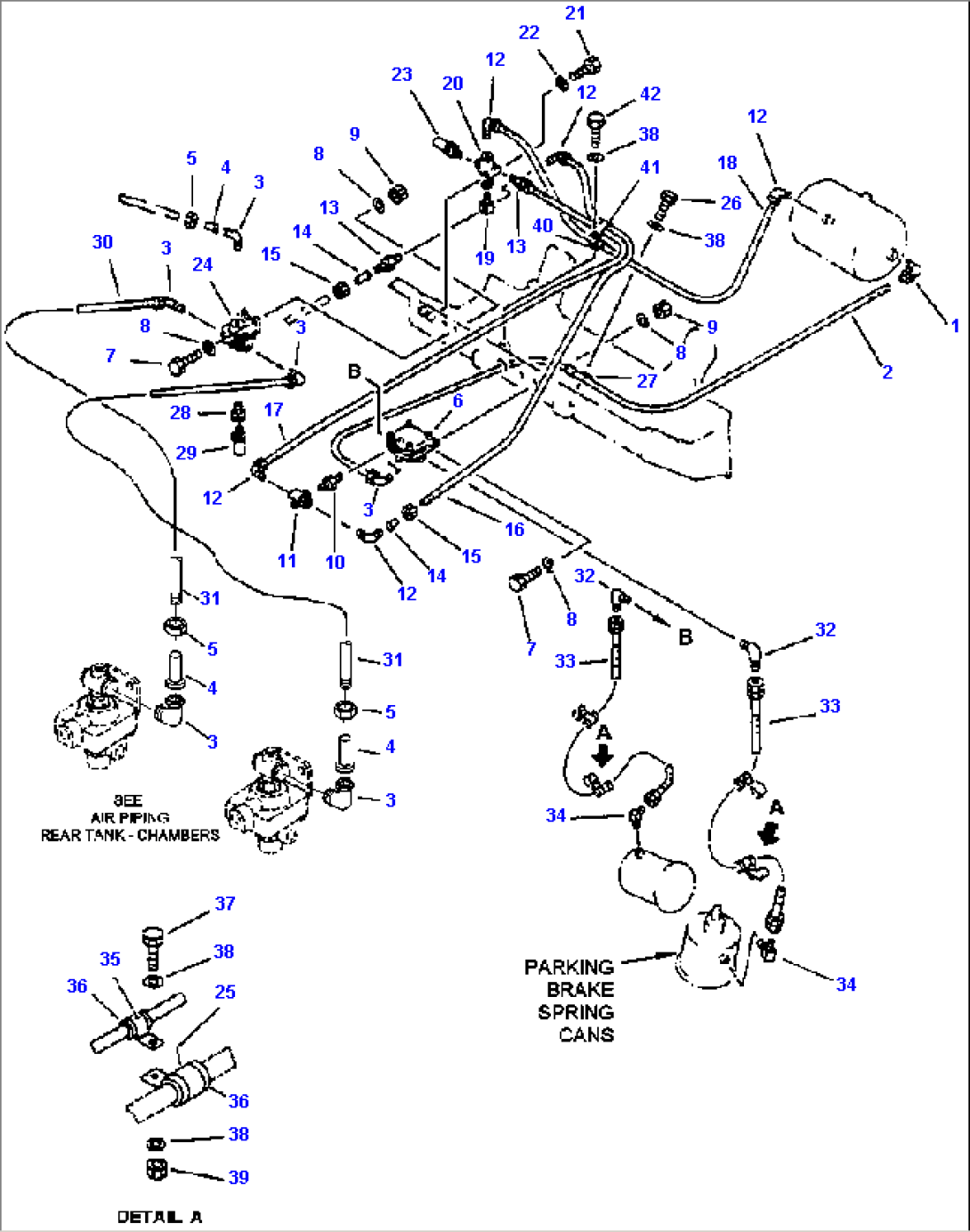

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 411-44-11440 | ELBOW | | |
| 2 | 07822-00808 | TUBE (1) | | |
| 2 | 07822-00806 | TUBE (2) | | |
| 3 | 07834-00817 | ELBOW | | |
| 4 | 07831-00813 | SLEEVE | | |
| 5 | 07832-00817 | NUT | | |
| 6 | 565-44-11200 | PARKING RELAY VALVE ASSEMBLY (SEE INDEX) | | |
| 7 | 01010-80830 | CAPSCREW | | |
| 8 | 01643-30823 | FLAT WASHER | | |
| 9 | 01580-10806 | NUT | | |
| 10 | 07325-10200 | NIPPLE | | |
| 11 | 565-81-16520 | CHECK VALVE ASSEMBLY (SEE INDEX) | | |
| 12 | 07834-00413 | ELBOW | | |
| 13 | 07836-00413 | CONNECTOR | | |
| 14 | 07831-00411 | SLEEVE | | |
| 15 | 07832-00410 | NUT | | |
| 16 | 07822-00408 | TUBE | | |
| 17 | 07822-00407 | TUBE | | |
| 18 | 07822-00406 | TUBE | | |
| 19 | 561-03-31910 | TEE | | |
| 20 | 561-35-32400 | VALVE, PARKING BRAKE | | |
| 21 | 01010-80650 | CAPSCREW | | |
| 22 | 01643-30623 | FLAT WASHER | | |
| 23 | 07812-00146 | MUFFLER | | |
| 24 | 281-34-12501 | VALVE, QUICK RELEASE | | |
| 24 | 281-34-05030 | KIT, QUICK RELEASE VALVE SERVICE | | |
| 25 | 281-01-13180 | CLIP | | |
| 26 | 01010-81016 | CAPSCREW | | |
| 27 | 08036-01814 | CLIP | | |
| 28 | 07326-10302 | ADAPTER | | |
| 29 | 07812-00246 | MUFFLER | | |
| 30 | 07822-00805 | TUBE (1) | | |
| 30 | 07822-00806 | TUBE (2) | | |
| 31 | 07822-00807 | TUBE (1) | | |
| 31 | 07822-00808 | TUBE (2) | | |
| 32 | 566-35-14380 | ELBOW | | |
| 33 | 07102-20316 | HOSE | | |
| 34 | 566-35-14350 | ELBOW | | |
| 35 | 08036-02514 | CLIP | | |
| 36 | 566-06-41290 | INSULATOR | | |
| 37 | 01010-81025 | CAPSCREW | | |
| 38 | 01643-31032 | FLAT WASHER | | |
| 39 | 01580-11008 | NUT | | |
| 40 | 425-70-13120 | CLIP | | |
| 41 | 421-46-12980 | CLIP | | |
| 42 | 01010-81020 | CAPSCREW | | |
| NS|47 | | NOTE: (1) EFFECTIVE THRU A10270. | | |
| NS|48 | | (2) EFFECTIVE WITH A10271. | | |
