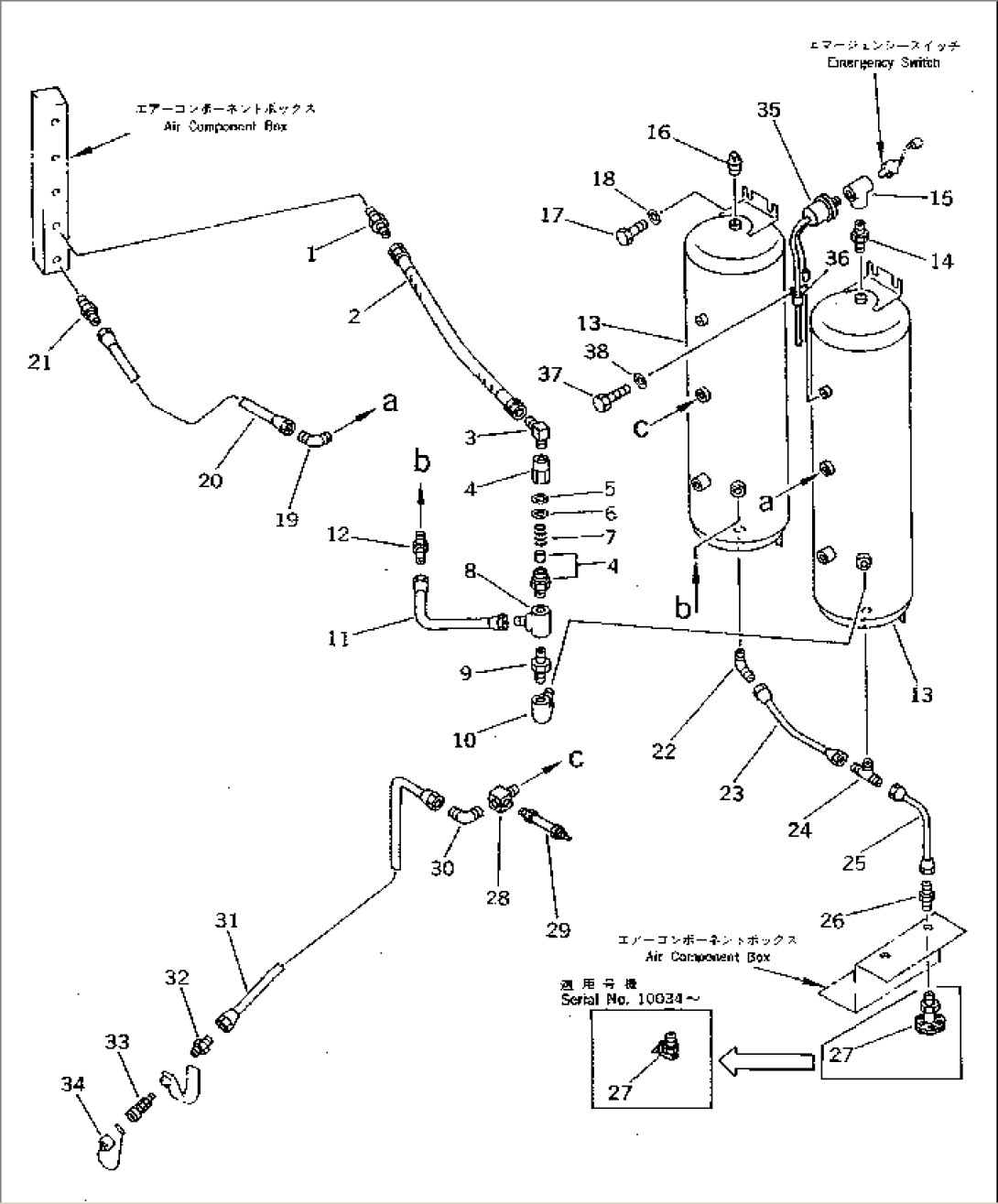

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07238-10522 | CONNECTOR | 10001-10499 | |
| 2 | 07102-20506 | HOSE | 10001-10499 | |
| 3 | 287-04-11120 | ELBOW | 10001-10499 | |
| 4 | 281-34-11511 | VALVE ASS'Y,CHECK | 10001-10499 | |
| 5 | 281-34-11540 | SEAT (K13) | 10001-10499 | |
| 6 | 281-34-11550 | VALVE (K13) | 10001-10499 | |
| 7 | 281-34-11561 | SPRING (K13) | 10001-10499 | |
| 8 | 07324-90400 | TEE | 10001-10499 | |
| (\2\07324-10400) | TEE | (10001-.) | ||
| 9 | 07325-30400 | NIPPLE | 10001-10499 | |
| (\2\07325-10400) | NIPPLE | (10001-.) | ||
| 10 | 07323-B0400 | ELBOW | 10001-10499 | |
| (\2\07323-30400) | ELBOW | (10001-.) | ||
| 11 | 427-35-11331 | TUBE | 10001-10499 | |
| 12 | 07214-71521 | CONNECTOR | 10001-10499 | |
| (\2\07214-51521) | CONNECTOR | (10001-.) | ||
| 13 | 427-35-15122 | TANK,WET AIR | 10001-10499 | |
| 14 | 07325-30100 | NIPPLE | 10001-10499 | |
| (\2\07325-10100) | NIPPLE | (10001-.) | ||
| 15 | 07324-90100 | TEE | 10001-10499 | |
| (\2\07324-10100) | TEE | (10001-.) | ||
| 16 | 07042-00108 | PLUG | 10001-@ | |
| 17 | 01010-51225 | BOLT | 10001-10499 | |
| 18 | 01643-31232 | WASHER | 10001-10499 | |
| 19 | 07217-71217 | ELBOW | 10001-10499 | |
| (\2\07217-51217) | ELBOW | (10001-.) | ||
| 20 | 427-35-11221 | TUBE | 10001-10499 | |
| 21 | 07214-71217 | CONNECTOR | 10001-10499 | |
| (\2\07214-51217) | CONNECTOR | (10001-.) | ||
| 22 | 07217-70712 | ELBOW | 10001-10499 | |
| (\2\07217-50712) | ELBOW | (10001-.) | ||
| 23 | 427-35-11271 | TUBE | 10001-10499 | |
| 24 | 07218-70710 | TEE | 10001-10499 | |
| (\2\07218-50710) | TEE | (10001-.) | ||
| 25 | 427-35-11282 | TUBE | 10001-10499 | |
| 26 | 22W-35-12340 | NIPPLE | 10001-10499 | |
| 27 | 22X-44-11210 | VALVE | 10034-@ | |
| 565-45-12700 | COCK ASS'Y | 10001-10033 | ||
| 28 | 427-35-11350 | JOINT | 10001-10499 | |
| 29 | 566-35-42350 | VALVE,SAFETY | 10001-10499 | |
| 30 | 07217-71013 | ELBOW | 10001-10499 | |
| (\2\07217-51013) | ELBOW | (10001-.) | ||
| 31 | 427-35-11232 | TUBE | 10001-10499 | |
| 32 | 07214-71013 | CONNECTOR | 10001-10499 | |
| (\2\07214-51013) | CONNECTOR | (10001-.) | ||
| 33 | 07880-10500 | SOCKET,COUPLING | 10001-@ | |
| 34 | 426-35-15410 | CAP | 10001-@ | |
| 35 | (7861-99-1400) | SENSOR,AIR GAUGE | 10001-@ | |
| 36 | 198-904-4280 | CLIP | 10001-10499 | |
| 37 | 01010-51020 | BOLT | 10001-10499 | |
| 38 | 01643-31032 | WASHER | 10001-10499 |
