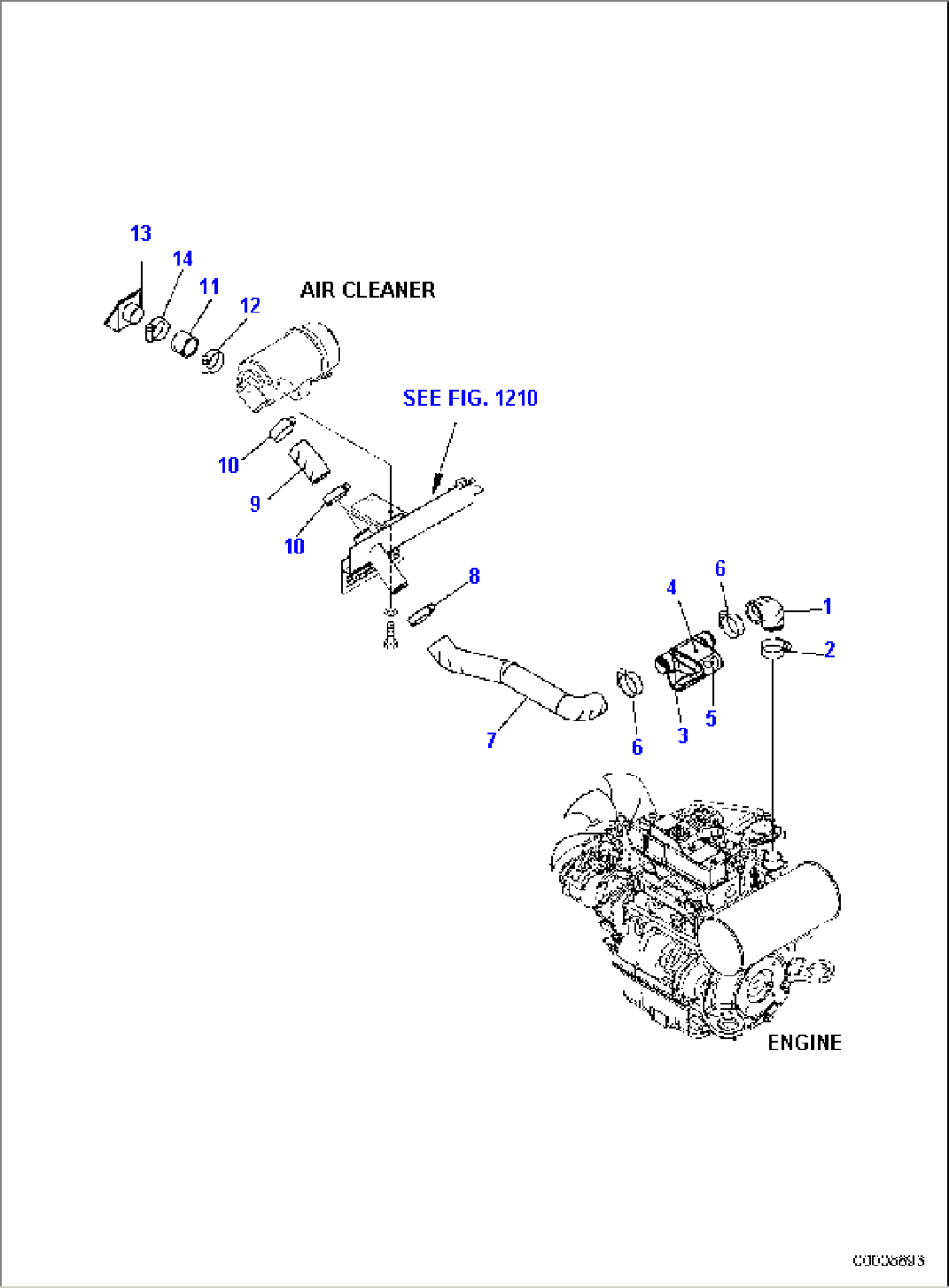

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-01-21270 | HOSE | F00103- | |
| 2 | 07289-00070 | CLAMP | F00103- | |
| 3 | 22L-01-21611 | RESONATOR | F00103- | |
| 4 | 22L-01-21651 | SHEET | F00103- | |
| 5 | 22L-01-21671 | SHEET | F00103- | |
| 6 | 07289-00055 | CLAMP | F00103- | |
| 7 | 22L-01-21261 | HOSE | F00103- | |
| 8 | 07289-00055 | CLAMP | F00103- | |
| 9 | 22L-01-21231 | HOSE | F00103- | |
| 10 | 07289-00055 | CLAMP | F00103- | |
| 11 | 22L-01-21242 | HOSE | F00103- | |
| 12 | 07289-00055 | CLAMP | F00103- | |
| 13 | 22L-01-R1661 | PIPE | F00103- | |
| 14 | 07289-00055 | CLAMP | F00103- | |
| SEE FIGURE 1210 |
