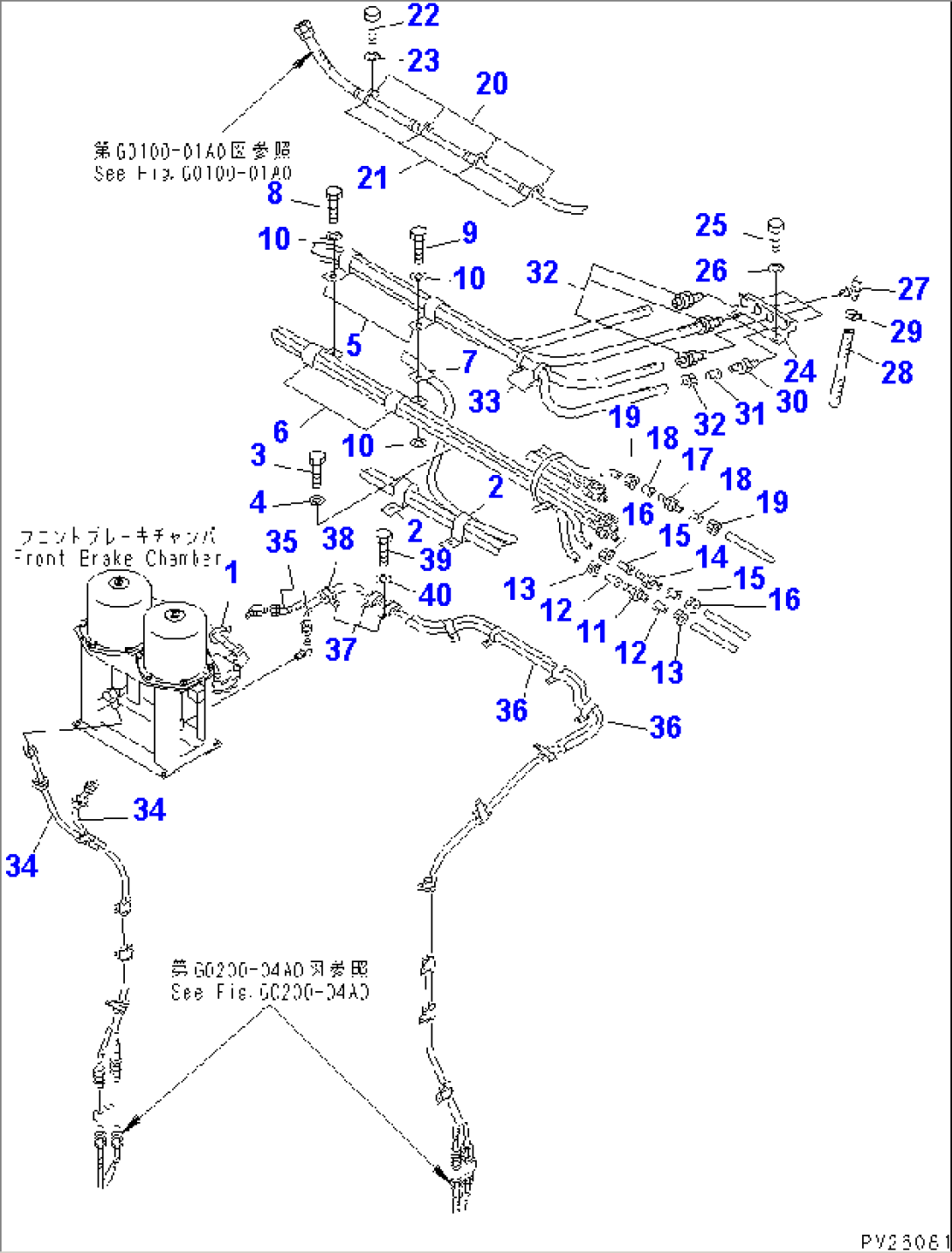

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08034-00519 | BAND | 4001- | |
| 2 | 285-02-11320 | CLIP | 4001- | |
| 3 | 01010-81016 | BOLT | 4001- | |
| 4 | 01643-31032 | WASHER | 4001- | |
| 5 | 08036-02514 | CLIP | 4001- | |
| 6 | 08036-03014 | CLIP | 4001- | |
| 7 | 423-35-12970 | CLIP | 4001- | |
| 8 | 01010-81020 | BOLT | 4001- | |
| 9 | 01010-81025 | BOLT | 4001- | |
| 10 | 01643-31032 | WASHER | 4001- | |
| 11 | 07837-00410 | CONNECTOR | 4001- | |
| 12 | 07831-00411 | SLEEVE | 4001- | |
| 13 | 07832-00410 | NUT | 4001- | |
| 14 | 07837-00614 | CONNECTOR | 4001- | |
| 15 | 07831-00612 | SLEEVE | 4001- | |
| 16 | 07832-00614 | NUT | 4001- | |
| 17 | 07837-00817 | CONNECTOR | 4001- | |
| 18 | 07831-00813 | SLEEVE | 4001- | |
| 19 | 07832-00817 | NUT | 4001- | |
| 20 | 285-02-11320 | CLIP | 4001- | |
| 21 | 566-06-41290 | INSULATOR | 4001- | |
| 22 | 01010-81016 | BOLT | 4001- | |
| 23 | 01643-31032 | WASHER | 4001- | |
| 24 | 561-35-62342 | BRACKET | 4001- | |
| 25 | 01010-81030 | BOLT | 4001- | |
| 26 | 01643-31032 | WASHER | 4001- | |
| 27 | 23S-44-11330 | VALVE | 4001- | |
| 28 | 07270-00810 | TUBE | 4001- | |
| 29 | 07281-00137 | CLAMP | 4001- | |
| 30 | 07836-00613 | CONNECTOR | 4001- | |
| 31 | 07831-00612 | SLEEVE | 4001- | |
| 32 | 07832-00614 | NUT | 4001- | |
| 33 | 08034-00519 | BAND | 4001- | |
| 34 | 07121-00319 | HOSE | 4001- | |
| 35 | 07121-00346 | HOSE | 4001- | |
| 36 | 561-35-62850 | TUBE | 4001- | |
| 37 | 582-35-11170 | CLIP | 4001- | |
| 38 | 566-06-41290 | INSULATOR | 4001- | |
| 39 | 01010-81225 | BOLT | 4001- | |
| 40 | 01643-31232 | WASHER | 4001- |
