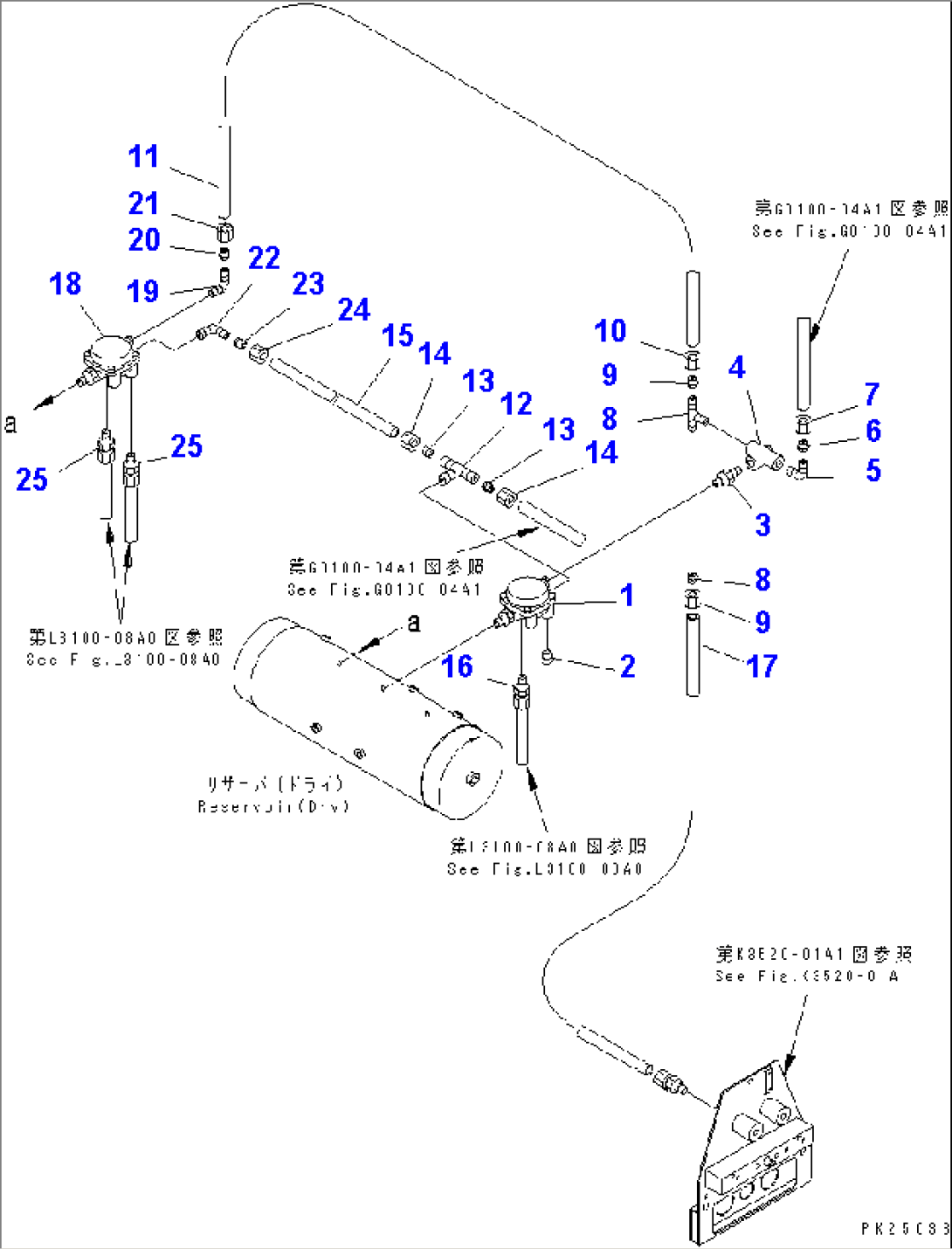

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (567-35-11201) | RELAY VALVE ASS'Y | 1001-1200 | |
| 2 | 07043-70211 | PLUG | 1001-@ | |
| 3 | 430-07-27120 | NIPPLE | 1001-@ | |
| 4 | (281-34-12300) | VALVE ASS'Y | 1001-@ | |
| 5 | 07834-00617 | ELBOW | 1001-@ | |
| 6 | 07831-00612 | SLEEVE | 1001-@ | |
| 7 | 07832-00614 | NUT | 1001-@ | |
| 8 | 07835-00617 | TEE | 1001-@ | |
| 9 | 07831-00612 | SLEEVE | 1001-@ | |
| 10 | 07832-00614 | NUT | 1001-@ | |
| 11 | 07822-00603 | TUBE | 1001-1200 | |
| 12 | 07835-00613 | TEE | 1001-@ | |
| 13 | 07831-00612 | SLEEVE | 1001-@ | |
| 14 | 07832-00614 | NUT | 1001-@ | |
| 15 | 07822-00602 | TUBE | 1001-@ | |
| 16 | 281-35-19590 | CONNECTOR | 1001-@ | |
| 17 | 07822-00611 | TUBE | 1001-1200 | |
| 18 | (567-35-11201) | RELAY VALVE ASS'Y | 1001-1200 | |
| 19 | 07834-00613 | ELBOW | 1001-@ | |
| 20 | 07831-00612 | SLEEVE | 1001-@ | |
| 21 | 07832-00614 | NUT | 1001-@ | |
| 22 | 07834-00613 | ELBOW | 1001-@ | |
| 23 | 07831-00612 | SLEEVE | 1001-@ | |
| 24 | 07832-00614 | NUT | 1001-@ | |
| 25 | 281-35-19590 | CONNECTOR | 1001-@ |
