| Item | Part No. | Part Name | Qty | Serial No. |

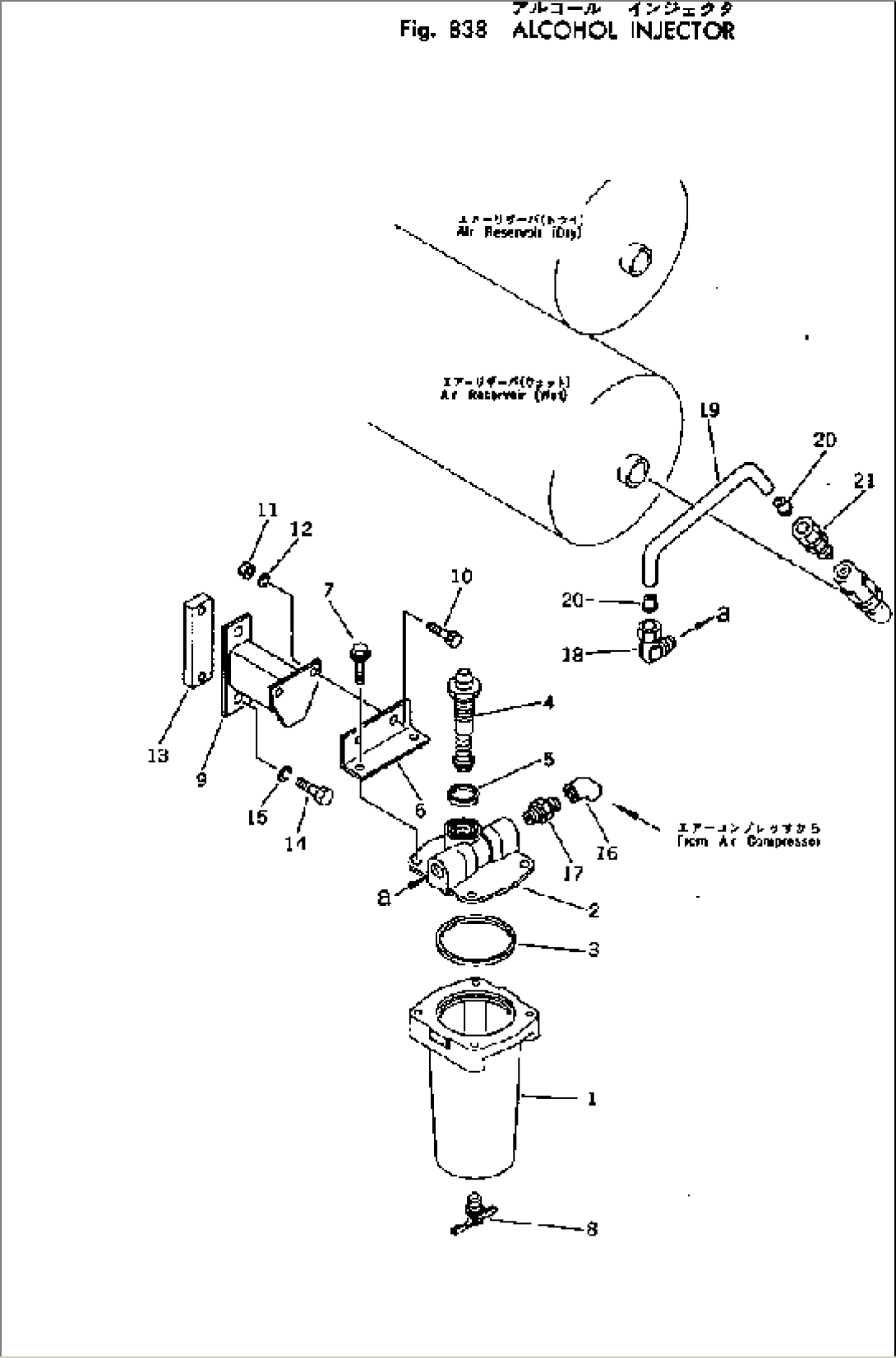

| 566-92-11100 | INJECTOR ASS'Y | 1002- | ||
| 1 | 566-92-11170 | RESERVOIR | 1002- | |
| 2 | 566-92-11130 | COVER | 1002- | |
| 3 | 566-92-11160 | SEAL | 1002- | |
| 4 | 566-92-11110 | VALVE,SAFETY | 1002- | |
| 5 | 566-92-11120 | SEAL | 1002- | |
| 6 | 566-92-11140 | FLANGE | 1002- | |
| 7 | 566-92-11150 | SCREW | 1002- | |
| 8 | 566-92-11180 | VALVE | 1002- | |
| 9 | 567-95-17110 | BRACKET | 1002- | |
| 10 | 01010-50820 | BOLT | 1002- | |
| 11 | 01580-10806 | NUT | 1002- | |
| 12 | 01602-20825 | WASHER | 1002- | |
| 13 | 597-35-11510 | SEAT | 1002- | |
| 14 | 01010-51020 | BOLT | 1002- | |
| 15 | 01602-21030 | WASHER | 1002- | |
| 16 | 07323-50400 | ELBOW | 1002- | |
| 17 | 07325-10400 | NIPPLE | 1002- | |
| 18 | 411-44-15240 | ELBOW | 1002- | |
| 19 | 568-35-13660 | TUBE | 1002- | |
| 20 | 567-95-17120 | RING | 1002- | |
| 21 | 411-44-15170 | JOINT | 1002- |
