| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6732-21-5530 | PLUG | ||
| 2 | 6732-21-5491 | TUBE | ||
| 3 | 6754-21-5610 | GAUGE | ||
| 4 | 6755-21-5810 | BRACE | ||
| 5 | 6755-21-5820 | BRACE | ||
| 6 | 01435-60816 | BOLT | ||
| 7 | 04434-51208 | CLIP | ||
| 8 | 04434-51708 | CLIP | ||
| 9 | 07095-40211 | CUSHION | ||
| 10 | 6732-71-3210 | NUT |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210lc 11 s/n a12001 up
- Engine
- Alg00 001001 oil level gauge
Поиск по каталогу

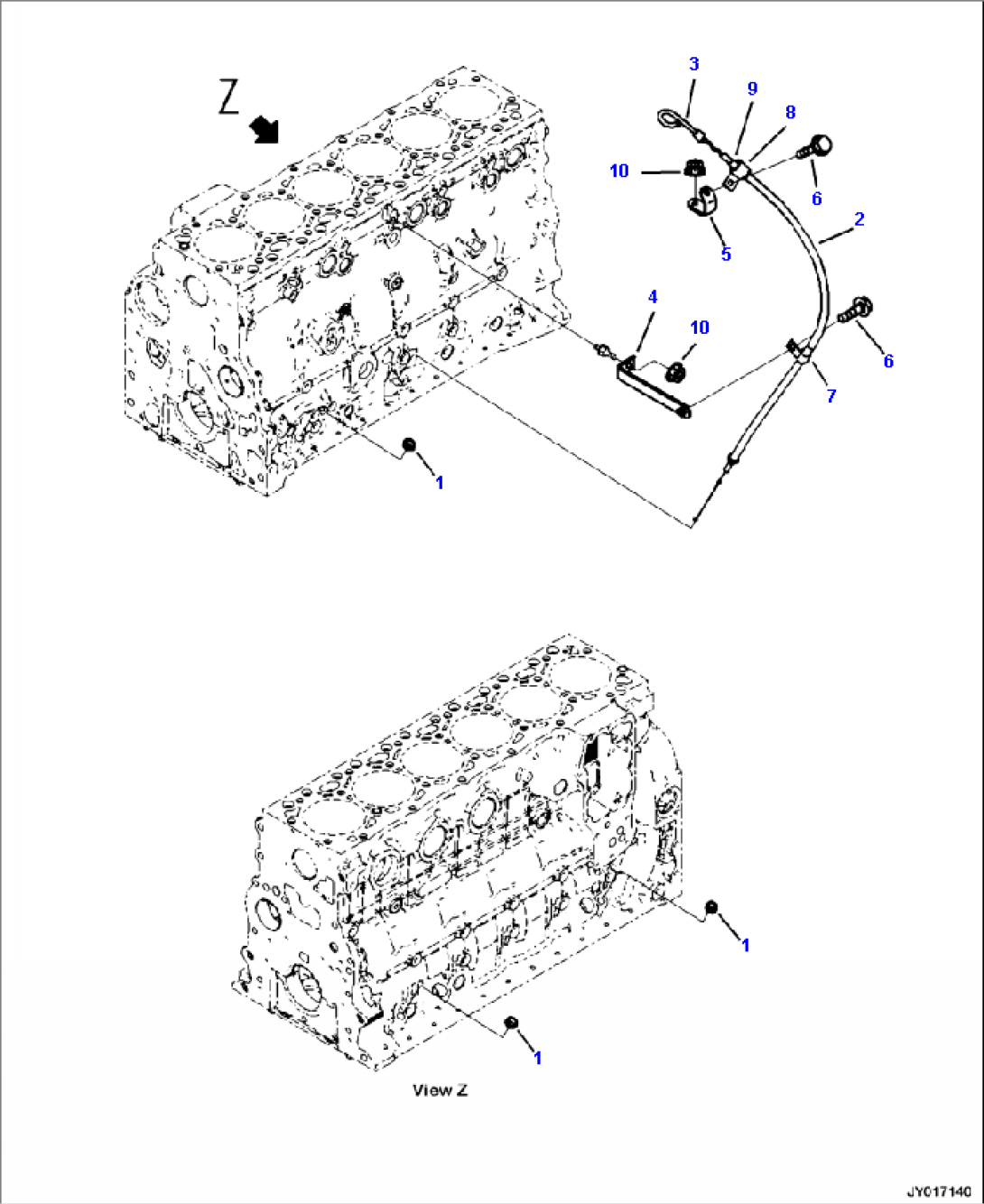

ALG00-001001 OIL LEVEL GAUGE
