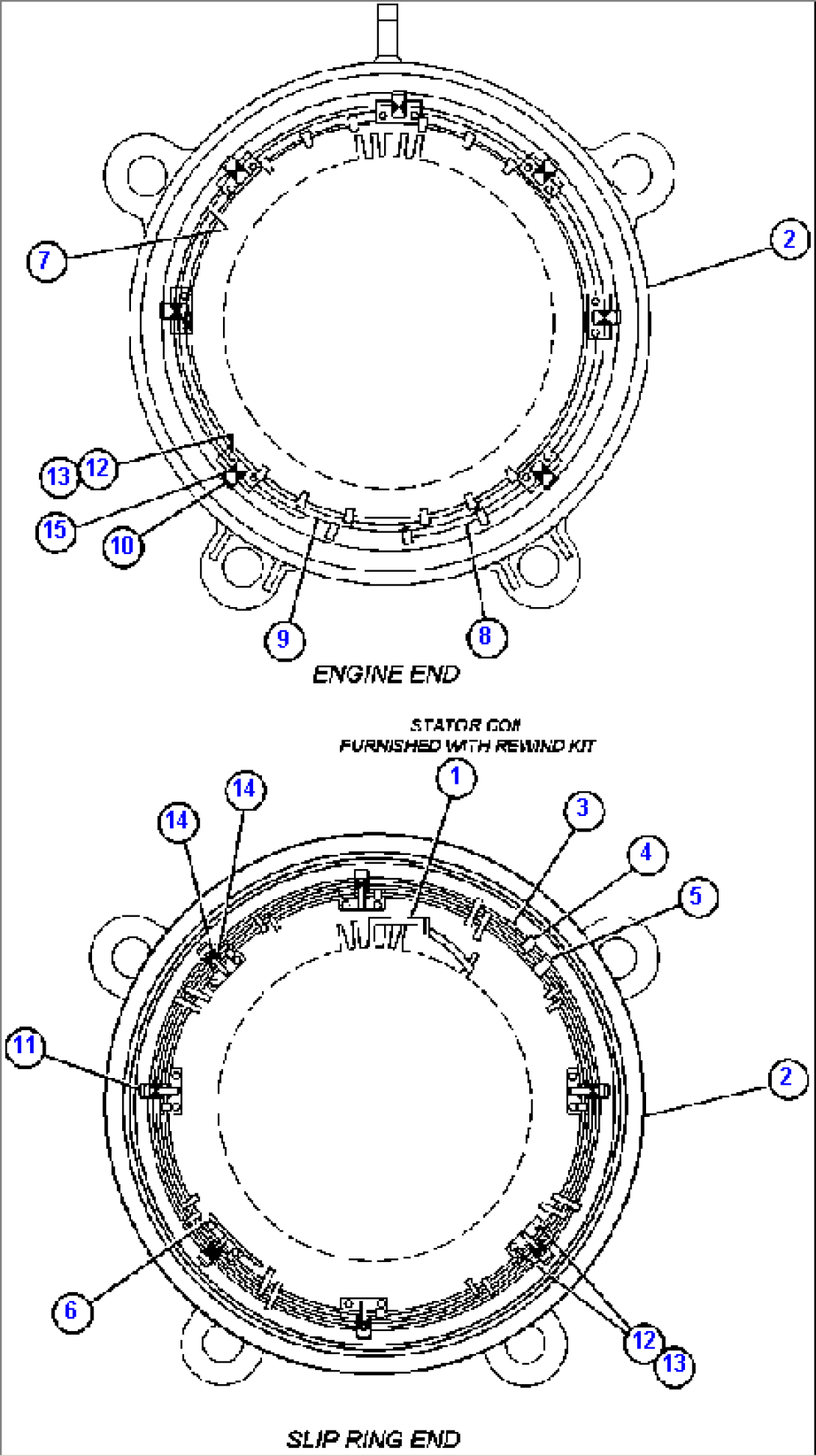

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE4253 | STATOR | ||
| 2 | VE2758 | FRAME & CORE ASSEMBLY | ||
| 3 | VE1868 | BUS RING, INSULATED | ||
| 4 | VE1869 | BUS RING, INSULATED | ||
| 5 | VE1870 | BUS RING, INSULATED | ||
| 6 | VE1865 | BUS RING | ||
| 7 | VE2759 | TIE RING, INSULATED | ||
| 8 | VE1886 | CONNECTION STRAP, INSULATED | ||
| 9 | VE1887 | CONNECTION STRAP, INSULATED | ||
| 10 | VE4342 | BRACKET, INSULATED | ||
| 11 | VE2753 | BRACKET | ||
| 12 | VE4542 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 13 | VE5185 | FLAT WASHER | ||
| 14 | VE2861 | INSULATION | ||
| 15 | VE2860 | INSULATION |
