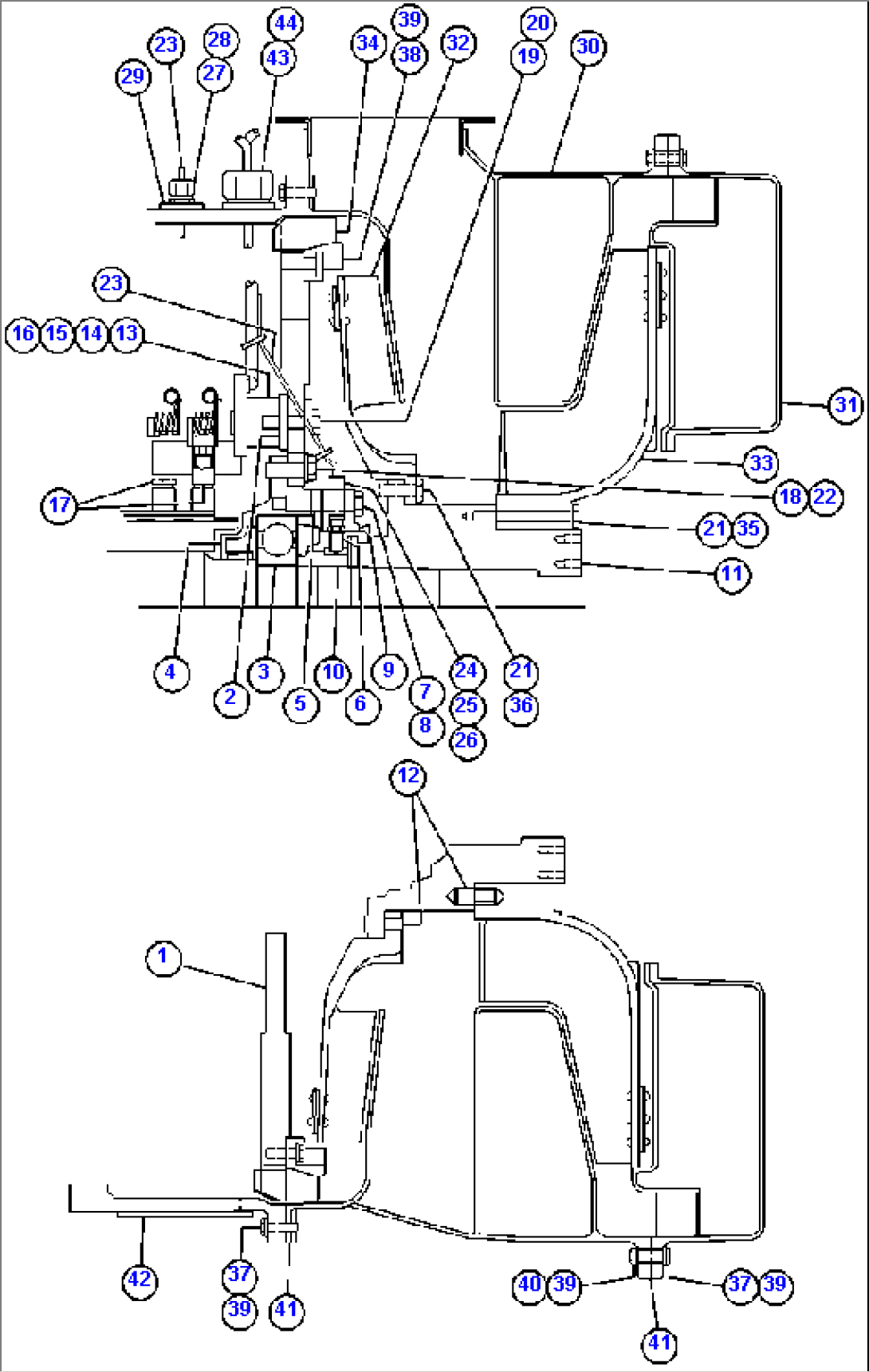

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE4247 | HEAD, FRAME | ||
| 2 | VJ6542 | BLOCK | ||
| 3 | VJ2178 | BEARING | ||
| 4 | VE3621 | BEARING HOUSING | ||
| 5 | VE4248 | GASKET | ||
| 6 | PB0101 | MAGNETIC PICKUP, SPEED SENSOR | ||
| 7 | C1633 | CAPSCREW - 5/8" - 11NC X 2 3/4" | ||
| 8 | VE5184 | FLAT WASHER - 5/8" | ||
| 9 | VE3039 | BEARING CAP | ||
| 10 | VJ6365 | SPEED SENSOR HUB | ||
| 11 | VE3638 | HUB, REAR | ||
| 12 | VE3620 | PIN | ||
| 13 | VJ1028 | SUPPORT W/INSULATED STUD AND KEY | ||
| 14 | VJ2157 | KEY | ||
| 15 | VJ1028 | SUPPORT W/INSULATED STUD AND KEY | ||
| 16 | VJ2157 | KEY | ||
| 17 | VE4034 | CARBON BRUSH | ||
| 18 | VE4992 | CAPSCREW | ||
| 19 | VE4993 | CAPSCREW | ||
| 20 | VE4631 | FLAT WASHER - 5/8" | ||
| 21 | VE5185 | FLAT WASHER | ||
| 22 | VE5184 | FLAT WASHER - 5/8" | ||
| 23 | VJ8357 | CABLE | ||
| 24 | VJ0974 | CONNECTOR | ||
| 25 | VJ1121 | CLAMP, CABLE | ||
| 26 | VE4485 | CEMENT | ||
| 27 | VS7922 | CONNECTOR | ||
| 28 | VE4485 | CEMENT | ||
| 29 | VE4639 | REDUCING BUSHING | ||
| 30 | VE3043 | FAN HOUSING, 1ST STAGE | ||
| 31 | VE5186 | FAN HOUSING, 2ND STAGE | ||
| 32 | VE3042 | IMPELLER (ALTERNATOR) | ||
| 33 | VE3041 | IMPELLER (MOTOR) | ||
| 34 | VE4997 | BAFFLE, AIR | ||
| 35 | VE4998 | CAPSCREW - 1/2" - 13NC X 4 1/2" | ||
| 36 | VE4999 | CAPSCREW - 1/2" - 13NC X 2" | ||
| 37 | VE4500 | CAPSCREW - 3/8" - 16NC X 1 3/4" | ||
| 38 | VE5000 | CAPSCREW - 3/8" - 16NC X 2 1/4" | ||
| 39 | VE3027 | FLAT WASHER - 3/8" | ||
| 40 | VE4747 | NUT | ||
| 41 | VS7492 | ADHESIVE, RTV SILMATE | ||
| 42 | VS7945 | COVER | ||
| 43 | VE4627 | CONNECTOR | ||
| 44 | VE4485 | CEMENT |
