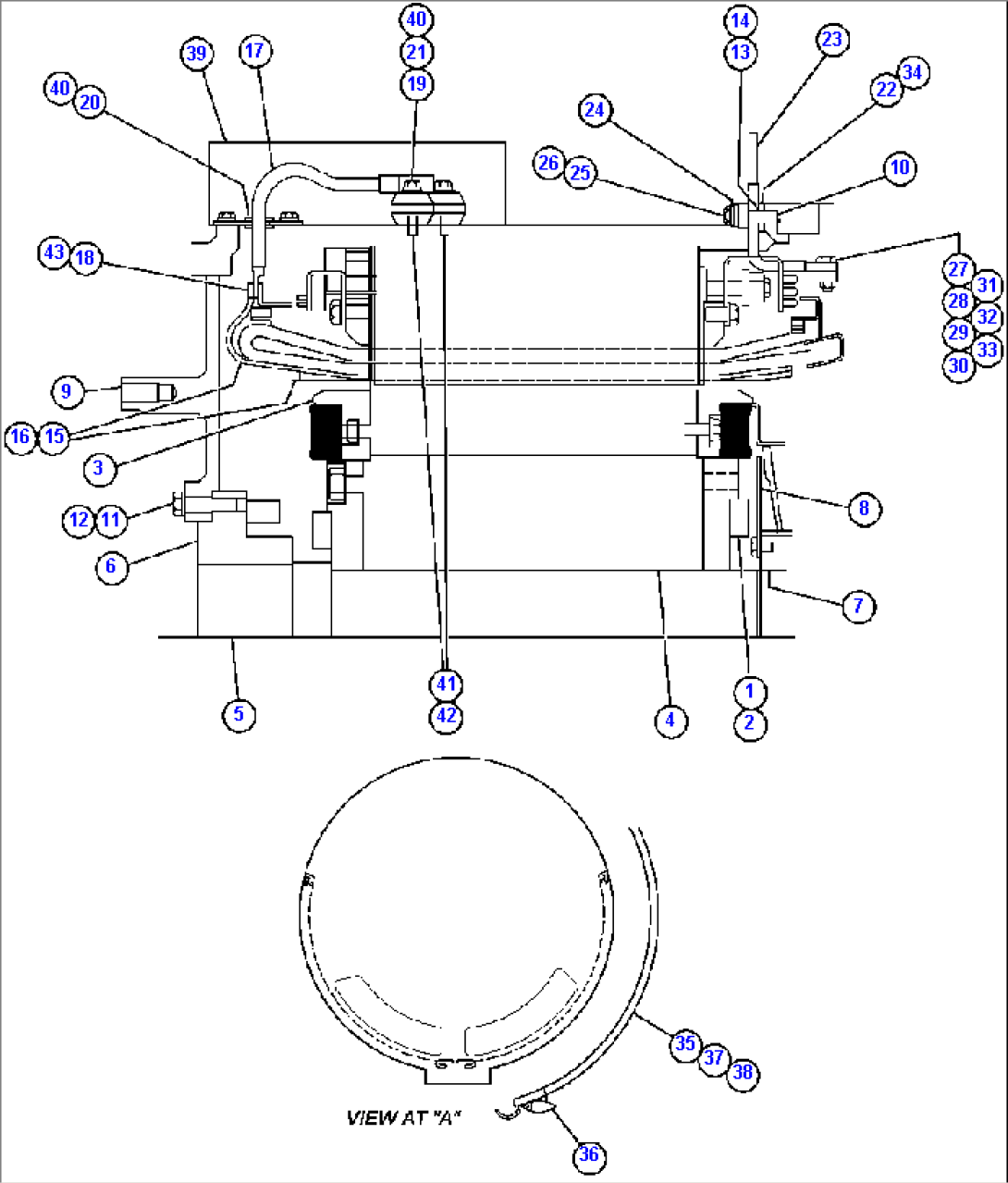

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | PB9268 | ALTERNATOR | ||
| 1 | VS8253 | BALANCE WEIGHT | ||
| 2 | VJ1071 | BALANCE WEIGHT | ||
| 3 | VS7938 | ROTOR CORE | ||
| 4 | VE4644 | CORE | ||
| 5 | BF2116 | SHAFT, ROTOR | ||
| 6 | VE0688 | END PLATE | ||
| 7 | BF1480 | COLLECTOR RING ASSEMBLY | ||
| 8 | VJ6545 | SUPPORT | ||
| 9 | BF1481 | ADAPTOR | ||
| 10 | VJ2743 | PIN, SPRING DOWEL | ||
| 11 | VN7649 | CAPSCREW - 5/16" - 18NC X 2 1/4" | ||
| 12 | VE5184 | FLAT WASHER - 5/8" | ||
| 13 | VE4489 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 14 | VE5185 | FLAT WASHER | ||
| 15 | VE3278 | REWIND KIT | ||
| 16 | VE3531 | TERTIARY REWIND | ||
| 17 | VS6837 | CABLE | ||
| 18 | VE4332 | TAPE | ||
| 19 | TC1233 | NUT | ||
| 20 | VE1200 | GROMMET | ||
| 21 | VE4515 | FLAT WASHER - 3/8" | ||
| 22 | BF2118 | CLAMP ASSEMBLY (2 PIECE) | ||
| 23 | BF1483 | TERMINAL ASSEMBLY | ||
| 24 | BF0542 | CLAMP, PLATE | ||
| 25 | VE4696 | LOCKWASHER - 5/16" | ||
| 26 | BF0543 | CAPSCREW - 5/16" - 18NC X 1 1/2" | ||
| 27 | VE4648 | FLAT WASHER - 5/16" | ||
| 28 | VE4625 | CAPSCREW - 5/16" - 18NC X 1 1/4" | ||
| 29 | VE4626 | NUT | ||
| 30 | VE3916 | PUTTY | ||
| 31 | VE4334 | TAPE, FIBERGLASS | ||
| 32 | VE4335 | TAPE, FIBERGLASS | ||
| 33 | VE3915 | VARNISH / GALLON | ||
| 34 | VE7272 | SEALER | ||
| 35 | VS7945 | COVER | ||
| 36 | VS7026 | LATCH | ||
| 37 | VS7946 | GASKET | ||
| 37 | VS7947 | GASKET | ||
| 37 | VS7948 | GASKET | ||
| 38 | VE3035 | PYTHON - #1062 | ||
| 39 | VS6838 | BOX, CONNECTOR | ||
| 40 | VE4687 | LOCKWASHER - 3/8" | ||
| 41 | VS6813 | STUD, INSULATION | ||
| 42 | VE4752 | LOCTITE - #242 | ||
| 43 | VE4333 | TAPE |
