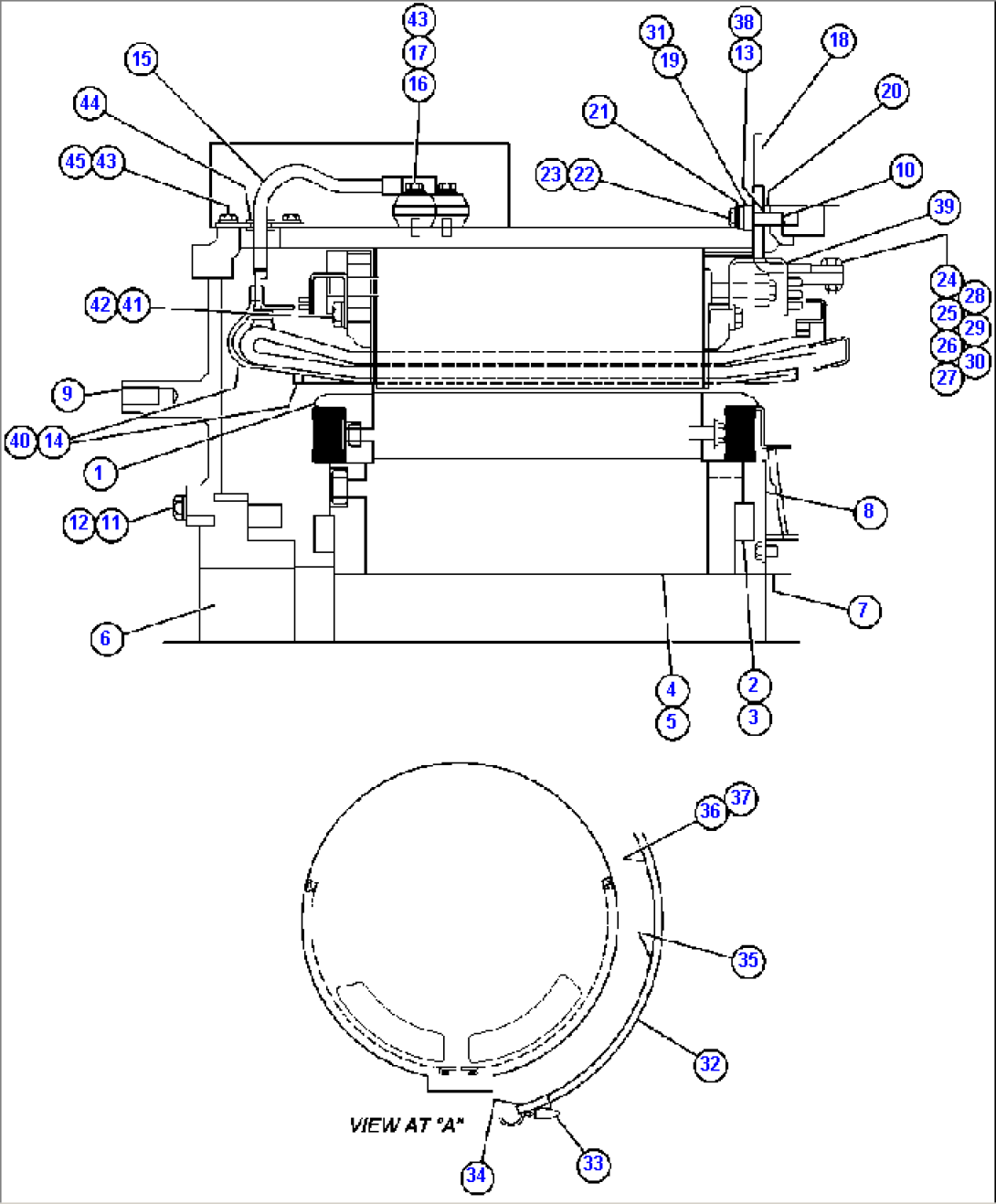

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF1959 | COIL, FIELD W/POLE PIECE | ||
| 2 | VS8253 | BALANCE WEIGHT | ||
| 3 | VJ1071 | BALANCE WEIGHT | ||
| 4 | VE4251 | ROTOR CORE W/SHAFT | ||
| 5 | VE7006 | CORE | ||
| 6 | VJ1072 | SHAFT, END PLATE & BALANCE RING ASSEMBLY | ||
| 7 | BF1480 | COLLECTOR RING ASSEMBLY | ||
| 8 | VJ6545 | SUPPORT | ||
| 9 | VS8658 | ADAPTOR ASSEMBLY (BALANCED) | ||
| 10 | VJ2743 | PIN, SPRING DOWEL | ||
| 11 | VN7649 | CAPSCREW - 5/16" - 18NC X 2 1/4" | ||
| 12 | VE5184 | FLAT WASHER - 5/8" | ||
| 13 | VE4489 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 14 | VE4253 | TERTIARY KIT | ||
| 15 | VS6837 | CABLE | ||
| 16 | TC1233 | NUT | ||
| 17 | VE4515 | FLAT WASHER - 3/8" | ||
| 18 | VE1640 | SPACER | ||
| 19 | VE1883 | TERMINAL, INSULATED | ||
| 20 | VE2200 | CLAMP | ||
| 21 | VE1641 | PLATE, CLAMPING | ||
| 22 | VE4696 | LOCKWASHER - 5/16" | ||
| 23 | VE5002 | CAPSCREW - 5/16" - 18NC X 1 3/4" | ||
| 24 | VE4343 | FLAT WASHER - 3/8" | ||
| 25 | VE4625 | CAPSCREW - 5/16" - 18NC X 1 1/4" | ||
| 26 | WA0396 | NUT | ||
| 27 | VE3916 | PUTTY | ||
| 28 | VE4334 | TAPE, FIBERGLASS | ||
| 29 | VE4335 | TAPE, FIBERGLASS | ||
| 30 | VE3915 | VARNISH / GALLON | ||
| 31 | VE7272 | SEALER | ||
| 32 | VS7945 | COVER | ||
| 33 | VD7026 | LATCH | ||
| 34 | VS7946 | GASKET | ||
| 35 | VS7947 | GASKET | ||
| 36 | VS7948 | GASKET | ||
| 37 | VE3035 | CEMENT | ||
| 38 | VE3029 | FLAT WASHER - 1/2" | ||
| 39 | VE2753 | BRACKET | ||
| 40 | VE3958 | STATOR REWIND KIT | ||
| 41 | VE4542 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 42 | VE3029 | FLAT WASHER - 1/2" | ||
| 43 | VE4687 | LOCKWASHER - 3/8" | ||
| 44 | VE1200 | GROMMET | ||
| 45 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" |
