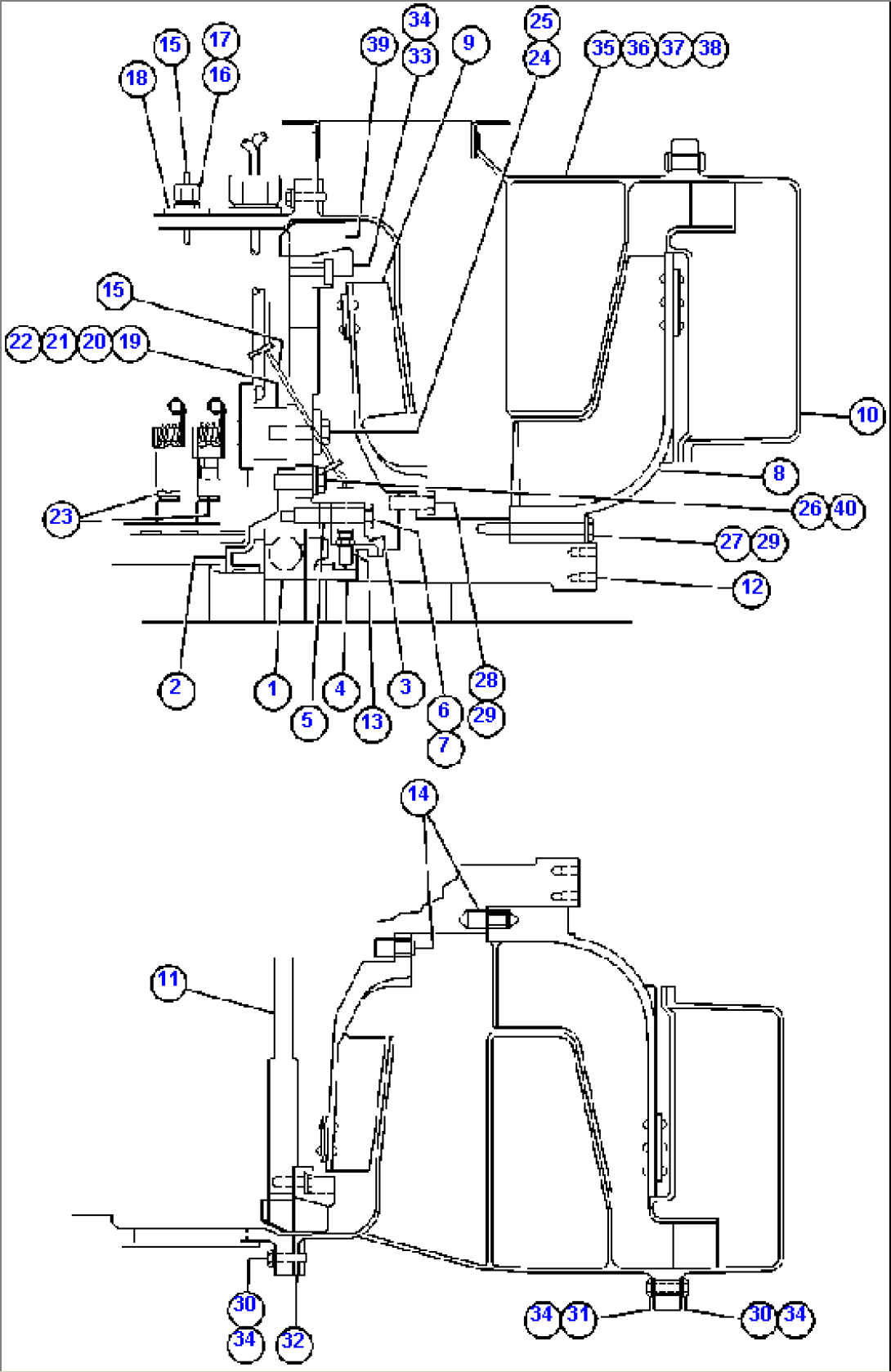

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VJ2178 | BEARING | | |
| 2 | VE3621 | HOUSING, BEARING | | |
| 3 | VE3039 | CAP, BEARING | | |
| 4 | VJ6365 | HUB, SPEED SENSOR | | |
| 5 | VE4248 | GASKET | | |
| 6 | C1633 | CAPSCREW - 5/8" - 11NC X 2 3/4" | | |
| 7 | VE5184 | FLAT WASHER - 5/8" | | |
| 8 | VE3041 | IMPELLER (MOTOR) | | |
| 9 | VE3042 | IMPELLER (ALTERNATOR) | | |
| 10 | VE8377 | HOUSING, FAN - 2ND STAGE | | |
| 11 | VE4247 | HEAD, FRAME | | |
| 12 | VE3638 | HUB, REAR | | |
| 13 | VJ0972 | MAGNETIC PICKUP, SPEED SENSOR | | |
| 14 | VE3620 | PIN | | |
| 15 | VJ8356 | CABLE | | |
| 16 | VS7922 | CONNECTOR | | |
| 17 | VE7272 | SEALER | | |
| 18 | VE4639 | BUSHING, REDUCING | | |
| 19 | VJ1028 | SUPPORT W/ INSULATED STUD AND KEY | | |
| 20 | BF3106 | KEY | | |
| 21 | VJ1028 | SUPPORT W/ INSULATED STUD AND KEY | | |
| 22 | BF3106 | KEY | | |
| 23 | VE8444 | BRUSH, CARBON | | |
| 24 | C1631 | CAPSCREW - 5/8" - 11NC X 2 1/4" (G5) | | |
| 25 | VE4631 | FLAT WASHER - 5/8" | | |
| 26 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | | |
| 27 | VE4998 | CAPSCREW - 1/2" - 13NC X 4 1/2" | | |
| 28 | VE4999 | CAPSCREW - 1/2" - 13NC X 2" | | |
| 29 | VE3029 | FLAT WASHER - 1/2" | | |
| 30 | VE4500 | CAPSCREW - 3/8" - 16NC X 1 3/4" | | |
| 31 | TC1233 | NUT - 3/8" - 16NC | | |
| 32 | VS7492 | ADHESIVE, RTV SILMATE | | |
| 33 | VE5000 | CAPSCREW - 3/8" - 16NC X 2 1/4" | | |
| 34 | VE3027 | FLAT WASHER - 3/8" | | |
| 35 | BF0930 | FAN HOUSING, 1ST STAGE | | |
| 36 | BF0931 | PANEL, AMBIENT AIR TEMPERATURE | | |
| 37 | VE5042 | BOARD, TERMINAL | | |
| 38 | BF0932 | SENSOR, THERMISTOR - 100,000 OHM | | |
| 39 | VE4997 | BAFFLE, AIR | | |
| 40 | VE5184 | FLAT WASHER - 5/8" | | |
