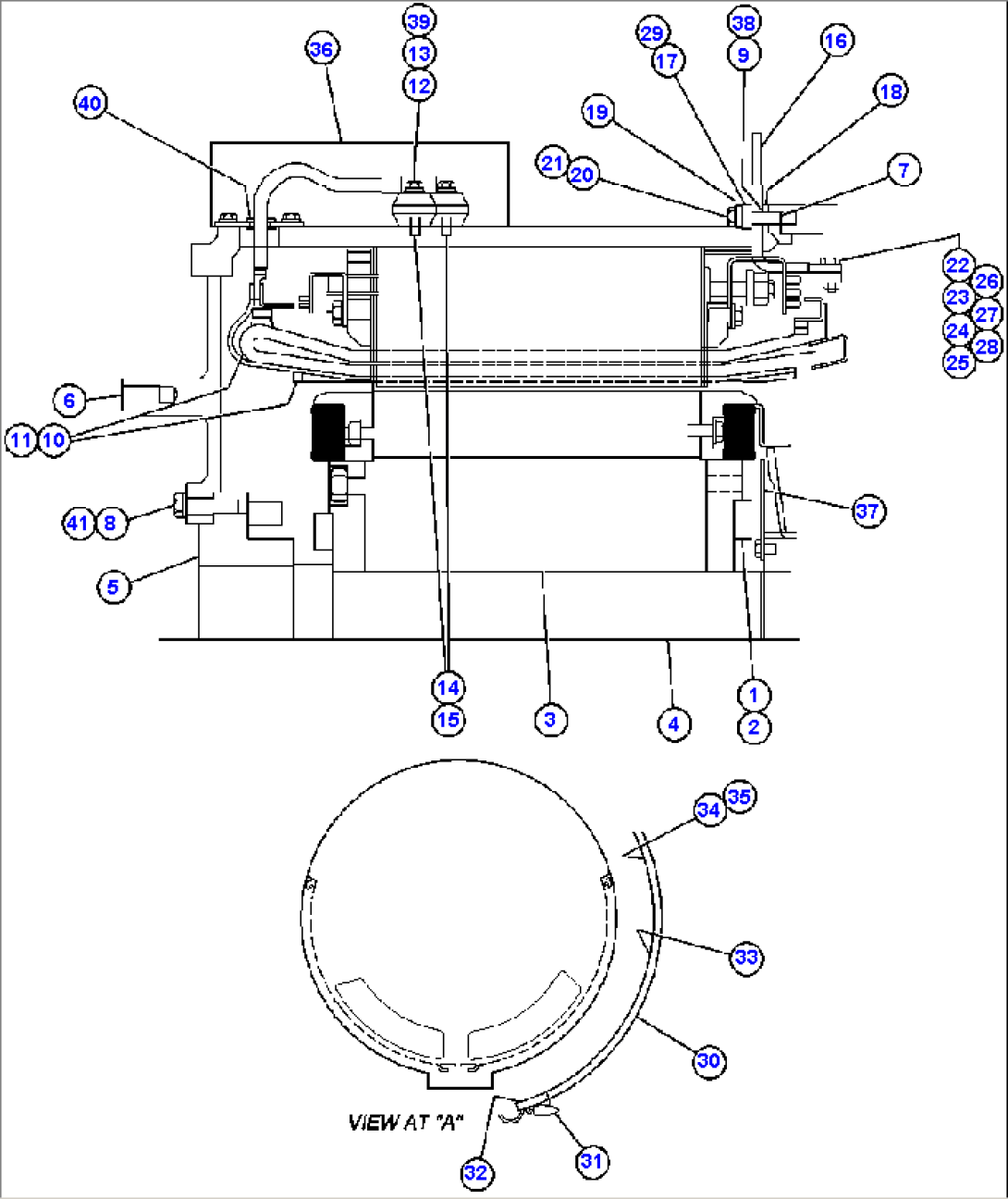

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | PC0152 | ALT/ BLOWER ASSEMBLY | ||
| 1 | VS8253 | WEIGHT | ||
| 2 | VJ1071 | BALANCE WEIGHT | ||
| 3 | BF3420 | ROTOR ASSEMBLY | ||
| 3 | VE2756 | ROTOR CORE | ||
| 4 | VS7314 | SHAFT ROTOR | ||
| 5 | VE0688 | END PLATE | ||
| 6 | BF3664 | ADAPTOR | ||
| 7 | VJ2743 | ROLLPIN - .50 X 1.38 | ||
| 8 | VJ1073 | CAPSCREW | ||
| 9 | VE4489 | BOLT, HEX HEAD | ||
| 10 | VE1884 | STATOR REWIND KIT | ||
| 11 | VE0163 | TERTIARY KIT | ||
| 12 | VJ3700 | NUT, HEX | ||
| 13 | VE4515 | WASHER | ||
| 14 | BF4178 | CEMENT | ||
| 15 | VS6813 | INSULATION STUD | ||
| 16 | BF1483 | TERMINAL ASSEMBLY | ||
| 17 | (NOT USED THIS APPLICATION) | |||
| 18 | BF2118 | BLOCK, CLAMP | ||
| 19 | BF0542 | PLATE, CABLE | ||
| 20 | VE4696 | LOCKWASHER | ||
| 21 | BF0543 | CAPSCREW - .31C X 2.5 G5 | ||
| 22 | VE4343 | WASHER | ||
| 23 | BF4178 | BOLT, HEX HEAD | ||
| 24 | BF4179 | NUT, HEX | ||
| 25 | VE3916 | PUTTY | ||
| 26 | VE4334 | TAPE | ||
| 27 | VE4335 | TAPE | ||
| 28 | VE7272 | SEALANT | ||
| 29 | VE7272 | SEALANT | ||
| 30 | VS7945 | COVER | ||
| 31 | VS7026 | LATCH COVER | ||
| 32 | VS7946 | GASKET COVER | ||
| 33 | VS7947 | GASKET COVER | ||
| 34 | VS7948 | GASKET COVER | ||
| 35 | VE3035 | PYTHON - #1062 | ||
| 36 | VS6838 | CONNECTION BOX | ||
| 37 | VJ6545 | SUPPORT | ||
| 38 | VE5185 | FLAT WASHER | ||
| 39 | VE8688 | LOCKWASHER | ||
| 40 | VE1200 | GROMMET | ||
| 41 | VE5184 | FLAT WASHER |
