| Item | Part No. | Part Name | Qty | Serial No. |

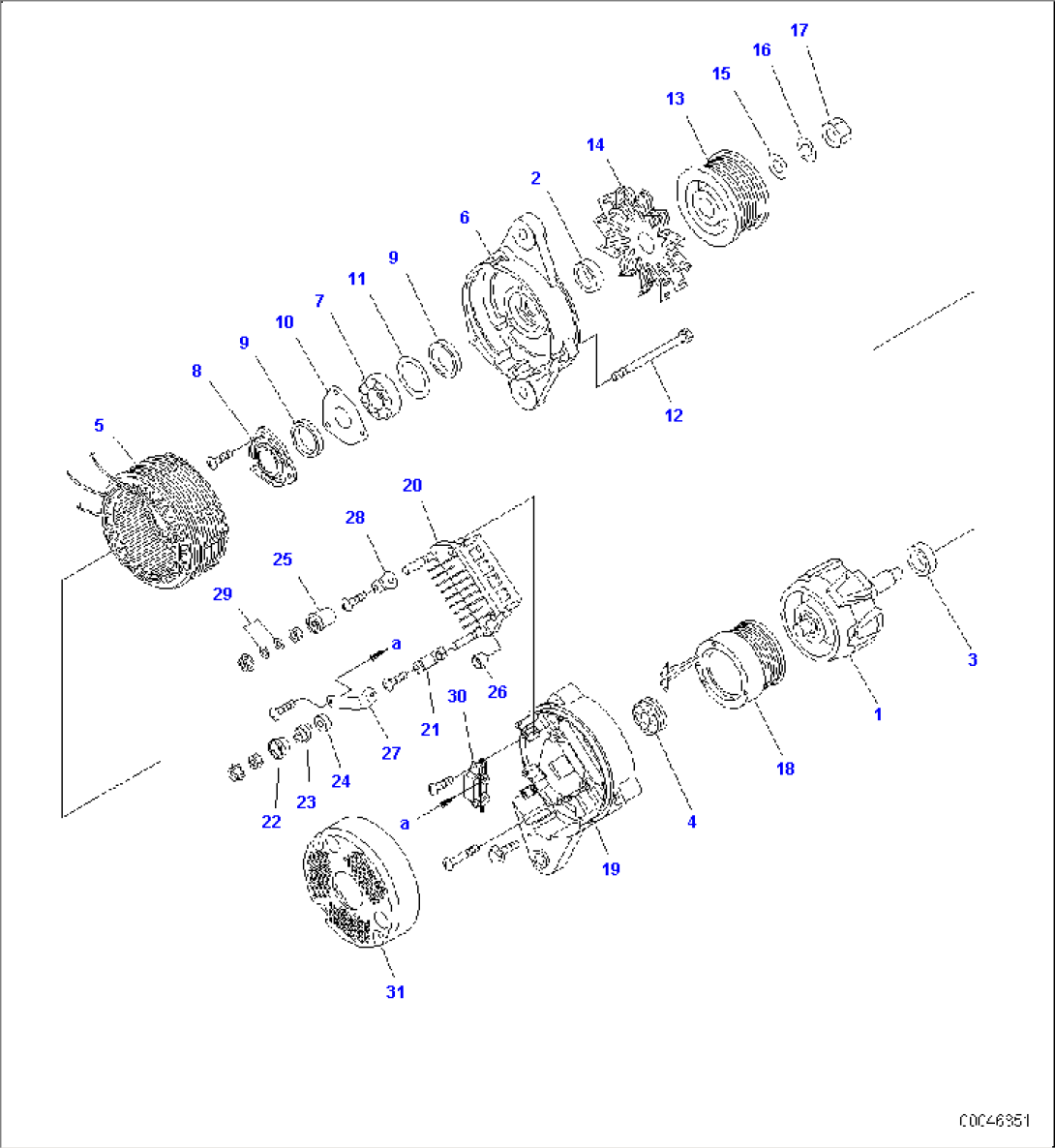

| 600-861-6110 | ALTERNATOR A. (60A) | 21628024- | ||
| 1 | KD0-35100-0300 | ROTOR ASSEMBLY | 21628024- | |
| 2 | KD1-33923-0790 | COLLAR | 21628024- | |
| 3 | KD1-35923-0160 | COLLAR | 21628024- | |
| 4 | KD0-09201-0980 | BEARING, BALL | 21628024- | |
| 5 | KD0-35200-0460 | STATOR ASSEMBLY | 21628024- | |
| 6 | KD0-35300-0350 | FRONT BRACKET ASSEMBLY | 21628024- | |
| 7 | KD0-09201-1140 | BEARING, BALL | 21628024- | |
| 8 | KD0-35926-0070 | RETAINER | 21628024- | |
| 9 | KD0-35951-0060 | PACKING | 21628024- | |
| 10 | KD0-35926-0090 | RETAINER | 21628024- | |
| 11 | KD1-33926-0730 | RETAINER | 21628024- | |
| 12 | KD0-0275-06802 | BOLT | 21628024- | |
| 13 | KD0-35411-0640 | PULLEY | 21628024- | |
| 14 | KD0-35421-0240 | FAN | 21628024- | |
| 15 | KD1-0330-16012 | WASHER, PLAIN | 21628024- | |
| 16 | KD1-0335-16002 | WASHER, SPRING | 21628024- | |
| 17 | KD0-0280-16022 | NUT | 21628024- | |
| 18 | KD0-35120-0290 | FIELD COIL | 21628024- | |
| KD0-35700-0950 | REAR BRACKET ASSEMBLY | 21628024- | ||
| 19 | KD0-35710-1150 | BRACKET, REAR | 21628024- | |
| 20 | KD0-35730-0700 | RECTIFIER ASSEMBLY | 21628024- | |
| 21 | KD0-09170-2501 | CONDENSER | 21628024- | |
| 22 | KD0-35943-0150 | BUSHING, INSULATE | 21628024- | |
| 23 | KD0-35923-0130 | COLLAR | 21628024- | |
| 24 | KD0-35943-0160 | BUSHING, INSULATE | 21628024- | |
| 25 | KD0-35943-0140 | BUSHING, INSULATE | 21628024- | |
| 26 | KD0-35943-0170 | BUSHING, INSULATE | 21628024- | |
| 27 | KD0-35784-0210 | BAR, CONNECT | 21628024- | |
| 28 | KD0-35784-0290 | BAR, PLATE | 21628024- | |
| 29 | KD0-09057-0220 | WASHER | 21628024- | |
| 30 | KD0-35719-0210 | REGULATOR ASSEMBLY | 21628024- | |
| 31 | KD0-35761-0250 | COVER | 21628024- |
