| Item | Part No. | Part Name | Qty | Serial No. |

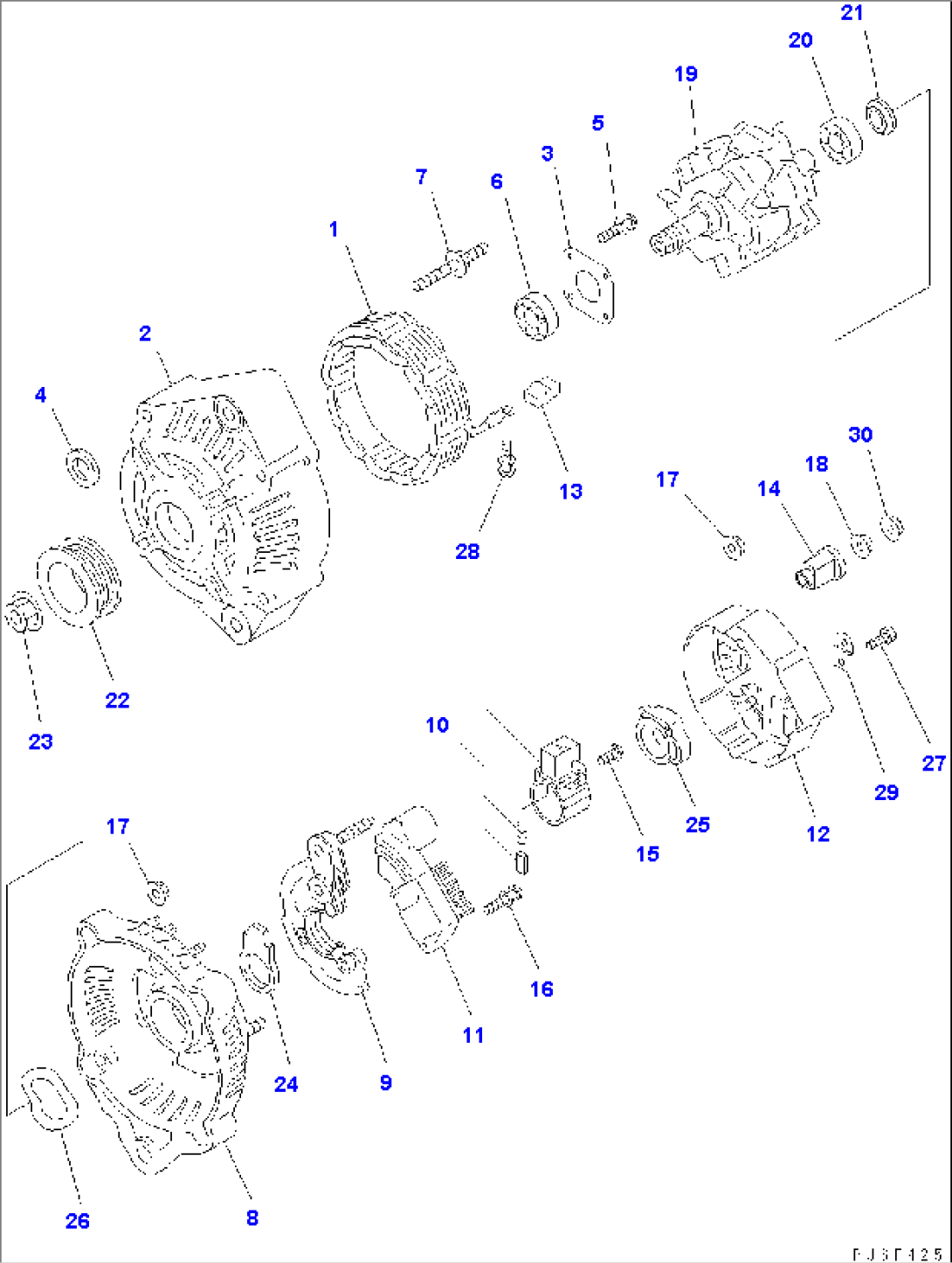

| 600-861-6420 | ALTERNATOR,DENSO 60A/24V | 21714812- | ||
| ND121400-0800 | FRAME ASSEMBLY | 21714812- | ||
| 1 | ND021100-4210 | STATOR ASSEMBLY | 21714812- | |
| 2 | ND021401-4980 | FRAME | 21714812- | |
| 3 | ND021411-0570 | PLATE | 21714812- | |
| 4 | ND021045-0530 | COLLAR | 21714812- | |
| 5 | ND949006-5590 | SCREW | 21714812- | |
| 6 | ND949100-5010 | BEARING | 21714812- | |
| 7 | ND949043-2000 | BOLT | 21714812- | |
| 8 | ND021501-8050 | FRAME{REAR} | 21714812- | |
| 9 | ND021580-4820 | HOLDER | 21714812- | |
| 10 | ND021620-2720 | BRUSH HOLDER ASSEMBLY | 21714812- | |
| 11 | ND126000-2320 | BRUSH HOLDER ASSEMBLY | 21714812- | |
| 12 | ND021551-2480 | COVER | 21714812- | |
| 13 | ND021605-1970 | BUSHING | 21714812- | |
| 14 | ND021605-2481 | BUSHING | 21714812- | |
| 15 | ND949006-5460 | SCREW | 21714812- | |
| 16 | ND91310-04251 | SCREW | 21714812- | |
| ND949007-5110 | SCREW | 21714812- | ||
| 17 | ND949056-2481 | NUT | 21714812- | |
| 18 | ND949056-3080 | NUT | 21714812- | |
| 19 | ND021200-8380 | ROTOR ASSEMBLY | 21714812- | |
| 20 | ND949100-2790 | BEARING | 21714812- | |
| 21 | ND021506-0070 | COVER | 21714812- | |
| 22 | ND021041-8620 | PULLEY | 21714812- | |
| 23 | ND949056-2520 | NUT | 21714812- | |
| 24 | ND021626-0190 | SEAL | 21714812- | |
| 25 | ND021626-0250 | SEAL | 21714812- | |
| 26 | ND021542-0160 | WASHER | 21714812- | |
| 27 | ND949006-6401 | SCREW | 21714812- | |
| 28 | ND949007-6280 | SCREW | 21714812- | |
| 29 | ND021602-5230 | PLATE | 21714812- | |
| 30 | ND92150-06061 | NUT | 21714812- |
