| Item | Part No. | Part Name | Qty | Serial No. |

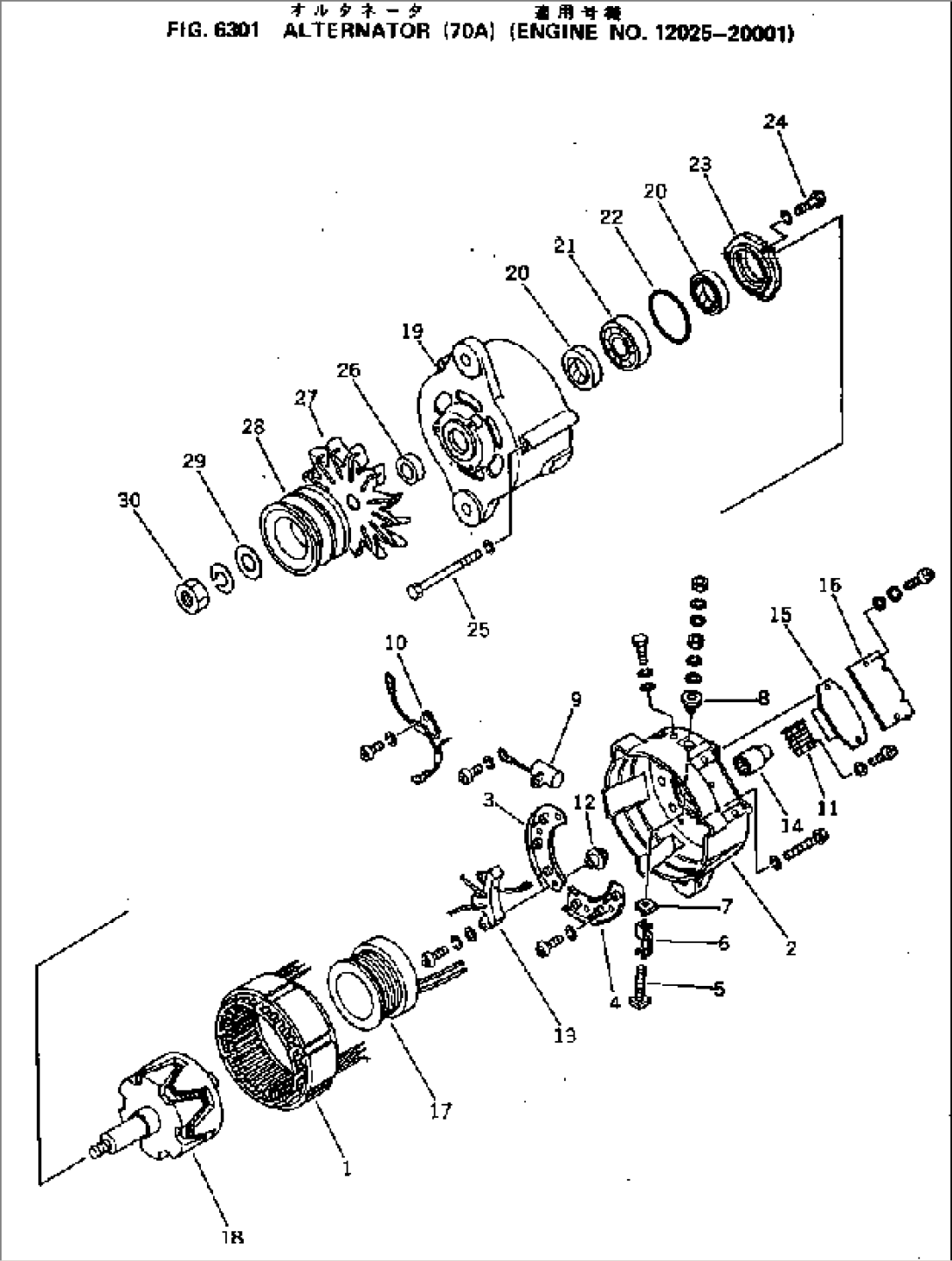

| 600-821-7120 | ALTERNATOR A.,(70A) | 12025-20001 | ||
| 1 | SD1211-407-00 | STATOR ASS'Y | 12025-20001 | |
| SD1230-189-01 | REAR BRACKET ASS'Y | 12025-20001 | ||
| 2 | SD2240-206-00 | BRACKET | 12025-20001 | |
| 3 | SD1235-043-10 | HEAT SINK ASS'Y | 12025-20001 | |
| 4 | SD1235-042-10 | HEAT SINK ASS'Y | 12025-20001 | |
| 5 | SD8140-050-301 | BOLT | 12025-20001 | |
| 6 | SD3220-400-00 | SUPPORT | 12025-20001 | |
| 7 | SD4215-008-00 | INSULATOR | 12025-20001 | |
| 8 | SD4041-057-00 | BUSHING | 12025-20001 | |
| 9 | SD6060-119-20 | CONDENSER | 12025-20001 | |
| 10 | SD1235-076-01 | RESISTOR ASS'Y | 12025-20001 | |
| 11 | SD1239-036-00 | CONNECTOR ASS'Y | 12025-20001 | |
| 12 | SD4041-037-00 | BUSHING | 12025-20001 | |
| 13 | SD1239-043-00 | CIRCUIT ASS'Y,CHARGE LAMP | 12025-20001 | |
| 14 | SD6206-002-00 | BEARING | 12025-20001 | |
| 15 | SD1291-004-00 | REGULATOR | 12025-20001 | |
| 16 | SD3221-232-20 | COVER | 12025-20001 | |
| 17 | SD1251-006-00 | COIL ASS'Y | 12025-20001 | |
| 18 | SD1221-167-00 | ROTOR ASS'Y | 12025-20001 | |
| SD1240-073-00 | FRONT BRACKET ASS'Y | 12025-20001 | ||
| 19 | SD2242-090-00 | BRACKET | 12025-20001 | |
| 20 | SD6410-020-00 | SEAL | 12025-20001 | |
| 21 | SD6206-003-20 | BEARING | 12025-20001 | |
| 22 | SD4142-009-00 | O-RING | 12025-20001 | |
| 23 | SD2202-022-00 | COVER | 12025-20001 | |
| 24 | SD5010-215-00 | BOLT | 12025-20001 | |
| 25 | SD5010-043-00 | BOLT | 12025-20001 | |
| 26 | SD3600-173-00 | COLLAR | 12025-20001 | |
| 27 | SD3448-004-40 | FAN | 12025-20001 | |
| 28 | SD2080-216-00 | PULLEY | 12025-20001 | |
| 29 | SD3000-078-00 | WASHER | 12025-20001 | |
| 30 | SD8264-183-001 | NUT | 12025-20001 |
