| Item | Part No. | Part Name | Qty | Serial No. |

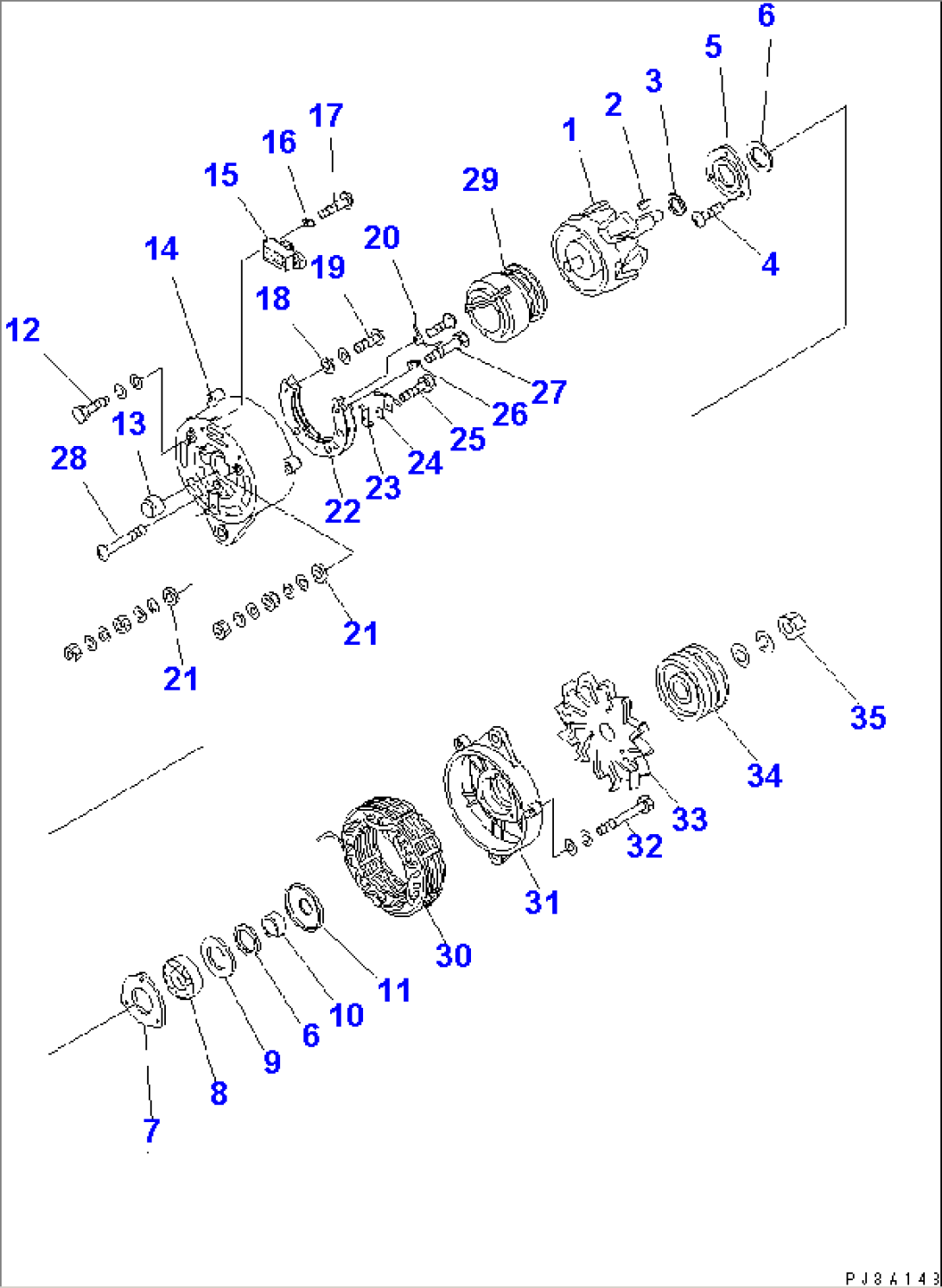

| 600-821-8340 | ALTERNATOR A. (35A) | 45475- | ||
| THE NIKKO DENKI PART NUMBER IS THAT KD IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| 1 | KD1-33100-1270 | ROTOR ASS'Y | 45475- | |
| 2 | KD1-0416-04160 | KEY | 45475- | |
| 3 | KD1-33923-0780 | COLLAR | 45475- | |
| 4 | KD1-0055-06162 | SCREW | 45475- | |
| 5 | KD1-33926-0740 | RETAINER | 45475- | |
| 6 | KD1-33951-0610 | PACKING | 45475- | |
| 7 | KD1-33926-0750 | RETAINER | 45475- | |
| 8 | KD1-0446-63057 | BEARING | 45475- | |
| 9 | KD1-33926-0730 | RETAINER | 45475- | |
| 10 | KD1-33923-0810 | COLLAR | 45475- | |
| 11 | KD1-33926-0770 | RETAINER | 45475- | |
| 12 | KD0-0080-05102 | BOLT | 45475- | |
| KD0-35700-0030 | REAR BRACKET ASS'Y | 45475- | ||
| 13 | KD0-09202-0070 | BEARING | 45475- | |
| 14 | KD0-33710-2870 | REAR BRACKET ASS'Y | 45475- | |
| 15 | KD7-44000-0907 | REGULATOR ASS'Y | 45475- | |
| 16 | KD1-33786-0420 | PLATE | 45475- | |
| 17 | KD0-0056-05162 | SCREW | 45475- | |
| 18 | KD1-09102-0010 | PLATE | 45475- | |
| 19 | KD0-0055-05252 | SCREW | 45475- | |
| 20 | KD1-0550-05013 | PLATE | 45475- | |
| 21 | KD1-33943-0770 | BUSHING | 45475- | |
| 22 | KD0-33730-2190 | RECTIFIER ASS'Y | 45475- | |
| 23 | KD1-33928-0230 | STOPPER | 45475- | |
| 24 | KD1-33943-0760 | BUSHING | 45475- | |
| 25 | KD0-0080-05502 | BOLT | 45475- | |
| 26 | KD1-33928-0220 | STOPPER | 45475- | |
| 27 | KD0-0080-05452 | BOLT | 45475- | |
| 28 | KD0-0056-05452 | SCREW | 45475- | |
| 29 | KD0-33120-0220 | FIELD COIL ASS'Y | 45475- | |
| 30 | KD1-33200-1230 | STATOR ASS'Y | 45475- | |
| 31 | KD1-33310-1060 | BRACKET,FRONT | 45475- | |
| 32 | KD0-0275-06852 | BOLT | 45475- | |
| 33 | KD1-35421-0510 | FAN | 45475- | |
| 34 | KD1-33411-2470 | PULLEY | 45475- | |
| 35 | KD0-0280-16022 | NUT | 45475- |
