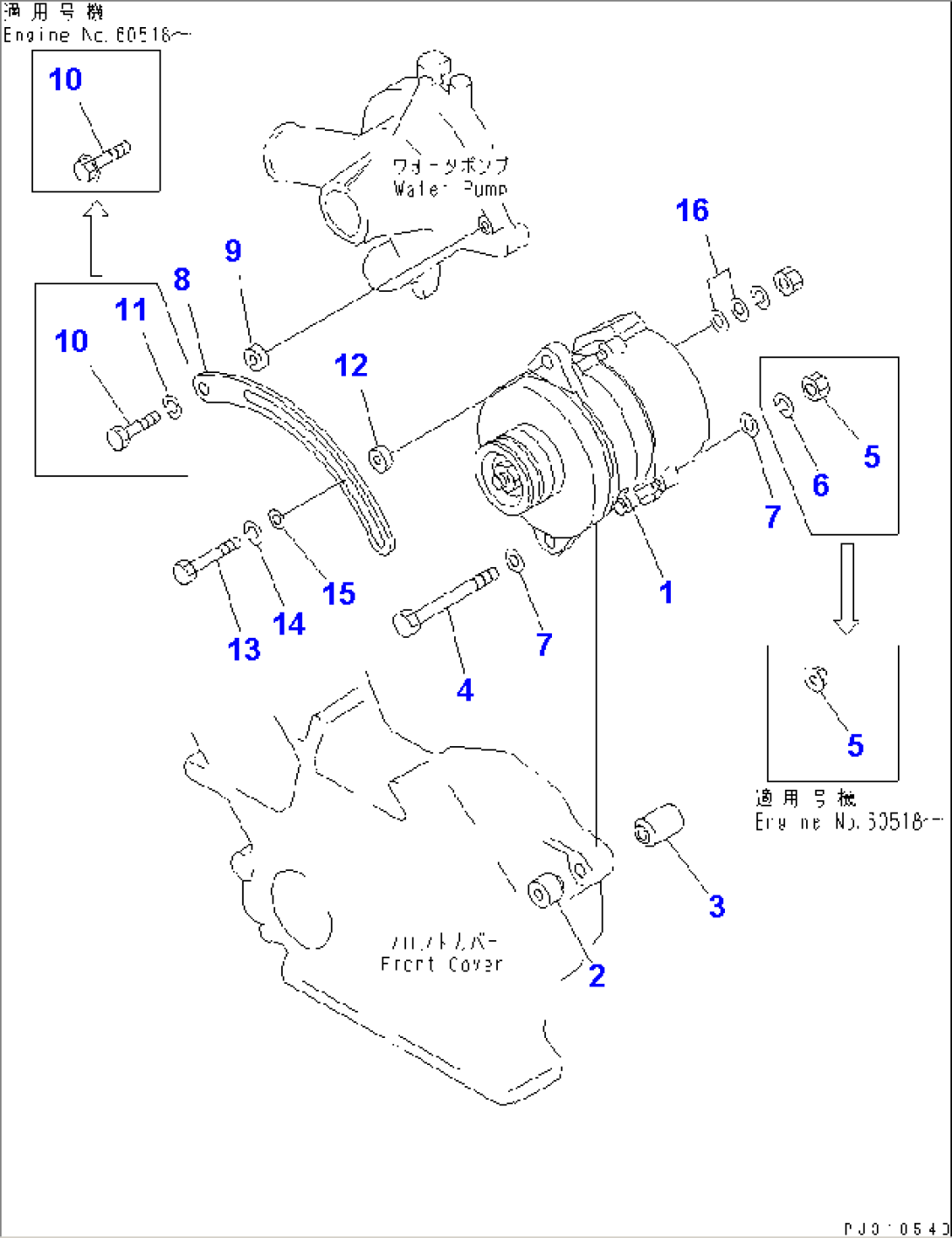

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (600-821-5630) | ALTERNATOR A. (25A),(SEE FIG.0642) | 54110- | |
| 2 | 6137-81-6860 | SPACER | 54110- | |
| 3 | 6137-81-6840 | SPACER | 54110- | |
| 4 | 6206-81-6920 | BOLT | 54110- | |
| 5 | 01584-01210 | NUT | 60518- | |
| 5 | \0\01580-01210 | NUT | 54110-60517 | |
| 6 | 01602-01236 | WASHER,SPRING | 54110-60517 | |
| 7 | 01640-21223 | WASHER | 54110- | |
| 8 | 6136-21-6723 | PLATE,ADJUST | 54110- | |
| 9 | 6136-21-6620 | SPACER | 54110- | |
| 10 | 01435-01040 | BOLT | 60518- | |
| 10 | \0\01010-31045 | BOLT | 54110-60517 | |
| 11 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 12 | 6136-21-6610 | SPACER | 54110- | |
| 13 | 01050-31235 | BOLT | 54110- | |
| 14 | 01602-01236 | WASHER,SPRING | 54110- | |
| 15 | 01643-31232 | WASHER | 54110- | |
| 16 | 154-06-36790 | WASHER | 54110- |
