| Item | Part No. | Part Name | Qty | Serial No. |

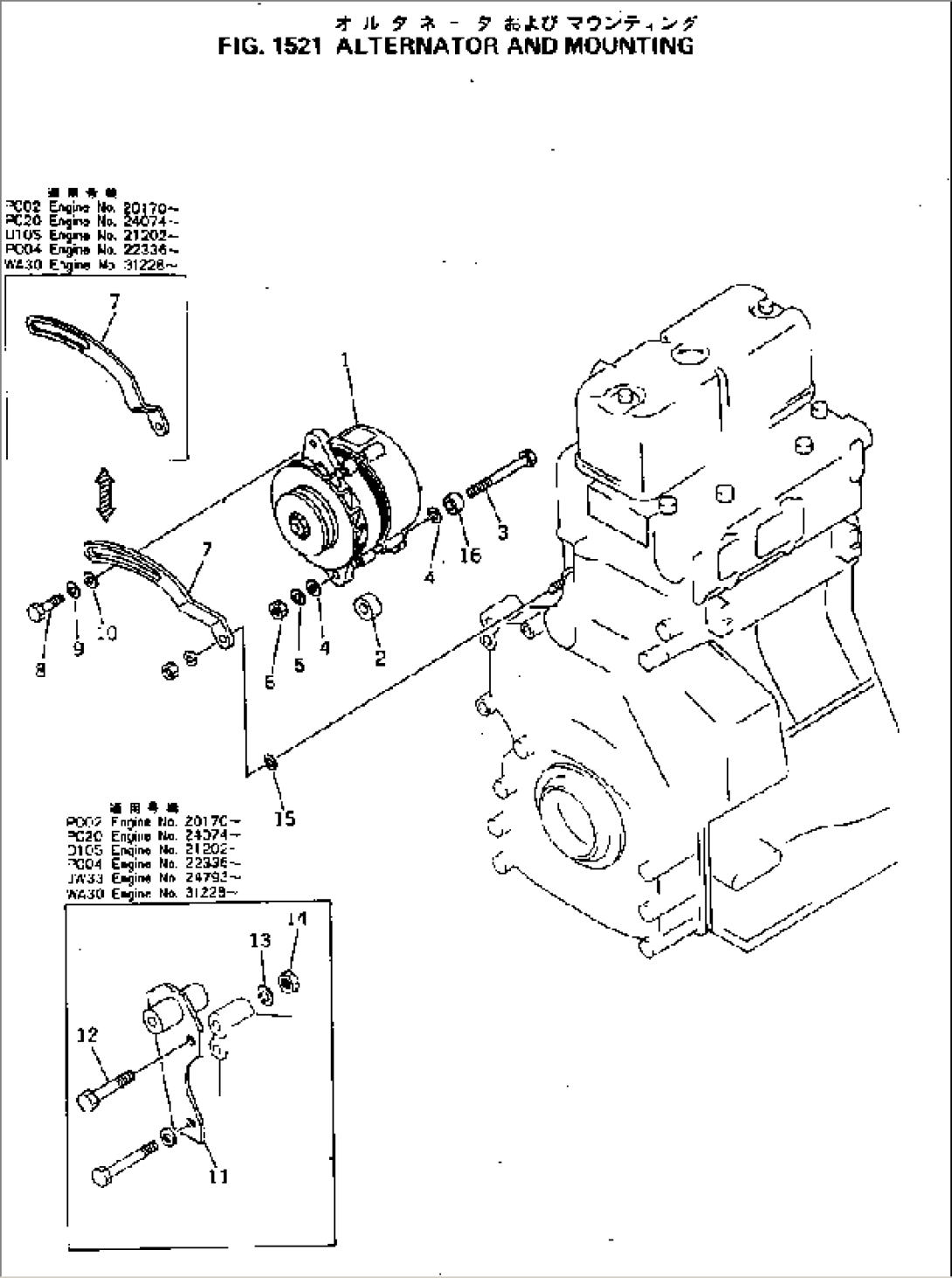

| 1 | (600-821-2330) | ALTERNATOR A.,(SEE FIG.1541A) | 23394- | |
| (600-821-2311) | ALTERNATOR A.,(SEE FIG.1541) | 20004-23393 | ||
| 2 | 6142-82-6550 | SPACER | 20004- | |
| 3 | 6140-11-8160 | BOLT | 20004- | |
| 4 | 01641-20812 | WASHER | 20004- | |
| 5 | 01602-00825 | WASHER,SPRING | 20004- | |
| 6 | 01580-00806 | NUT | 20004- | |
| 7 | 6142-82-6651 | PLATE,ADJUST | 26556- | |
| \3\6142-82-6650 | PLATE,ADJUST | 20004-26555 | ||
| (6142-82-6651{01640-20816)} | ||||
| 8 | 01010-30820 | BOLT | 20004- | |
| 9 | 01602-00825 | WASHER,SPRING | 20004- | |
| 10 | 01643-30823 | WASHER | 20004- | |
| 15 | 01640-20816 | WASHER | 26556- |
