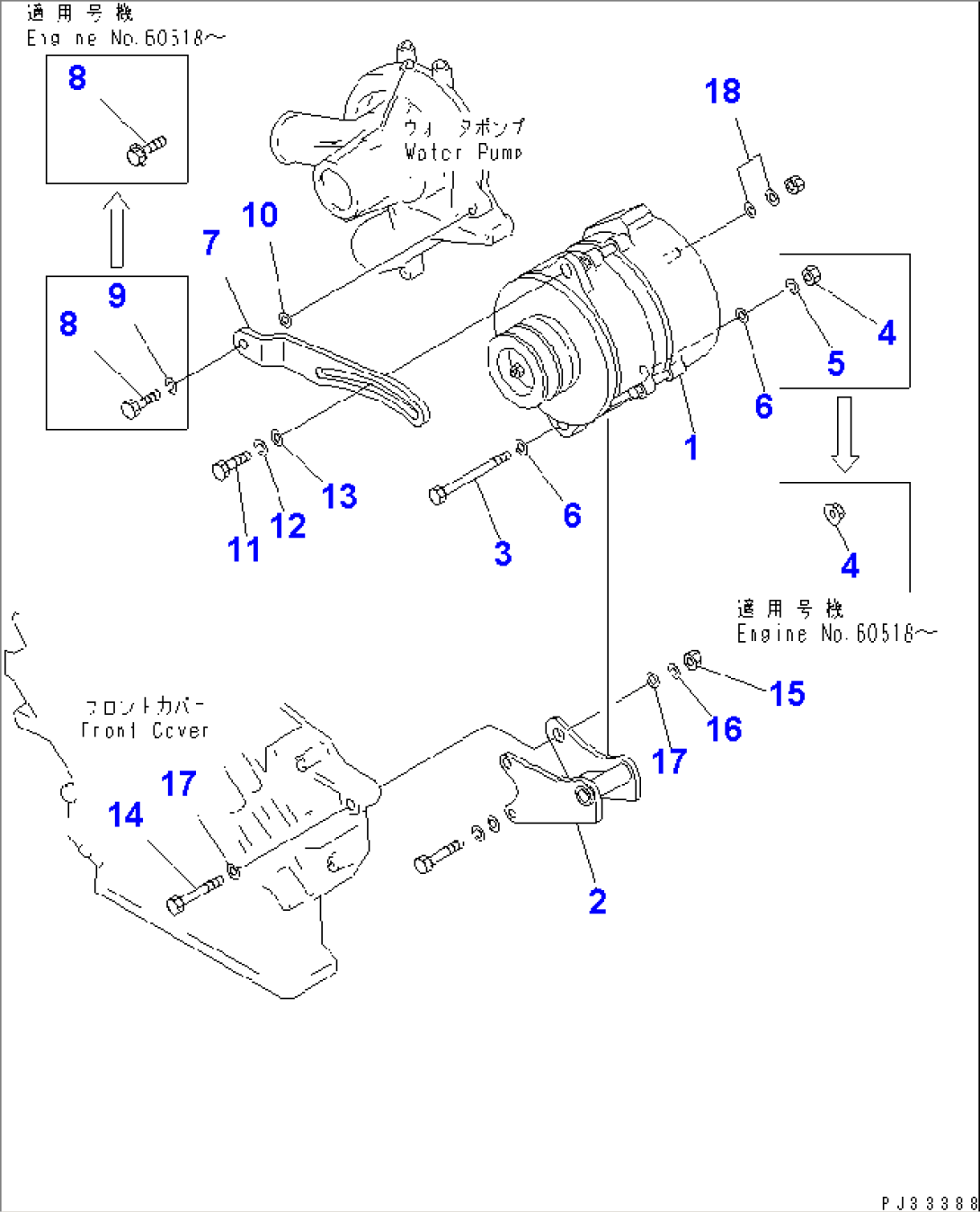

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (600-821-5630) | ALTERNATOR A. (25A),(SEE FIG.0642) | 54110- | |
| 2 | 6136-21-6360 | BRACKET | 54110- | |
| 3 | 6206-81-6920 | BOLT | 56644- | |
| 3 | \1\01019-01255 | BOLT | 54110-56643 | |
| 4 | 01584-01210 | NUT | 60518- | |
| 4 | 01580-01210 | NUT | 54110-60517 | |
| 5 | 01602-01236 | WASHER,SPRING | 54110-60517 | |
| 6 | 01640-21223 | WASHER | 54110- | |
| 7 | 6137-81-6720 | PLATE,ADJUST | 54110- | |
| 8 | 01435-01025 | BOLT | 60518- | |
| 8 | 01010-31025 | BOLT | 54110-60517 | |
| 9 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 10 | 01641-21223 | WASHER | 54110- | |
| 11 | 01050-31235 | BOLT | 54110- | |
| 12 | 01602-01236 | WASHER,SPRING | 54110- | |
| 13 | 01643-31232 | WASHER | 54110- | |
| 14 | 01010-31470 | BOLT | 54110- | |
| 15 | 01580-01411 | NUT | 54110- | |
| 16 | 01602-01442 | WASHER,SPRING | 54110- | |
| 17 | 01641-21423 | WASHER | 54110- | |
| 18 | 154-06-36790 | WASHER | 54110- |
