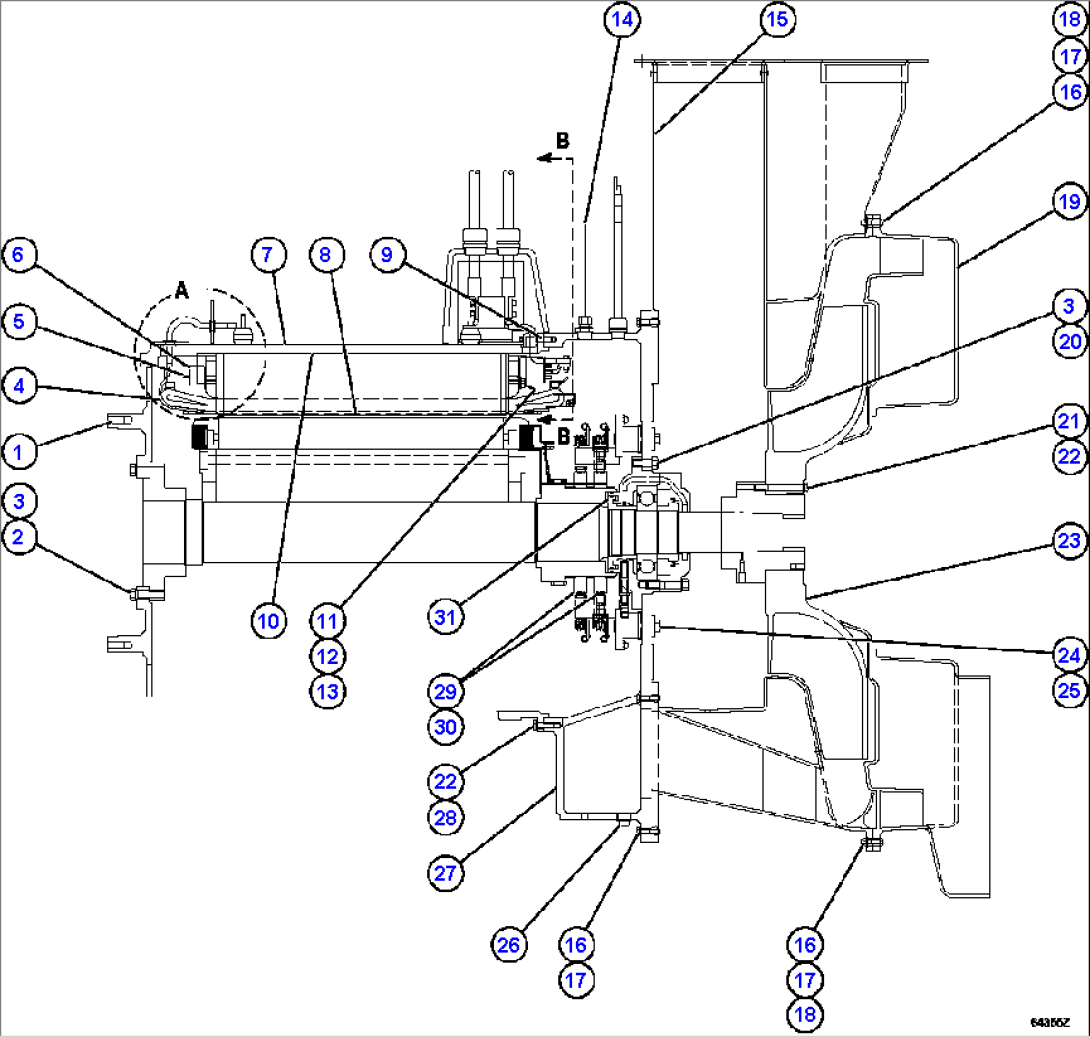

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA4446 | ADAPTER | | |
| 2 | VJ1073 | CAPSCREW - 5/8" - 18NF X 2 1/4" | | |
| 3 | VE5184 | FLAT WASHER - 5/8" | | |
| 4 | GE1167 | STATOR REWIND KIT (1) | | |
| 5 | VE1887 | STRAP, CONNECTION (1) | | |
| 6 | VE4342 | BRACKET, INSULATED (1) | | |
| 7 | XA3159 | STATOR ASSEMBLY (SEE INDEX) | | |
| 8 | XA4402 | ROTOR ASSEMBLY (SEE INDEX) | | |
| 9 | VJ2743 | ROLLPIN | | |
| 10 | XA3160 | STATOR FRAME & CORE ASSEMBLY (1) | | |
| 11 | VE2753 | BRACKET | | |
| 12 | VE4542 | CAPSCREW - 1/2" - 13NC X 1" (1) | | |
| 13 | VE5185 | FLAT WASHER - 1/2" (1) | | |
| 14 | GE0328 | CABLE ASSEMBLY (SPEED SENSOR) | | |
| 15 | XA4447 | HOUSING, INLET | | |
| 16 | VE4500 | CAPSCREW - 3/8" - 16NC X 1 3/4" | | |
| 17 | VE3027 | FLAT WASHER - 3/8" | | |
| 18 | TC1233 | NUT - 3/8" - 16NC | | |
| 19 | GE1081 | HOUSING, OUTLET | | |
| 20 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | | |
| 21 | VE4998 | CAPSCREW - 1/2" - 13NC X 4 1/2" | | |
| 22 | VE5185 | FLAT WASHER - 1/2" | | |
| 23 | GE1082 | IMPELLER | | |
| 24 | GE0141 | CAPSCREW - 5/8" - 11NC X 2 1/4" | | |
| 25 | VE4631 | FLAT WASHER - 5/8" | | |
| 26 | GE1172 | PLUG, PIPE - 1" | | |
| 26 | VJ9656 | LIQUID GASKET | | |
| 27 | GE1079 | HEAD, FRAME | | |
| 27 | GE0790 | LUBRIPLATE | | |
| 28 | VG8030 | CAPSCREW - 1/2" - 13NC X 1 1/2" | | |
| 29 | VE4034 | BRUSH, CARBON | | |
| 30 | VJ1024 | HOLDER, BRUSH (SEE INDEX) | | |
| 31 | VE7209 | SEAL, V-RING | | |
| NS|34 | | NOTE: (1) INCLUDED IN XA3159 STATOR ASSEMBLY. | | |
| NS|35 | | (SEE FOLLOWING PAGES FOR DETAIL A AND VIEW B-B.) | | |
