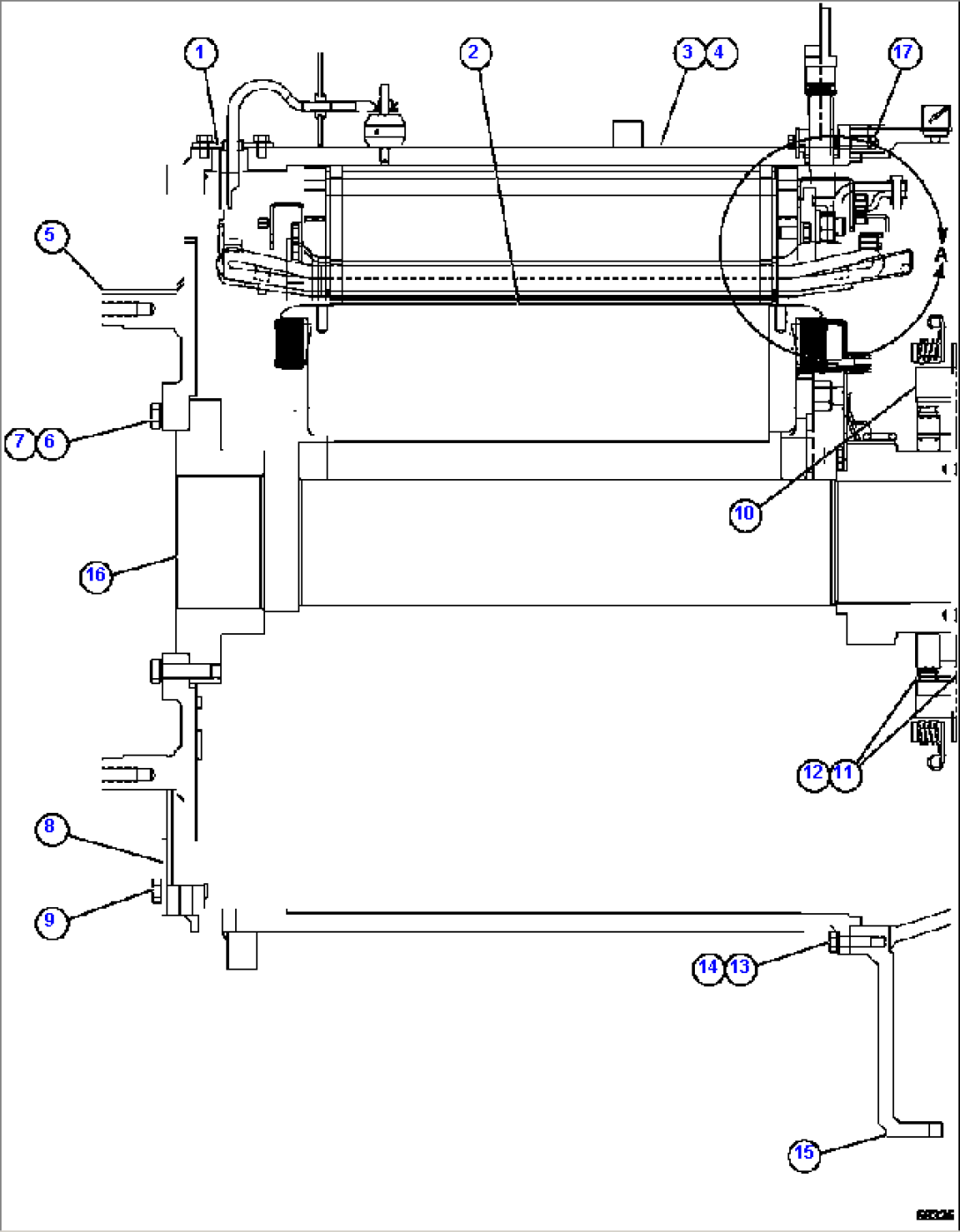

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF4833 | STRIP, BRAZING | ||
| 2 | 58D-98-01960 | ROTOR ASSEMBLY (SEE INDEX) | ||
| 3 | 58D-98-01950 | STATOR ASSEMBLY, TERTIARY COILS | ||
| 4 | 58D-98-01280 | STATOR ASSEMBLY, MAIN COILS | ||
| 5 | XA4446 | ADAPTER | ||
| 6 | VJ1073 | CAPCREW - 5/8" - 18NF X 2 1/4" | ||
| 7 | VE5184 | FLAT WASHER - 5/8" | ||
| 8 | XA4448 | SUPPORT ROTOR | ||
| 9 | VE4830 | CAPCREW - 3/8" - 11NC X 2" | ||
| 10 | VJ1028 | SUPPORT | ||
| 11 | VE8444 | BRUSH, CARBON (1) | ||
| 12 | VJ1024 | HOLDER, BRUSH (SEE INDEX) | ||
| 13 | 58D-98-01370 | CAPCREW - 1/2" - 18NF X 1 1/2" | ||
| 14 | VE5185 | FLAT WASHER - 1/2" | ||
| 15 | 58D-98-01340 | HEAD, FRAME | ||
| 16 | VE5092 | CORE, STATOR | ||
| 17 | VJ2743 | PIN, SPRING DOWEL | ||
| NS|18 | 58D-MA-AK010 | NOTE: (1) INCLUDED IN 58D-MA-AK010 ALTERNATOR OVERHAUL KIT. |
