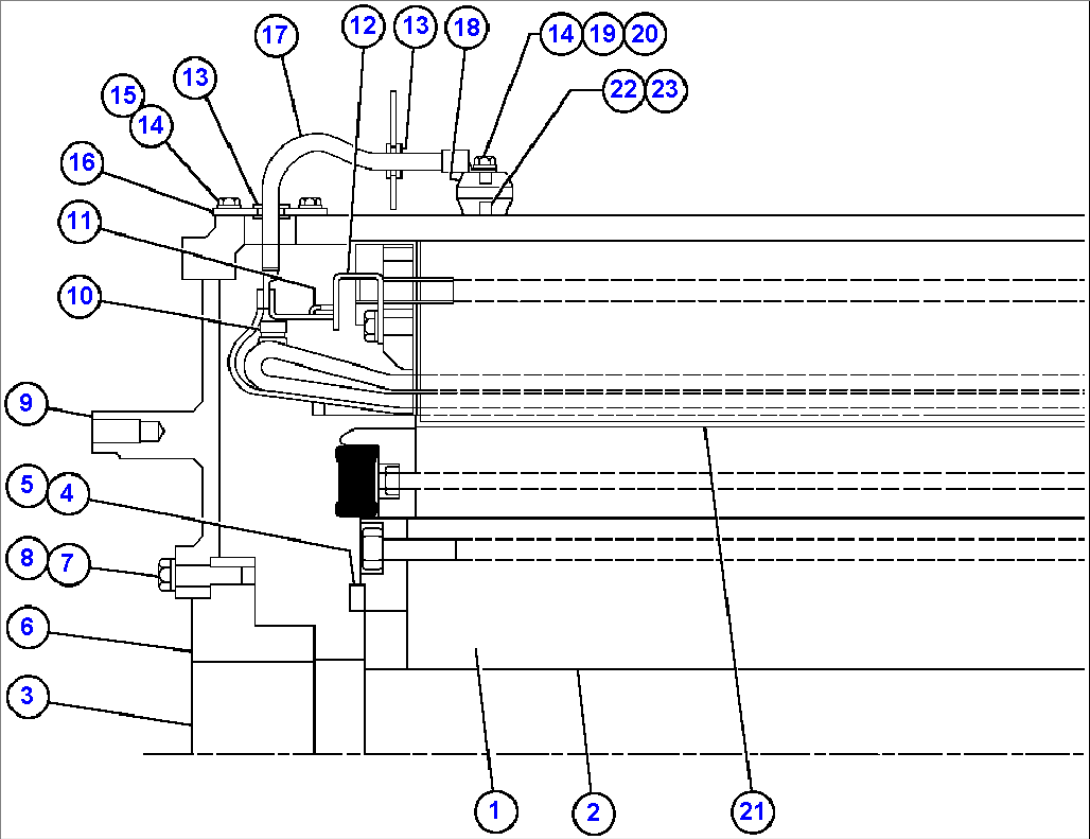

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE4251 | ROTOR CORE/SHAFT (SEE INDEX) | ||
| 2 | VE8253 | CORE | ||
| 3 | BF1772 | SHAFT | ||
| 4 | VS8253 | WEIGHT | ||
| 5 | VJ1071 | WEIGHT, BALANCE | ||
| 6 | VE0688 | PLATE, SHAFT END | ||
| 7 | VE5184 | FLAT WASHER - 5/8" | ||
| 8 | VN7649 | CAPSCREW - 5/8" - 18NF X 2 1/4" | ||
| 9 | BF1841 | ADAPTOR | ||
| 10 | GE0320 | RING, TIE INSULATED | ||
| 11 | VE1887 | STRAP, CONNECTION | ||
| 12 | VE4342 | BRACKET | ||
| 13 | VE1200 | GROMMET | ||
| 14 | VE4687 | LOCKWASHER - 3/8" | ||
| 15 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 16 | GE0324 | COVER | ||
| 17 | VS6837 | CABLE, TERTIARY | ||
| 17 | BF0928 | MARKER, CABLE - T15 | ||
| 17 | BF0929 | MARKER, CABLE - T16 | ||
| 18 | VE4750 | INSULATOR | ||
| 19 | TC1233 | NUT - 3/8" | ||
| 20 | VE4515 | FLAT WASHER - 3/8" | ||
| 21 | GE0314 | COIL, ROTOR | ||
| 22 | VS6813 | STUD, INSULATED | ||
| 23 | VE4752 | CEMENT | ||
| 23 | NOTE = NS (NOT SHOWN) | |||
| 23 | BF1218 | TYRAP |
