| Item | Part No. | Part Name | Qty | Serial No. |

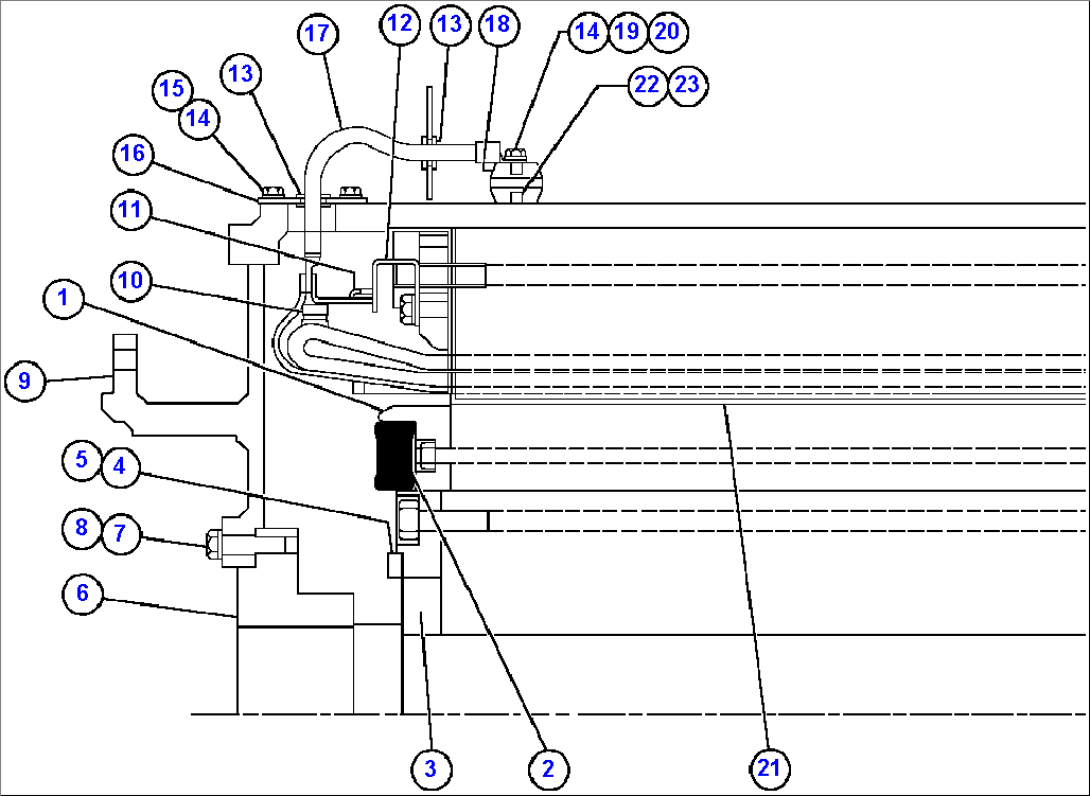

| 1 | BF4609 | ROTOR ASSEMBLY (SEE FIG 64133E) | ||
| 2 | GE0404 | ROTOR ASSEMBLY LESS BEARING | ||
| 3 | VE4251 | ROTOR ASSEMBLY WITH SHAFT | ||
| 4 | VS8253 | WEIGHT | ||
| 5 | VJ1071 | WEIGHT, BALANCE | ||
| 6 | VE0688 | PLATE, SHAFT END | ||
| 7 | VE5184 | FLAT WASHER - 5/8" | ||
| 8 | VN7649 | CAPSCREW - 5/8" - 18NF X 2 1/4" G8 | ||
| 9 | BF3664 | ADAPTOR | ||
| 10 | GE0320 | RING, TIE - INSULATED | ||
| 11 | VE1887 | STRAP, CONNECTION | ||
| 12 | VE4342 | BRACKET | ||
| 13 | VE1200 | GROMMET | ||
| 14 | VE4687 | LOCKWASHER - 3/8" | ||
| 15 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 16 | GE0324 | COVER | ||
| 17 | VS6837 | CABLE, TERTIARY | ||
| 17 | BF4053 | MARKER, CABLE - T15 | ||
| 17 | BF4054 | MARKER, CABLE - T16 | ||
| 18 | VE4750 | INSULATOR | ||
| 19 | TC1233 | NUT - 3/8" | ||
| 20 | VE4515 | FLAT WASHER - 3/8" | ||
| 21 | GE0314 | COIL, ROTOR | ||
| 22 | VS6813 | STUD, INSULATED | ||
| 23 | VE4752 | CEMENT |
