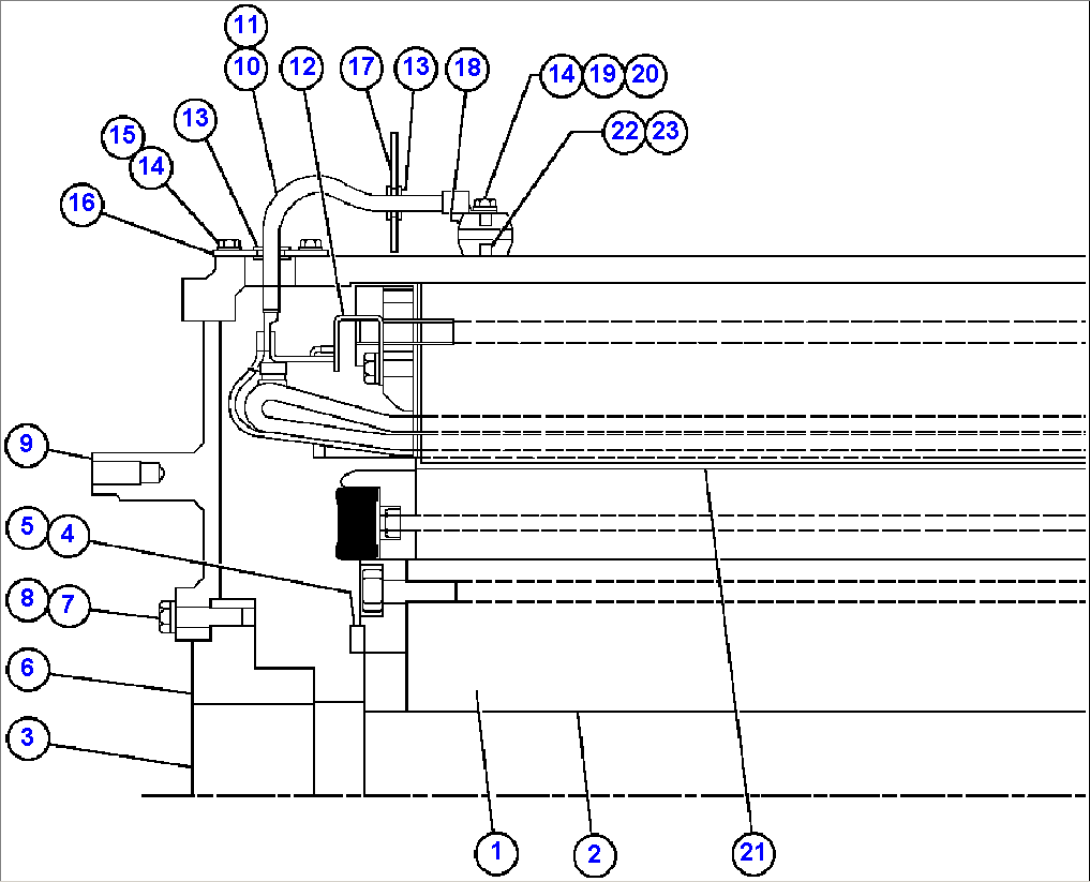

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE4251 | ROTOR CORE W/SHAFT (1) | ||
| 2 | VE7006 | CORE (1) | ||
| 3 | BF1772 | SHAFT (1) | ||
| 4 | VS8253 | WEIGHT, BALANCE (1) | ||
| 5 | VJ1071 | WEIGHT, BALANCE (1) | ||
| 6 | VE0688 | PLATE, SHAFT END (1) | ||
| 7 | VE5184 | FLAT WASHER - 5/8" | ||
| 8 | VJ1073 | CAPSCREW - 5/8" - 18NF X 2 1/4" | ||
| 9 | GE0789 | ADAPTOR | ||
| 10 | GE0329 | CABLE, TERTIARY | ||
| 10 | GE0330 | CABLE, TERTIARY | ||
| 11 | VE4628 | MARKER, CABLE - F2 | ||
| 11 | VE4629 | MARKER, CABLE - F1 | ||
| 12 | VE4342 | BRACKET, INSULATED (2) | ||
| 13 | VE1200 | GROMMET, RUBBER | ||
| 14 | VE4687 | LOCKWASHER - 3/8" | ||
| 15 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 16 | GE0324 | COVER | ||
| 17 | GE0325 | PLATE, FRONT | ||
| 18 | VE4750 | INSULATOR | ||
| 19 | TC1233 | NUT - 3/8" - 16NC | ||
| 20 | VE4515 | FLAT WASHER - 3/8" | ||
| 21 | BF4609 | ROTOR ASSEMBLY (SEE INDEX) | ||
| 22 | VS6813 | STUD, INSULATED | ||
| 23 | VE4752 | CEMENT | ||
| NS|26 | NOTE: NS = NOT SHOWN | |||
| NS|27 | VE2764 | WASHER, CONCAVE - 1/4" | ||
| NS|28 | NOTE: (1) INCLUDED IN BF4609 ROTOR ASSEMBLY. | |||
| NS|29 | (2) INCLUDED IN GE0456 STATOR ASSEMBLY. |
