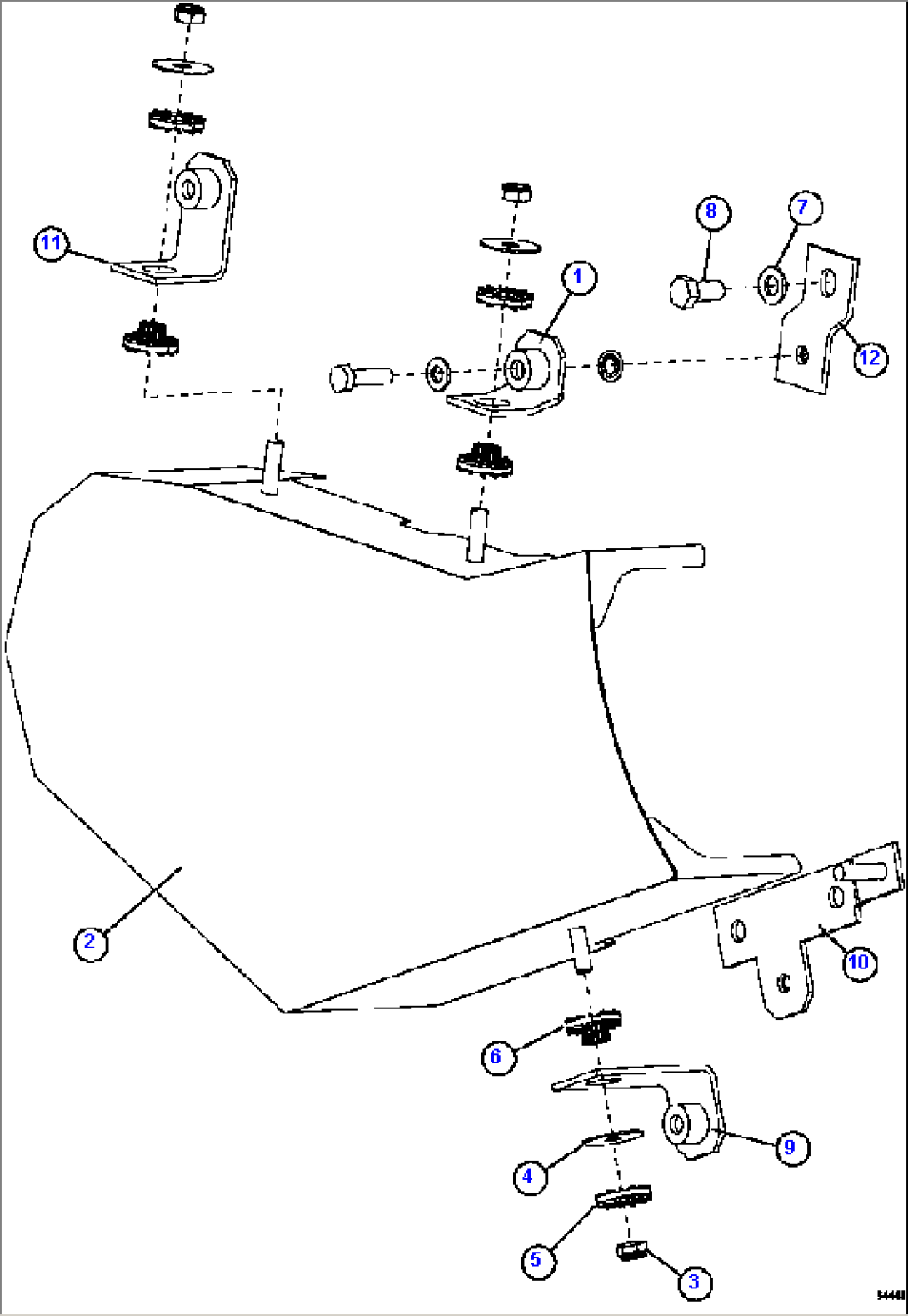

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 58E-08-00090 | BRACKET, ALTERNATOR GUARD | ||
| 2 | 58E-08-00460 | GUARD ALTERNATOR | ||
| 3 | PC3046 | LOCKNUT - M10 X 1.50 | ||
| 4 | PC3047 | WASHER - M10 | ||
| 5 | PC3048 | ISOLATOR | ||
| 6 | PC3049 | ISOLATOR | ||
| 7 | MM0462 | FLAT WASHER - M12 | ||
| 8 | MM0617 | CAPSCREW - M12 X 1.75 X 25 | ||
| 9 | 58E-08-00580 | BRACKET, ALTERNATOR GUARD | ||
| 10 | 58E-08-00590 | BRACKET, MOUNTING | ||
| 11 | 58E-08-00600 | BRACKET, ALTERNATOR GUARD | ||
| 12 | 58E-08-00610 | BRACKET, MOUNTING |
