| Item | Part No. | Part Name | Qty | Serial No. |

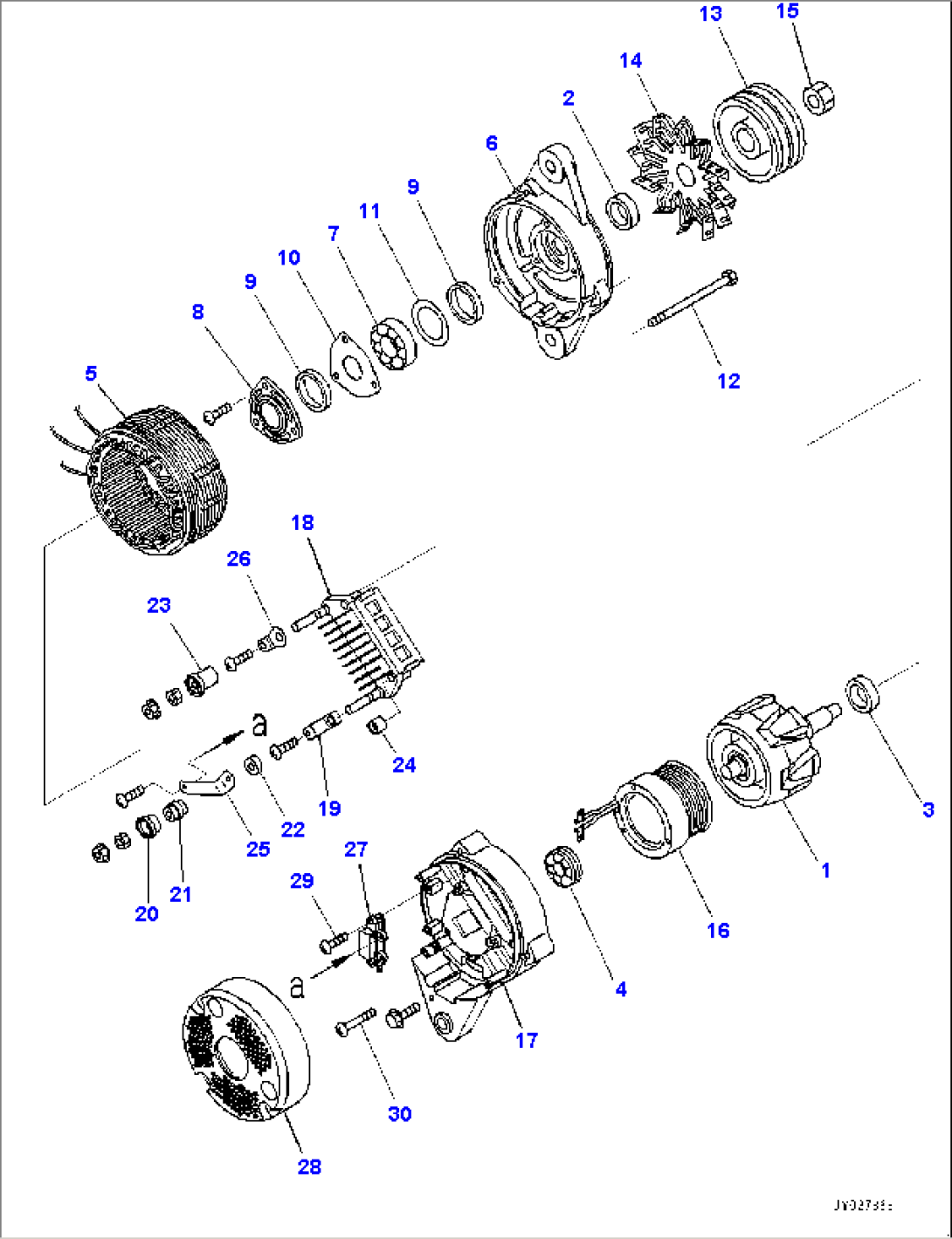

| 600-825-5221 | Alternator, 50Amp. | 573886- | ||
| 1 | KD0-35100-0418 | Rotor Assembly | 573886- | |
| 2 | KD1-35923-0240 | Collar | 573886- | |
| 3 | KD0-35923-0160 | Collar | 573886- | |
| 4 | KD0-09201-0980 | Bearing, Ball | 573886- | |
| 5 | KD0-35200-0528 | Stator Assembly | 573886- | |
| 6 | KD0-35300-0450 | Bracket Assembly | 573886- | |
| 7 | KD0-09201-1450 | Bearing | 573886- | |
| 8 | KD0-35926-0070 | Retainer | 573886- | |
| 9 | KD0-35951-0060 | Packing | 573886- | |
| 10 | KD0-35926-0090 | Retainer | 573886- | |
| 11 | KD1-33926-0730 | Retainer | 573886- | |
| 12 | KD0-0275-06802 | Bolt | 573886- | |
| 13 | KD0-35411-0758 | Pulley | 573886- | |
| 14 | KD0-35421-0170 | Fan | 573886- | |
| 15 | KD0-09006-0730 | Nut | 573886- | |
| 16 | KD0-35120-0528 | Coil, Field | 573886- | |
| 16 | KD0-35700-1160 | Bracket Assembly | 573886- | |
| 17 | KD0-35710-1350 | Bracket | 573886- | |
| 18 | KD0-35730-0510 | Rectifier Assembly | 573886- | |
| 19 | KD0-09170-2501 | Condenser | 573886- | |
| 20 | KD0-35943-0154 | Bushing | 573886- | |
| 21 | KD0-35923-0134 | Collar | 573886- | |
| 22 | KD0-35943-0160 | Bushing | 573886- | |
| 23 | KD0-35943-0140 | Bushing | 573886- | |
| 24 | KD0-35943-0170 | Bushing | 573886- | |
| 25 | KD0-35784-0210 | Bar | 573886- | |
| 26 | KD0-35784-0290 | Bar, Plate | 573886- | |
| 27 | KD0-35719-0201 | Regulator Assembly | 573886- | |
| 28 | KD0-35791-0318 | Cover | 573886- | |
| 29 | KD0-09011-3540 | Screw | 573886- | |
| 30 | KD0-0056-05302 | Screw | 573886- |
