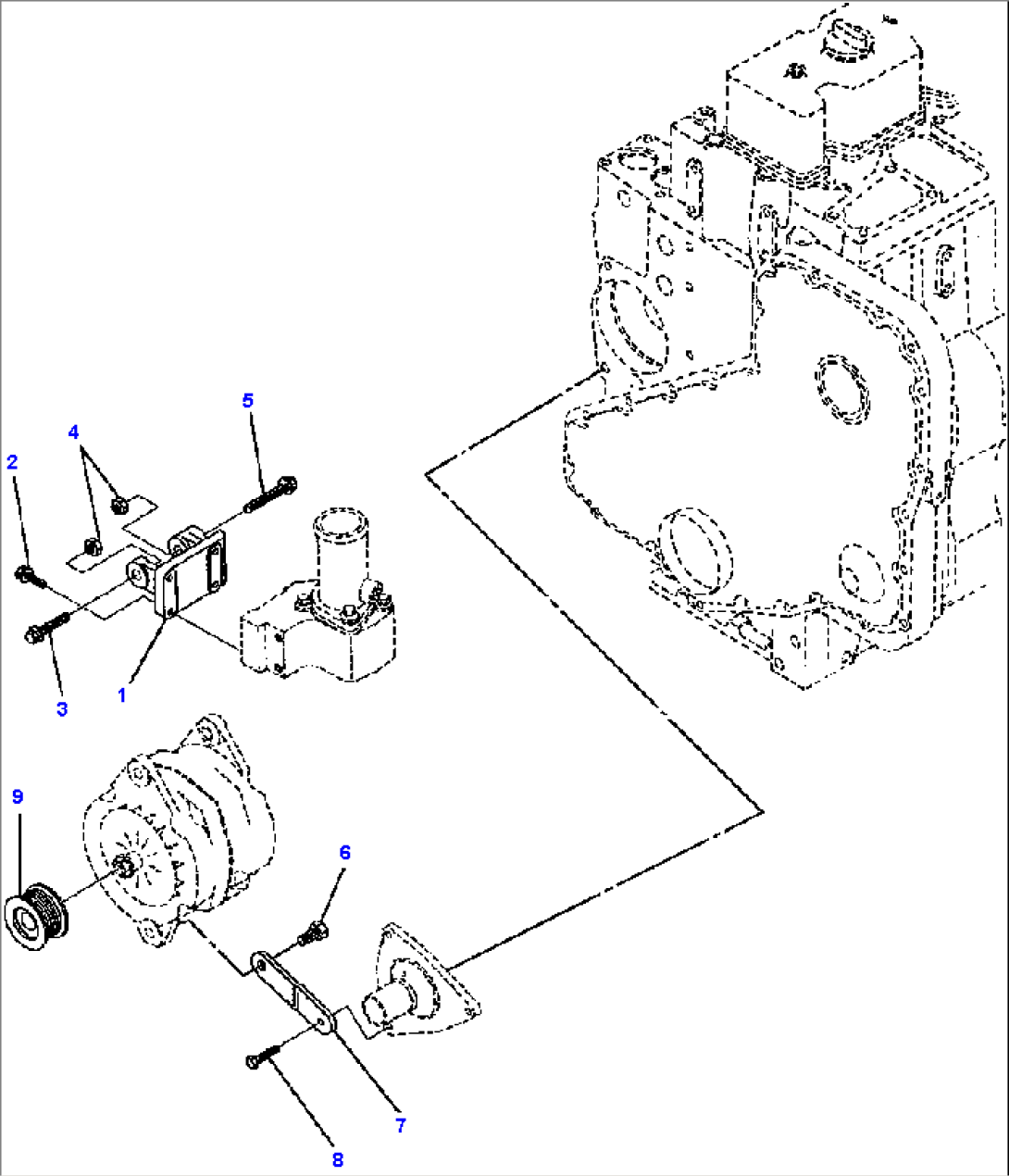

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1241 147 H1 | SUPPORT, ALTERNATOR | ||
| 2 | 1240 142 H1 | BOLT | ||
| 3 | 1241 110 H1 | BOLT | ||
| 4 | 1240 620 H1 | NUT, HEX | ||
| 5 | 1241 108 H1 | BOLT | ||
| 6 | 1240 087 H1 | BOLT | ||
| 7 | 1241 148 H1 | BRACE, ALTERNATOR | ||
| 8 | 1240 145 H1 | BOLT | ||
| 9 | 1294 330 H1 | PULLEY, ALTERNATOR |
