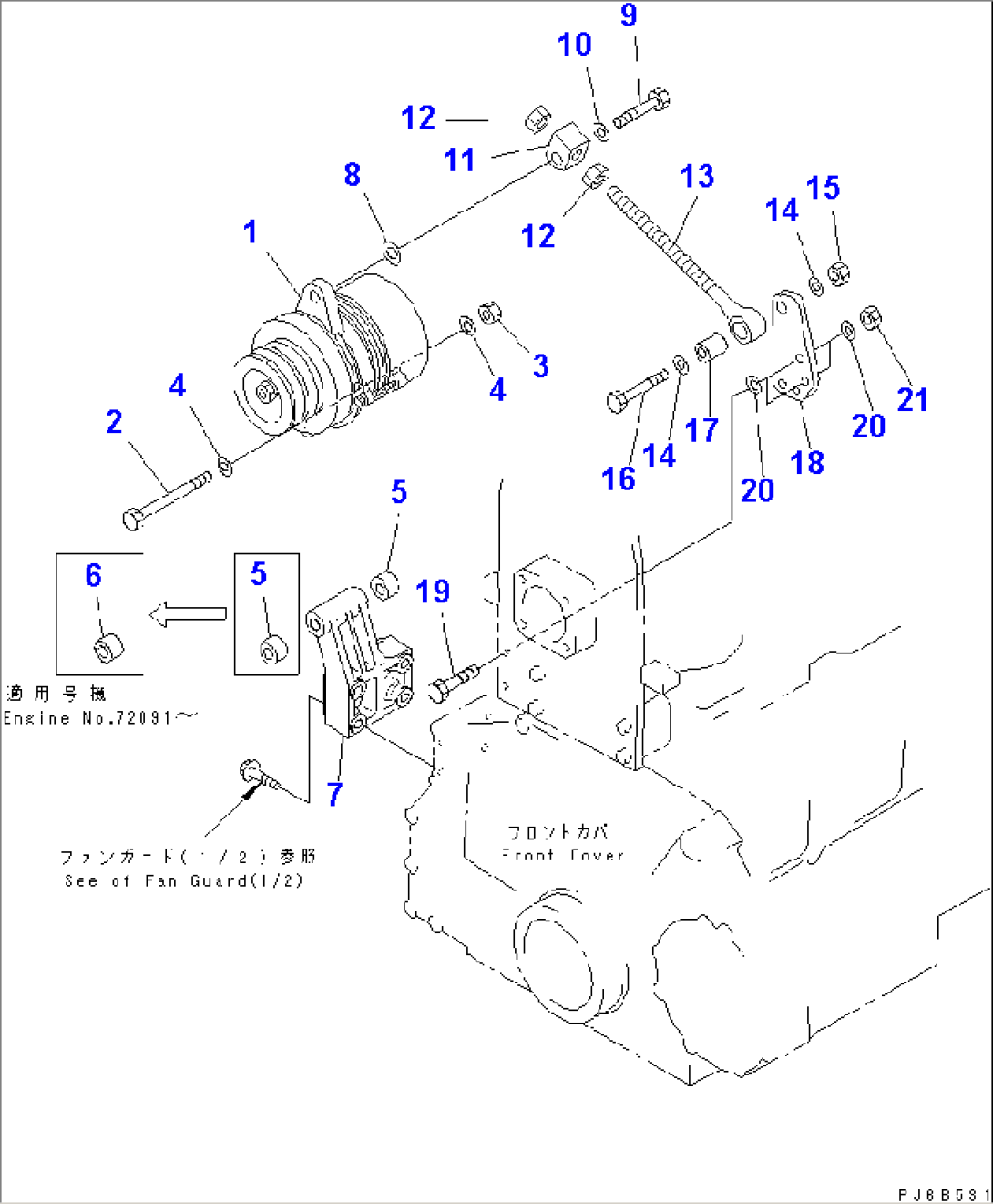

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (600-825-3151) | ALTERNATOR A. (35A),(SEE FIG.A6010-B3J4) | 66749- | |
| 1 | (\0\600-825-3150) | ALTERNATOR A. (35A),(SEE FIG.A6010-B3J4) | 64065-66748 | |
| 2 | 6128-21-6780 | BOLT | 64065- | |
| 3 | 02205-10812 | NUT | 64065- | |
| 4 | 01640-21323 | WASHER | 64065- | |
| 5 | 560-43-12470 | SPACER | 72091- | |
| 5 | 560-43-12470 | SPACER | 64065-72090 | |
| 6 | 203-937-7890 | COLLAR | 72091- | |
| 7 | 6150-81-6470 | BRACKET | 64065- | |
| 8 | 01643-31445 | WASHER | 64065- | |
| 9 | 01050-31255 | BOLT | 64065- | |
| 10 | 01640-21223 | WASHER | 64065- | |
| 11 | 6150-82-8690 | PLATE | 64065- | |
| 12 | 01580-11411 | NUT | 64065- | |
| 13 | 6150-82-8610 | ROD | 64065- | |
| 14 | 01643-31232 | WASHER | 64065- | |
| 15 | 01580-11210 | NUT | 64065- | |
| 16 | 01010-81255 | BOLT | 64065- | |
| 17 | 6215-81-6150 | PIN | 64065- | |
| 18 | 6150-82-8650 | PLATE | 64065- | |
| 19 | 01010-81045 | BOLT | 64065- | |
| 20 | 01643-31032 | WASHER | 64065- | |
| 21 | 01580-01008 | NUT | 64065- |
